S-472CS - 3.13" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

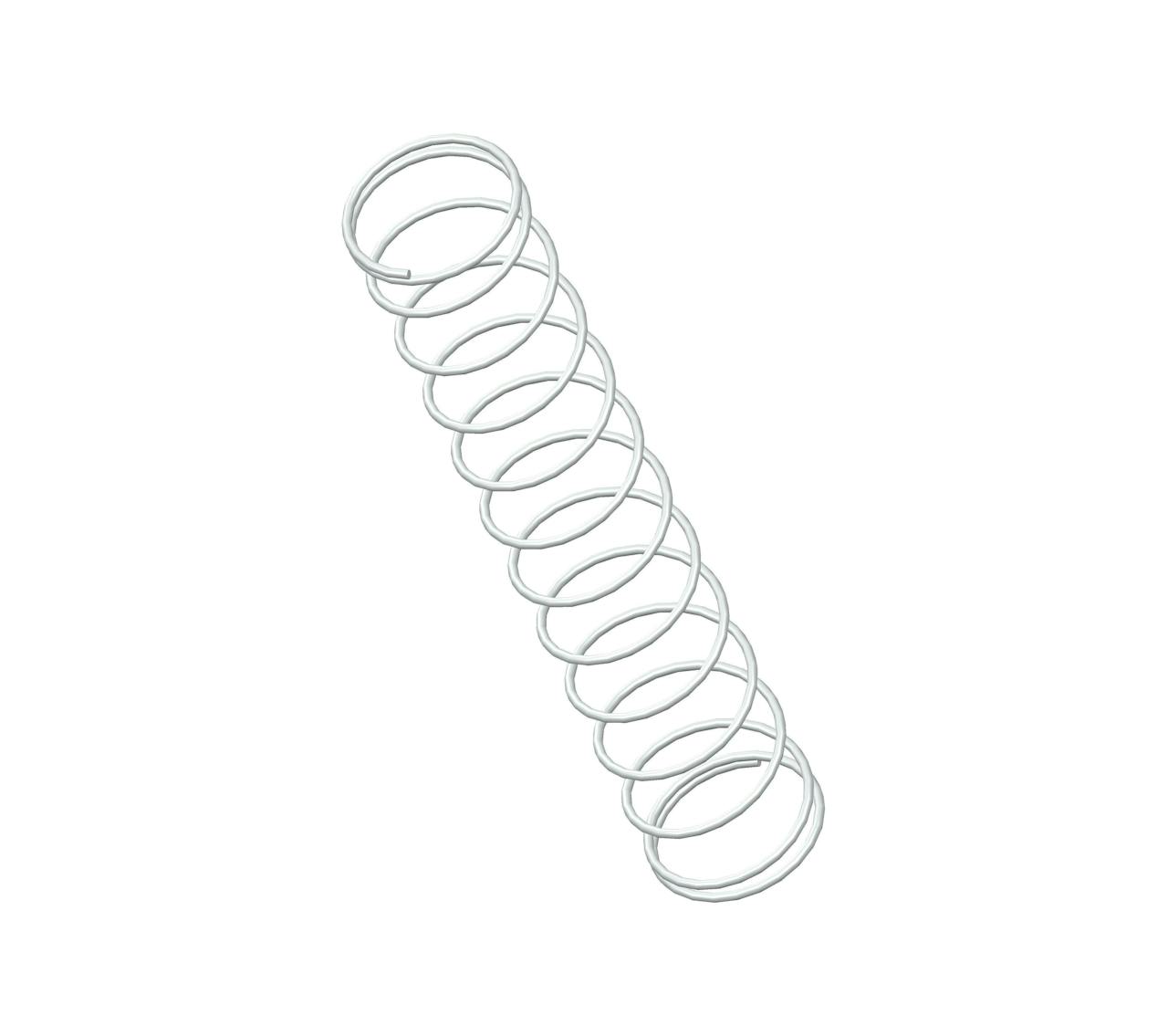

Compression spring manufactured from 302/304 stainless steel with 13.5 coils and closed ends. This spring features an O.D. of 0.578", and an I.D. of 0.516".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-472 |
| Ends | Closed |
| Finish | None |
| Free Length | 3.13 in |
| Inside Diameter | 0.516 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.578 in |
| Part Type | Standard |
| Rate | 0.61 lbs/in |
| SKU | S-472CS |
| Solid Length | 0.45 in |
| Suggested Max Deflection | 2.7 in |
| Suggested Max Load | 1.6 lbf |
| Total Coils | 13.5 |
| Wire Diameter | 0.031 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-472 |
| Ends | Closed |
| Finish | None |
| Free Length | 79.5 mm |
| Inside Diameter | 13.11 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 14.68 mm |
| Part Type | Standard |
| Rate | 0.11 N/mm |
| SKU | S-472CS |
| Solid Length | 11.43 mm |
| Suggested Max Deflection | 68.58 mm |
| Suggested Max Load | 7.12 N |
| Total Coils | 13.5 |
| Wire Diameter | 0.79 mm |
The S-472 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-472CS compression spring is designed with a free length of 1.44" total of 9.75 coils, and a rate of 20 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-472 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-472CS compression spring is designed with a free length of 1.44" total of 9.75 coils, and a rate of 20 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-472 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
