S-447CS - 5.16" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

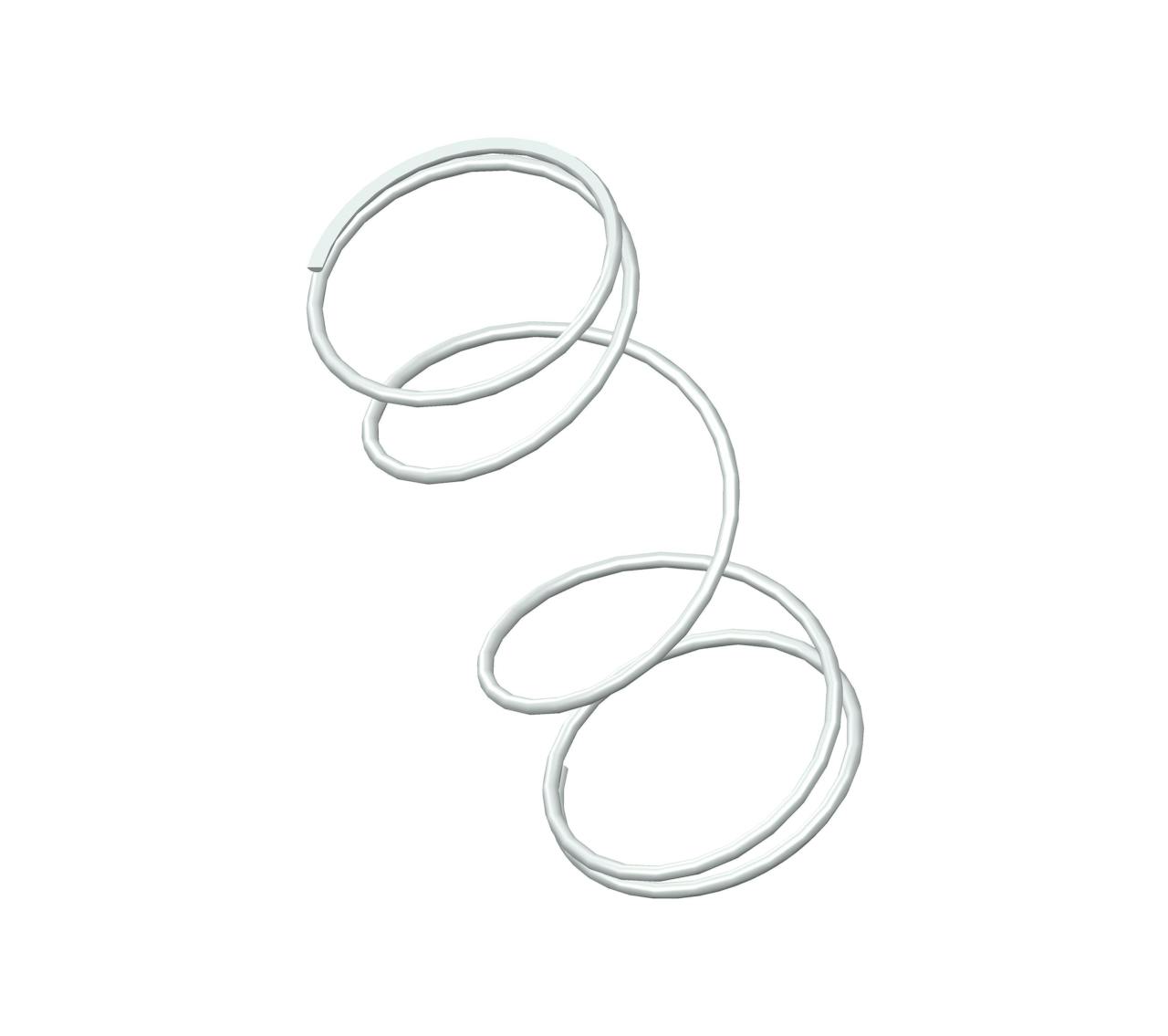

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 2.14", and an I.D. of 1.93".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-447 |
| Ends | Closed |
| Finish | None |
| Free Length | 5.16 in |
| Inside Diameter | 1.93 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 2.14 in |
| Part Type | Standard |
| Rate | 6 lbs/in |
| SKU | S-447CS |
| Solid Length | 0.53 in |
| Suggested Max Deflection | 2.8 in |
| Suggested Max Load | 17 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-447 |
| Ends | Closed |
| Finish | None |
| Free Length | 131.06 mm |
| Inside Diameter | 49.02 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 54.36 mm |
| Part Type | Standard |
| Rate | 1.05 N/mm |
| SKU | S-447CS |
| Solid Length | 13.46 mm |
| Suggested Max Deflection | 71.12 mm |
| Suggested Max Load | 75.62 N |
| Total Coils | 5 |
| Wire Diameter | 2.67 mm |
The compression spring S-447CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-447 compression spring design exhibits exceptional tensile strength and resilience.
The S-447 design is manufactured with a free length of 5.16", with an outer diameter of 2.14", an inner diameter of 1.93", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 6 lbs/in.
The S-447CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-447 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
