S-434CS - 4.13" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

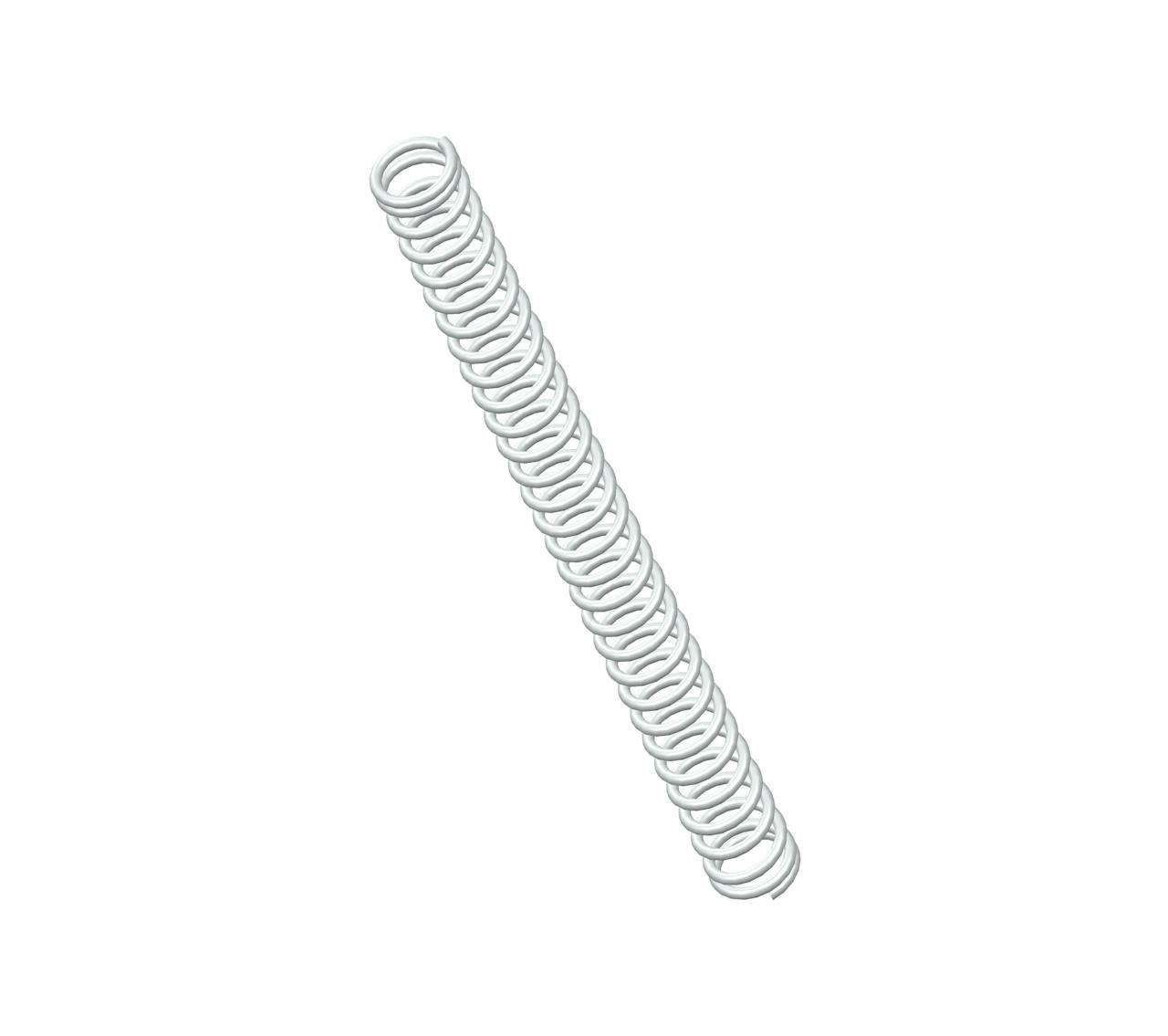

Compression spring manufactured from 302/304 stainless steel with 30.3 coils and closed ends. This spring features an O.D. of 0.343", and an I.D. of 0.253".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-434 |
| Ends | Closed |
| Finish | None |
| Free Length | 4.13 in |
| Inside Diameter | 0.253 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.343 in |
| Part Type | Standard |
| Rate | 6.8 lbs/in |
| SKU | S-434CS |
| Solid Length | 1.41 in |
| Suggested Max Deflection | 1.4 in |
| Suggested Max Load | 9.4 lbf |
| Total Coils | 30.3 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-434 |
| Ends | Closed |
| Finish | None |
| Free Length | 104.9 mm |
| Inside Diameter | 6.43 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 8.71 mm |
| Part Type | Standard |
| Rate | 1.19 N/mm |
| SKU | S-434CS |
| Solid Length | 35.81 mm |
| Suggested Max Deflection | 35.56 mm |
| Suggested Max Load | 41.81 N |
| Total Coils | 30.3 |
| Wire Diameter | 1.14 mm |
The S-434 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-434CS compression spring is designed with a free length of 2.19" total of 8.7 coils, and a rate of 8.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-434 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-434CS compression spring is designed with a free length of 2.19" total of 8.7 coils, and a rate of 8.2 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-434 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
