S-41CS - 1" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

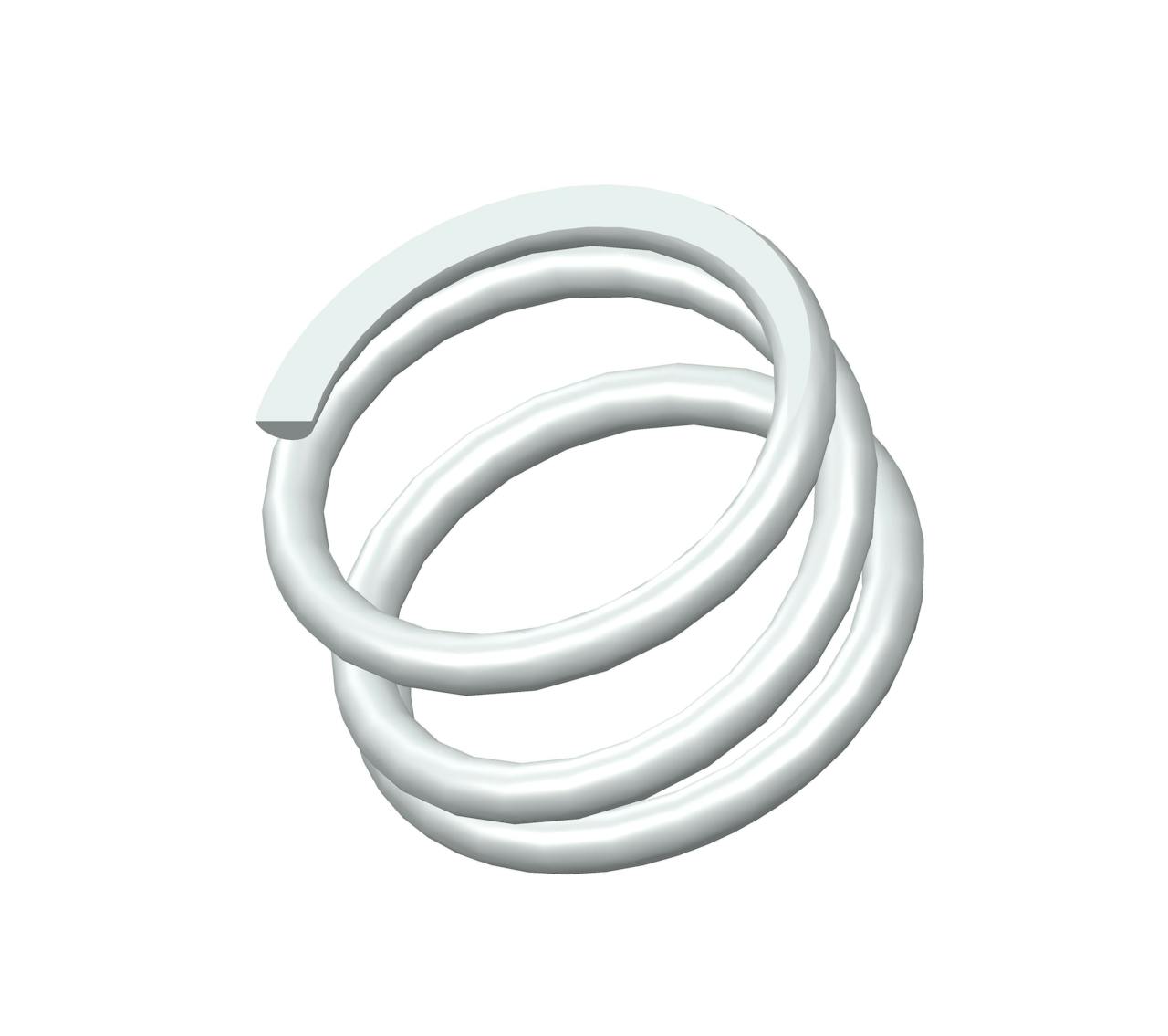

Compression spring manufactured from 302/304 stainless steel with 3 coils and closed & ground ends. This spring features an O.D. of 1.75", and an I.D. of 1.396".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-41 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 1.396 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.75 in |
| Part Type | Standard |
| Rate | 315 lbs/in |
| SKU | S-41CS |
| Solid Length | 0.53 in |
| Suggested Max Deflection | 0.27 in |
| Suggested Max Load | 84 lbf |
| Total Coils | 3 |
| Wire Diameter | 0.177 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-41 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 35.46 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 44.45 mm |
| Part Type | Standard |
| Rate | 55.16 N/mm |
| SKU | S-41CS |
| Solid Length | 13.46 mm |
| Suggested Max Deflection | 6.86 mm |
| Suggested Max Load | 373.63 N |
| Total Coils | 3 |
| Wire Diameter | 4.5 mm |
The compression spring S-41CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-41 compression spring design exhibits exceptional tensile strength and resilience.
The S-41 design is manufactured with a free length of 1", with an outer diameter of 1.75", an inner diameter of 1.396", and a total of 3 coils, expertly designed to deliver consistent compression characteristics including a rate of 315 lbs/in.
The S-41CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-41 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
