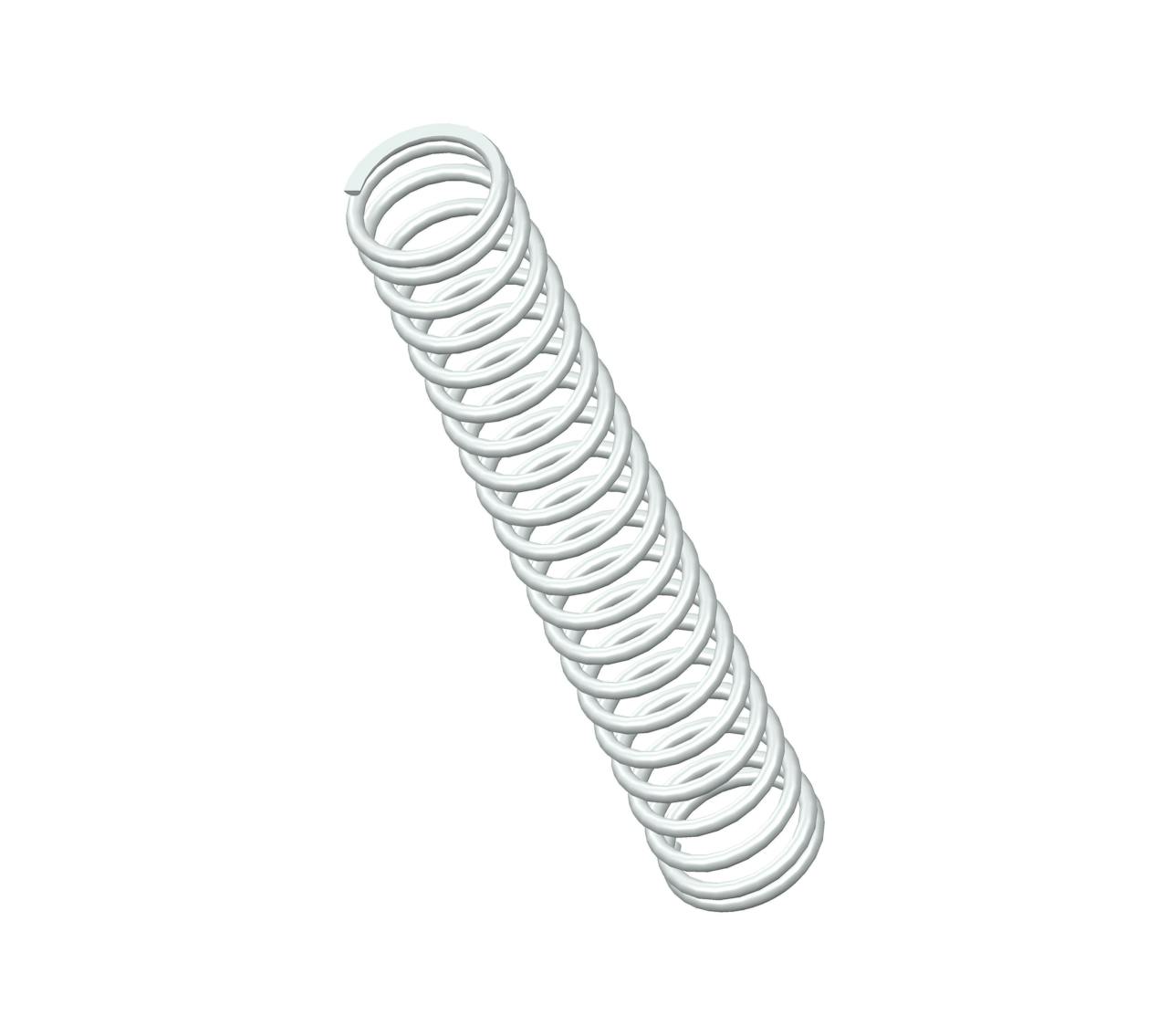

S-414CS - 2.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 21 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.359".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-414 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.75 in |
| Inside Diameter | 0.359 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 4.8 lbs/in |
| SKU | S-414CS |
| Solid Length | 0.99 in |
| Suggested Max Deflection | 1.7 in |
| Suggested Max Load | 8.2 lbf |
| Total Coils | 21 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-414 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 69.85 mm |
| Inside Diameter | 9.12 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 0.84 N/mm |
| SKU | S-414CS |
| Solid Length | 25.15 mm |
| Suggested Max Deflection | 43.18 mm |
| Suggested Max Load | 36.47 N |
| Total Coils | 21 |
| Wire Diameter | 1.19 mm |
The compression spring S-414CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-414 compression spring design exhibits exceptional tensile strength and resilience.
The S-414 design is manufactured with a free length of 2.75", with an outer diameter of 0.453", an inner diameter of 0.359", and a total of 21 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.8 lbs/in.
The S-414CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-414 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-414 design is manufactured with a free length of 2.75", with an outer diameter of 0.453", an inner diameter of 0.359", and a total of 21 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.8 lbs/in.
The S-414CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-414 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
