S-409CS - 1.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

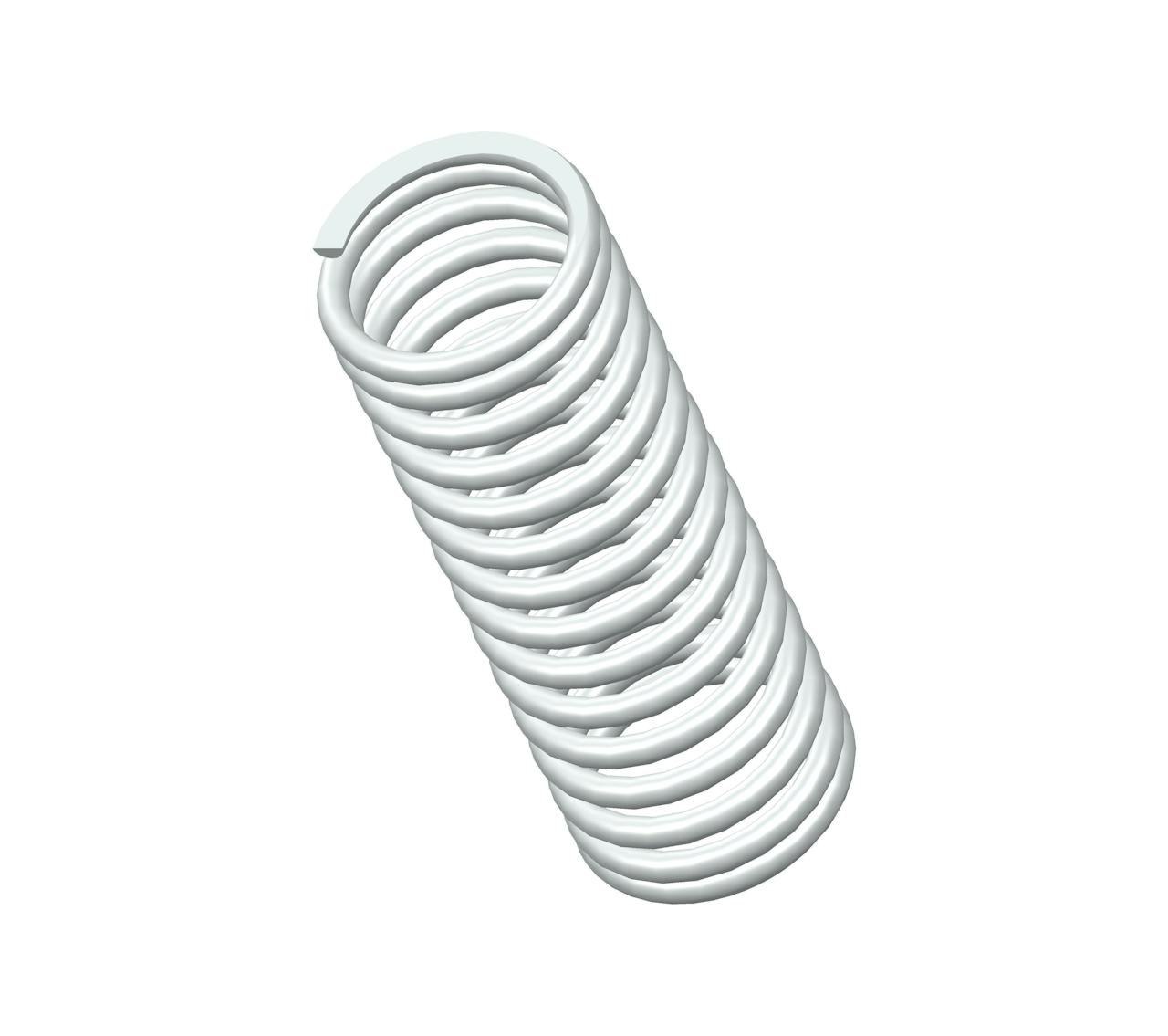

Compression spring manufactured from 302/304 stainless steel with 15 coils and closed & ground ends. This spring features an O.D. of 0.437", and an I.D. of 0.343".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-409 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.343 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.437 in |
| Part Type | Standard |
| Rate | 7.8 lbs/in |
| SKU | S-409CS |
| Solid Length | 0.71 in |
| Suggested Max Deflection | 0.55 in |
| Suggested Max Load | 4.3 lbf |
| Total Coils | 15 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-409 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 8.71 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.1 mm |
| Part Type | Standard |
| Rate | 1.37 N/mm |
| SKU | S-409CS |
| Solid Length | 18.03 mm |
| Suggested Max Deflection | 13.97 mm |
| Suggested Max Load | 19.13 N |
| Total Coils | 15 |
| Wire Diameter | 1.19 mm |
The compression spring S-409CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-409 compression spring design exhibits exceptional tensile strength and resilience.
The S-409 design is manufactured with a free length of 1.25", with an outer diameter of 0.437", an inner diameter of 0.343", and a total of 15 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.8 lbs/in.
The S-409CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-409 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-409 design is manufactured with a free length of 1.25", with an outer diameter of 0.437", an inner diameter of 0.343", and a total of 15 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.8 lbs/in.
The S-409CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-409 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
