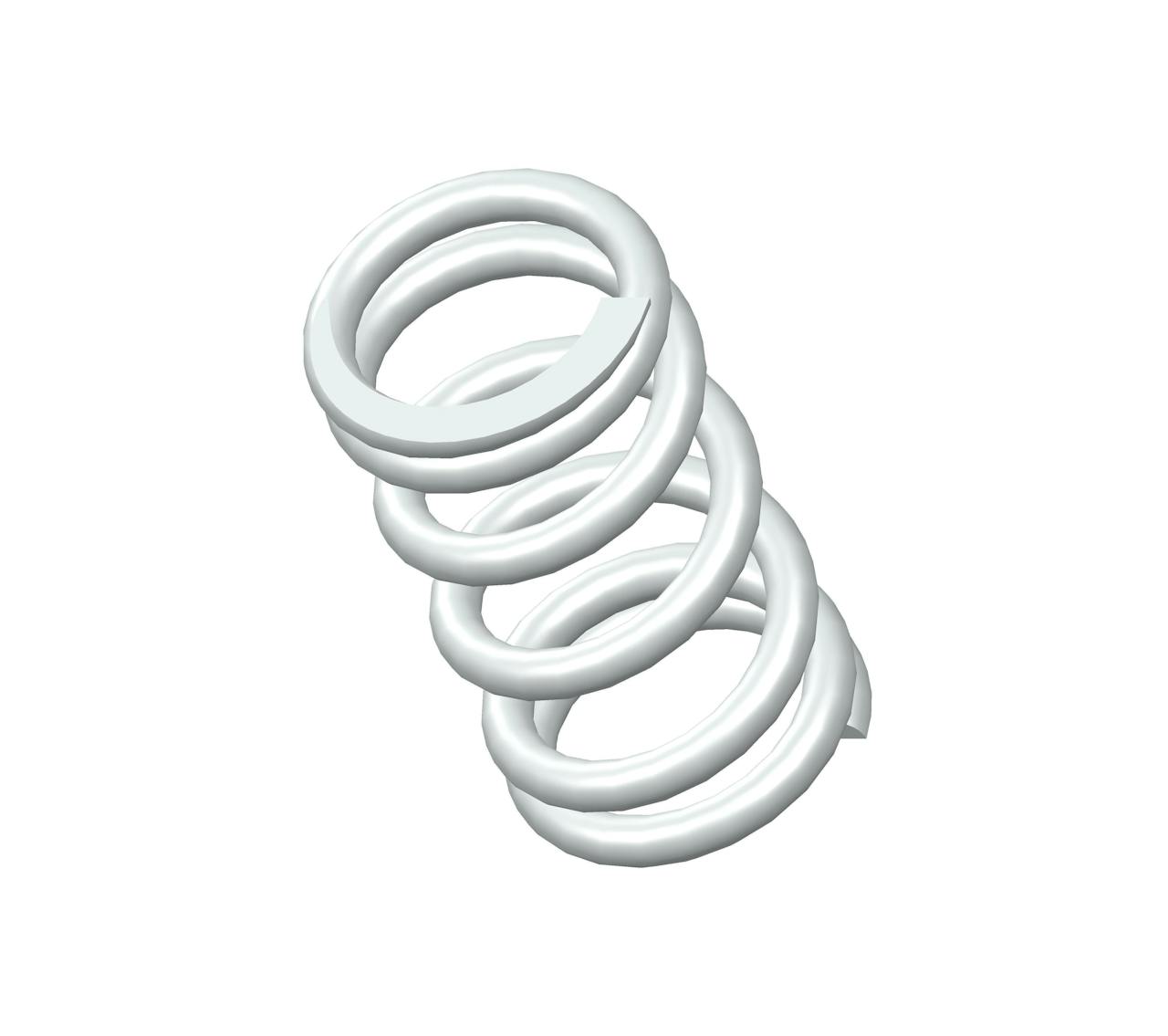

S-406CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.266", and an I.D. of 0.192".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-406 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.192 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.266 in |
| Part Type | Standard |
| Rate | 50 lbs/in |
| SKU | S-406CS |
| Solid Length | 0.22 in |
| Suggested Max Deflection | 0.13 in |
| Suggested Max Load | 6.7 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-406 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 4.88 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.76 mm |
| Part Type | Standard |
| Rate | 8.76 N/mm |
| SKU | S-406CS |
| Solid Length | 5.59 mm |
| Suggested Max Deflection | 3.3 mm |
| Suggested Max Load | 29.8 N |
| Total Coils | 6 |
| Wire Diameter | 0.94 mm |
The compression spring S-406CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-406 compression spring design exhibits exceptional tensile strength and resilience.
The S-406 design is manufactured with a free length of 0.5", with an outer diameter of 0.266", an inner diameter of 0.192", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 50 lbs/in.
The S-406CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-406 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-406 design is manufactured with a free length of 0.5", with an outer diameter of 0.266", an inner diameter of 0.192", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 50 lbs/in.
The S-406CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-406 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
