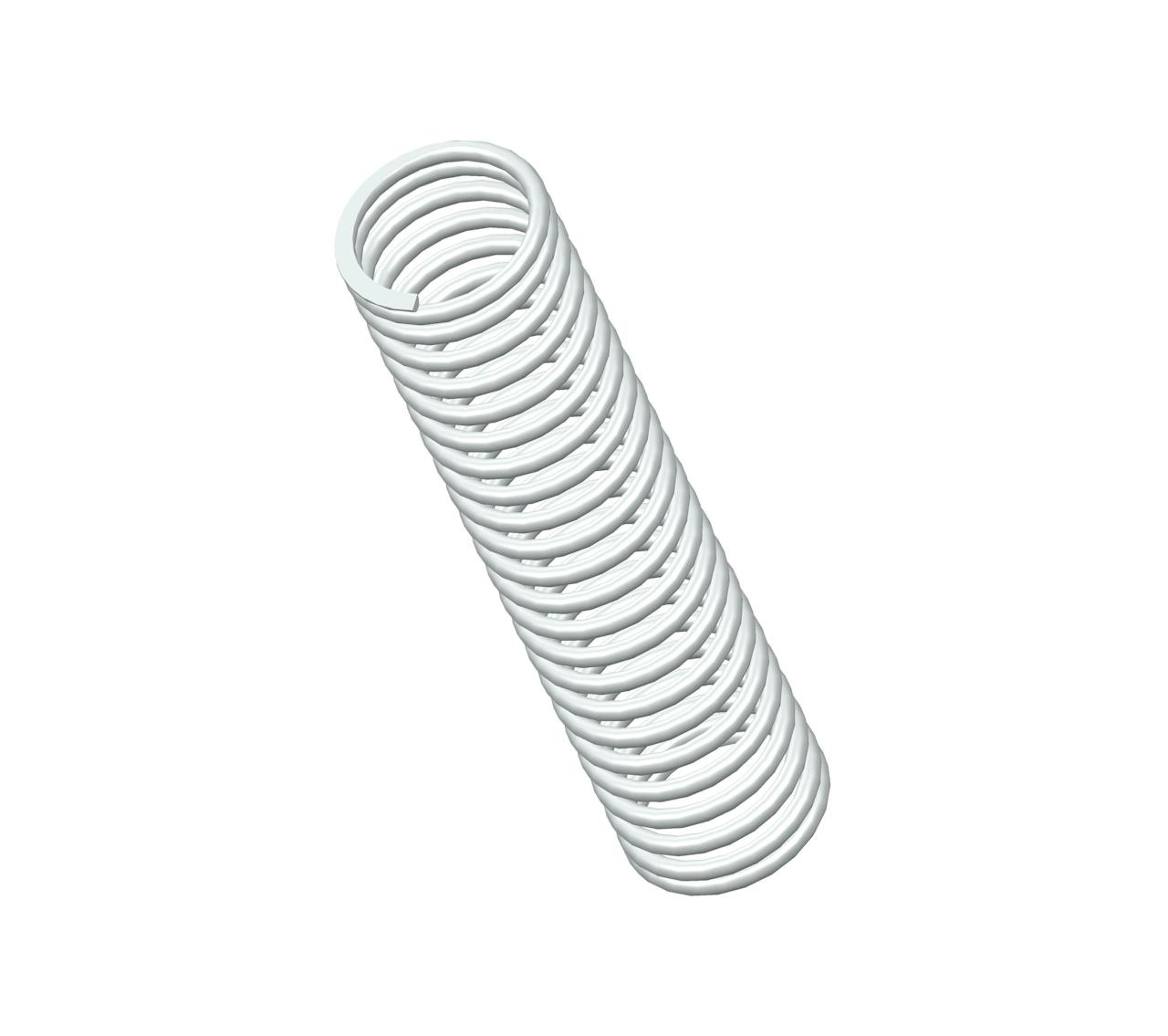

S-39CS - 2.13" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 23.5 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.406".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-39 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.13 in |
| Inside Diameter | 0.406 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 3.1 lbs/in |
| SKU | S-39CS |
| Solid Length | 1.1 in |
| Suggested Max Deflection | 1 in |
| Suggested Max Load | 3.1 lbf |
| Total Coils | 23.5 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-39 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 54.1 mm |
| Inside Diameter | 10.31 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 0.54 N/mm |
| SKU | S-39CS |
| Solid Length | 27.94 mm |
| Suggested Max Deflection | 25.4 mm |
| Suggested Max Load | 13.79 N |
| Total Coils | 23.5 |
| Wire Diameter | 1.19 mm |
The S-39 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-39CS compression spring is designed with a free length of 0.94" total of 7.3 coils, and a rate of 48 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-39 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-39CS compression spring is designed with a free length of 0.94" total of 7.3 coils, and a rate of 48 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-39 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
