S-352CS - 2.63" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

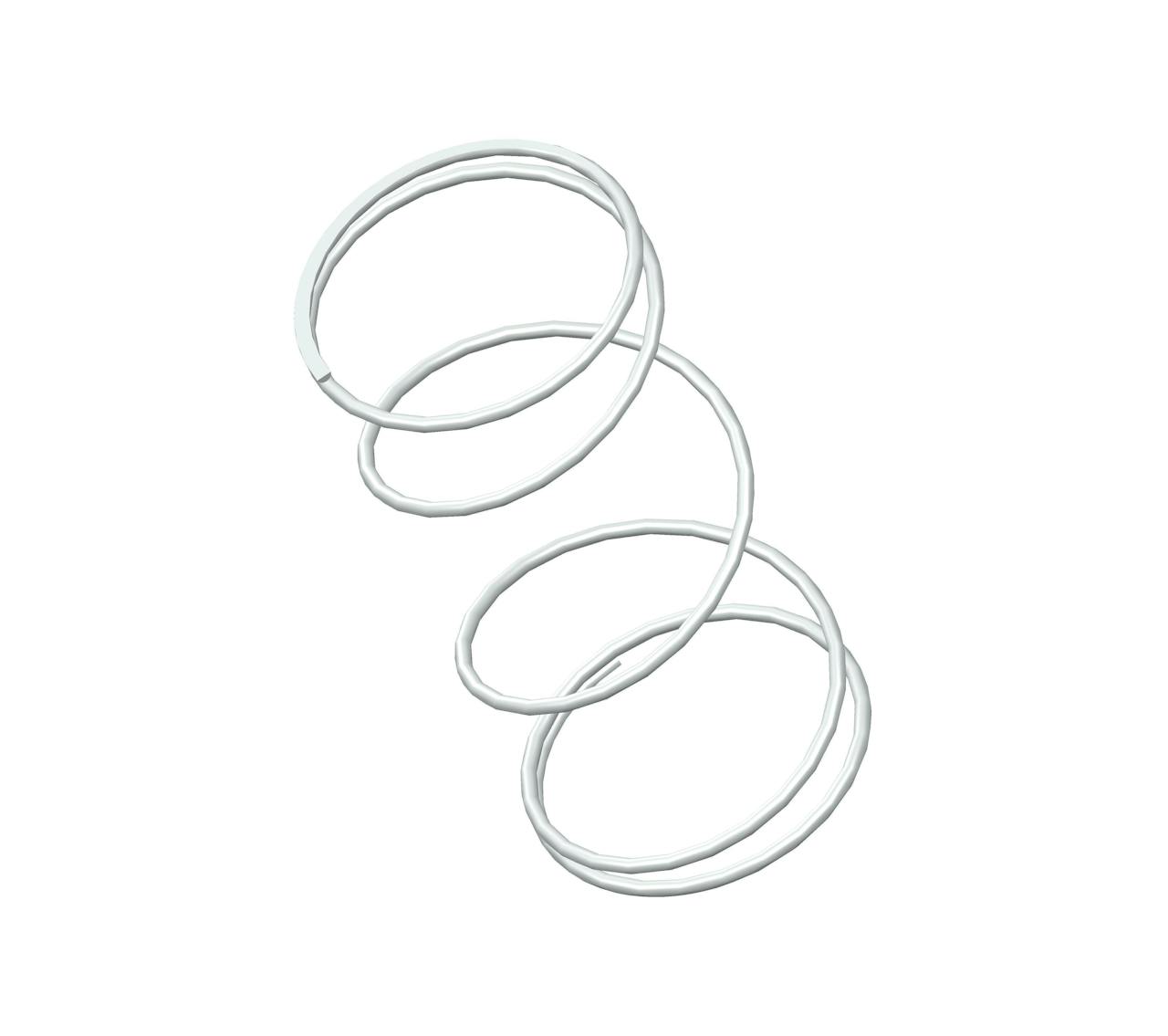

Compression spring manufactured from 302/304 stainless steel with 5.25 coils and closed ends. This spring features an O.D. of 1.25", and an I.D. of 1.138".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-352 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.63 in |
| Inside Diameter | 1.138 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.25 in |
| Part Type | Standard |
| Rate | 2.2 lbs/in |
| SKU | S-352CS |
| Solid Length | 0.35 in |
| Suggested Max Deflection | 2.2 in |
| Suggested Max Load | 4.9 lbf |
| Total Coils | 5.25 |
| Wire Diameter | 0.056 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-352 |
| Ends | Closed |
| Finish | None |
| Free Length | 66.8 mm |
| Inside Diameter | 28.91 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 31.75 mm |
| Part Type | Standard |
| Rate | 0.39 N/mm |
| SKU | S-352CS |
| Solid Length | 8.89 mm |
| Suggested Max Deflection | 55.88 mm |
| Suggested Max Load | 21.8 N |
| Total Coils | 5.25 |
| Wire Diameter | 1.42 mm |
The S-352 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-352CS compression spring is designed with a free length of 0.44" total of 6 coils, and a rate of 7.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-352 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-352CS compression spring is designed with a free length of 0.44" total of 6 coils, and a rate of 7.5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-352 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
