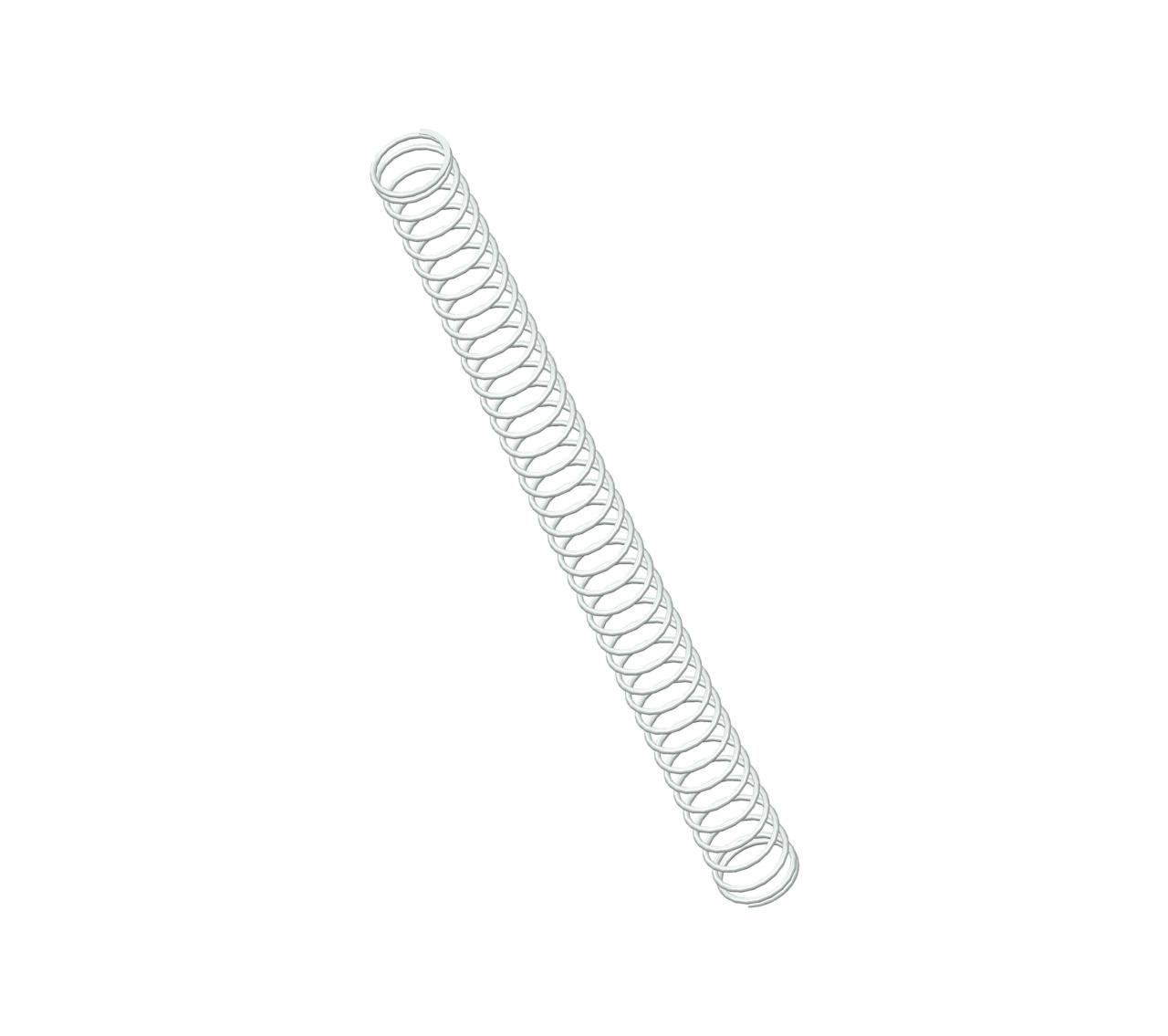

S-346CS - 16" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 38.5 coils and closed ends. This spring features an O.D. of 1.203", and an I.D. of 1.023".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-346 |
| Ends | Closed |
| Finish | None |
| Free Length | 16 in |
| Inside Diameter | 1.023 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.203 in |
| Part Type | Standard |
| Rate | 1.6 lbs/in |
| SKU | S-346CS |
| Solid Length | 3.56 in |
| Suggested Max Deflection | 11 in |
| Suggested Max Load | 19 lbf |
| Total Coils | 38.5 |
| Wire Diameter | 0.09 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-346 |
| Ends | Closed |
| Finish | None |
| Free Length | 406.4 mm |
| Inside Diameter | 25.98 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 30.56 mm |
| Part Type | Standard |
| Rate | 0.28 N/mm |
| SKU | S-346CS |
| Solid Length | 90.42 mm |
| Suggested Max Deflection | 279.4 mm |
| Suggested Max Load | 84.51 N |
| Total Coils | 38.5 |
| Wire Diameter | 2.29 mm |
The compression spring S-346CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-346 compression spring design exhibits exceptional tensile strength and resilience.
The S-346 design is manufactured with a free length of 16", with an outer diameter of 1.203", an inner diameter of 1.023", and a total of 38.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.6 lbs/in.
The S-346CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-346 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-346 design is manufactured with a free length of 16", with an outer diameter of 1.203", an inner diameter of 1.023", and a total of 38.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.6 lbs/in.
The S-346CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-346 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
