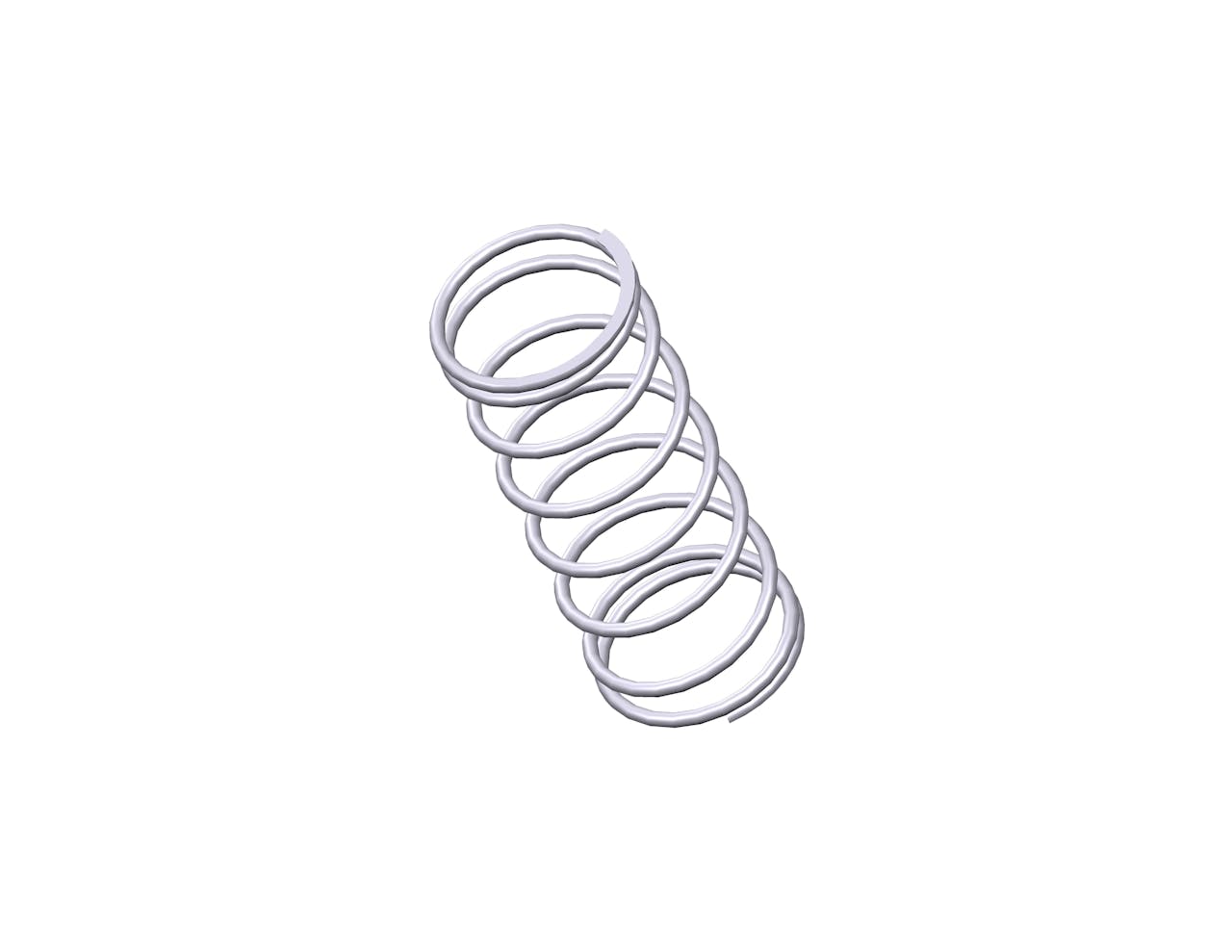

S-3244CS - 2.66" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8.33 coils and closed & ground ends. This spring features an O.D. of 1.046", and an I.D. of 0.898".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3244
Ends Closed & Ground
Finish None
Free Length 2.66 in
Inside Diameter 0.898 in
Material 302/304 Stainless Steel
Outside Diameter 1.046 in
Part Type Standard
Rate 6.6 lbs/in
SKU S-3244CS
Solid Length 0.62 in
Suggested Max Deflection 1.9 in
Suggested Max Load 13 lbf
Total Coils 8.33
Wire Diameter 0.074 in
The compression spring S-3244CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3244 compression spring design exhibits exceptional tensile strength and resilience.

The S-3244 design is manufactured with a free length of 2.66", with an outer diameter of 1.046", an inner diameter of 0.898", and a total of 8.33 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.6 lbs/in.

The S-3244CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-3244 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
