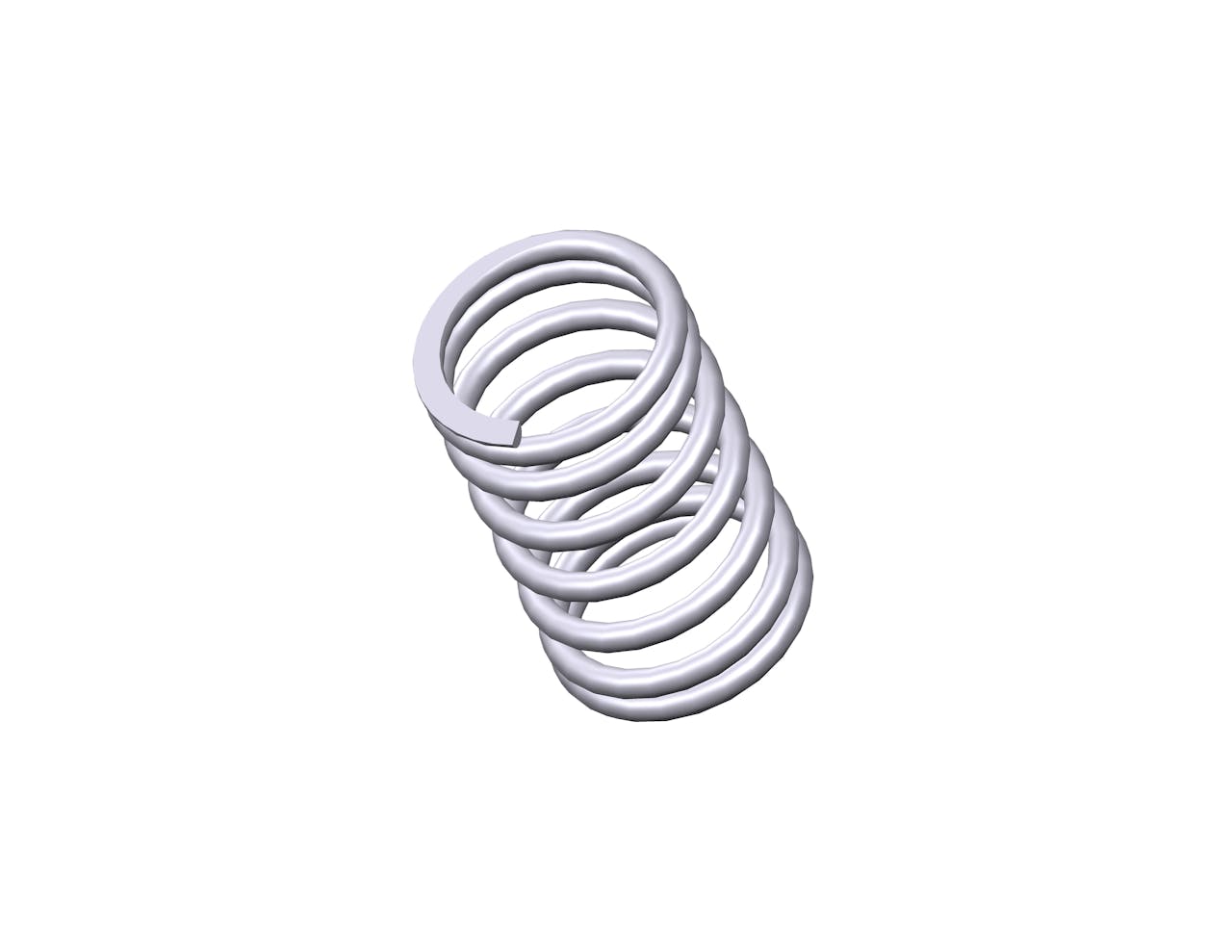

S-3235CS - 2.19" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 1.359", and an I.D. of 1.065".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3235 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.19 in |
| Inside Diameter | 1.065 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.359 in |
| Part Type | Standard |
| Rate | 61 lbs/in |
| SKU | S-3235CS |
| Solid Length | 1.115 in |
| Suggested Max Deflection | 1.075 in |
| Suggested Max Load | 66 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.148 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3235 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 55.63 mm |
| Inside Diameter | 27.05 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 34.52 mm |
| Part Type | Standard |
| Rate | 10.68 N/mm |
| SKU | S-3235CS |
| Solid Length | 28.32 mm |
| Suggested Max Deflection | 27.31 mm |
| Suggested Max Load | 293.57 N |
| Total Coils | 7.5 |
| Wire Diameter | 3.76 mm |
The S-3235 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-3235CS compression spring is designed with a free length of 4.25" total of 17.3 coils, and a rate of 4.6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-3235 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-3235CS compression spring is designed with a free length of 4.25" total of 17.3 coils, and a rate of 4.6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-3235 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
