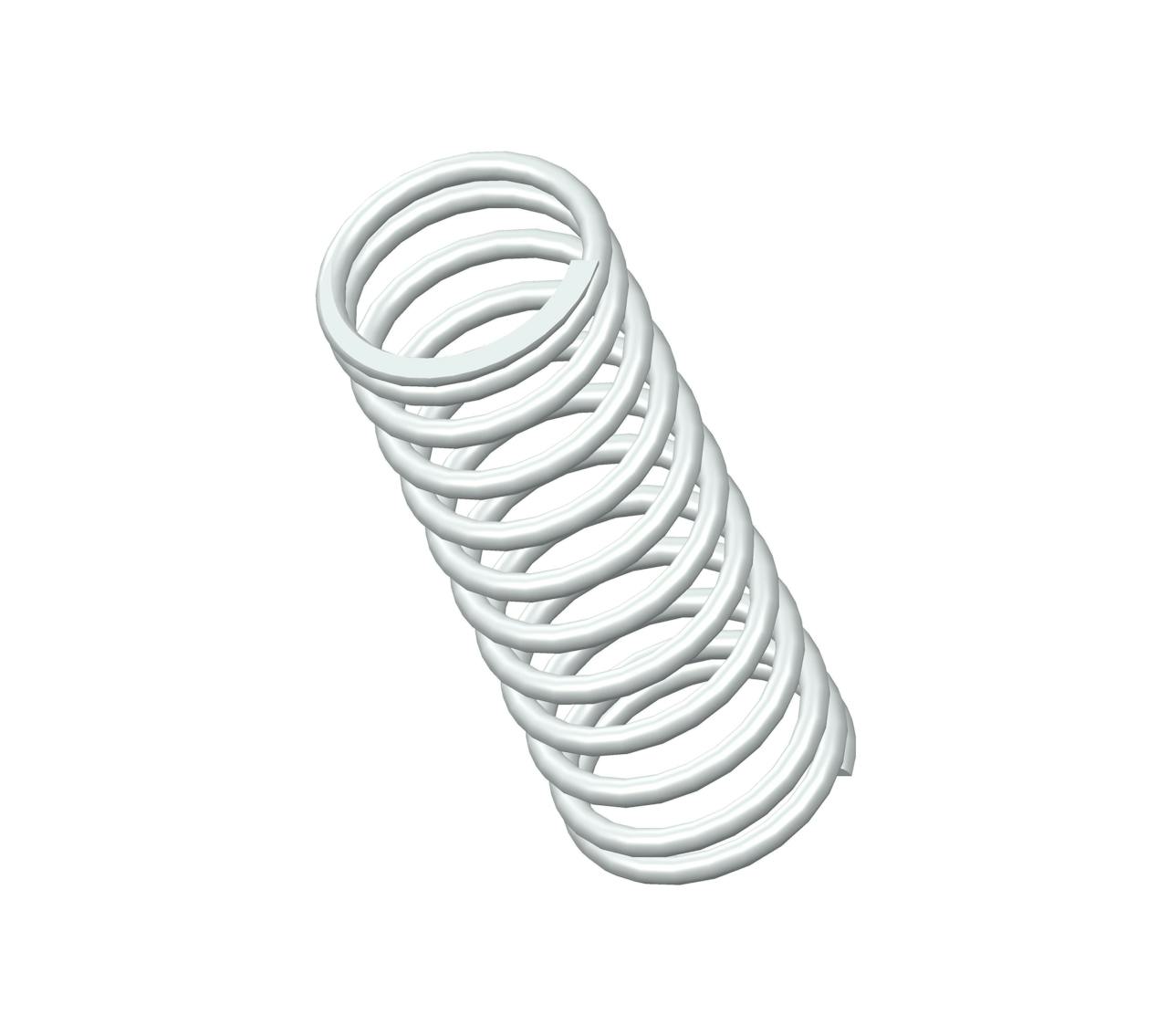

S-3225CS - 5.13" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 12 coils and closed & ground ends. This spring features an O.D. of 1.89", and an I.D. of 1.526".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3225 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 5.13 in |
| Inside Diameter | 1.526 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.89 in |
| Part Type | Standard |
| Rate | 28 lbs/in |
| SKU | S-3225CS |
| Solid Length | 2.18 in |
| Suggested Max Deflection | 2.8 in |
| Suggested Max Load | 79 lbf |
| Total Coils | 12 |
| Wire Diameter | 0.182 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3225 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 130.3 mm |
| Inside Diameter | 38.76 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 48.01 mm |
| Part Type | Standard |
| Rate | 4.9 N/mm |
| SKU | S-3225CS |
| Solid Length | 55.37 mm |
| Suggested Max Deflection | 71.12 mm |
| Suggested Max Load | 351.39 N |
| Total Coils | 12 |
| Wire Diameter | 4.62 mm |
The compression spring S-3225CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3225 compression spring design exhibits exceptional tensile strength and resilience.
The S-3225 design is manufactured with a free length of 5.13", with an outer diameter of 1.89", an inner diameter of 1.526", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The S-3225CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3225 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3225 design is manufactured with a free length of 5.13", with an outer diameter of 1.89", an inner diameter of 1.526", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The S-3225CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3225 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
