S-3209CS - 1.06" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

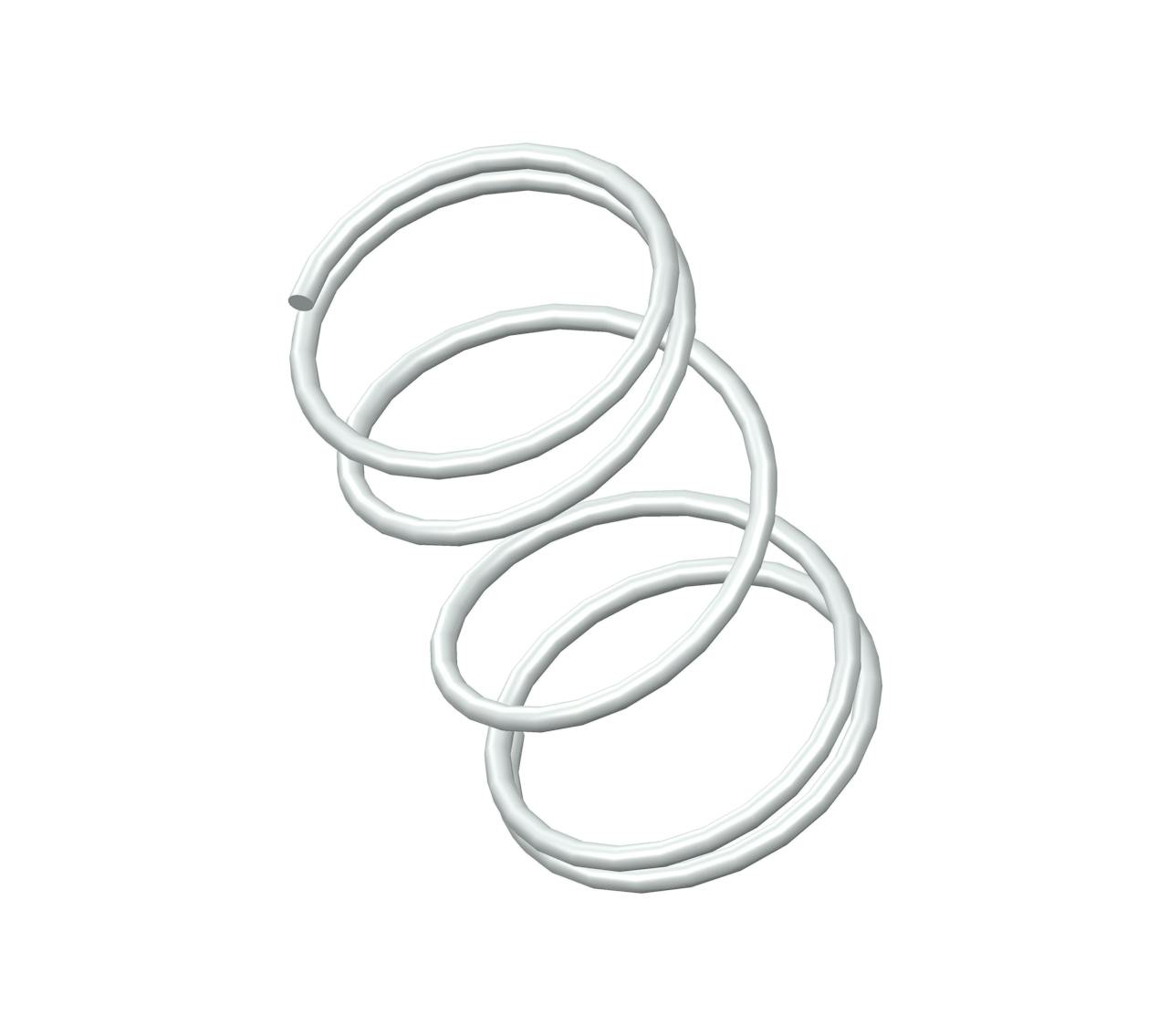

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.609", and an I.D. of 0.531".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3209 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.06 in |
| Inside Diameter | 0.531 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.609 in |
| Part Type | Standard |
| Rate | 5.3 lbs/in |
| SKU | S-3209CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.67 in |
| Suggested Max Load | 3.6 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3209 |
| Ends | Closed |
| Finish | None |
| Free Length | 26.92 mm |
| Inside Diameter | 13.49 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 15.47 mm |
| Part Type | Standard |
| Rate | 0.93 N/mm |
| SKU | S-3209CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 17.02 mm |
| Suggested Max Load | 16.01 N |
| Total Coils | 5 |
| Wire Diameter | 0.99 mm |
The compression spring S-3209CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3209 compression spring design exhibits exceptional tensile strength and resilience.
The S-3209 design is manufactured with a free length of 1.06", with an outer diameter of 0.609", an inner diameter of 0.531", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.3 lbs/in.
The S-3209CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3209 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
