Century Spring

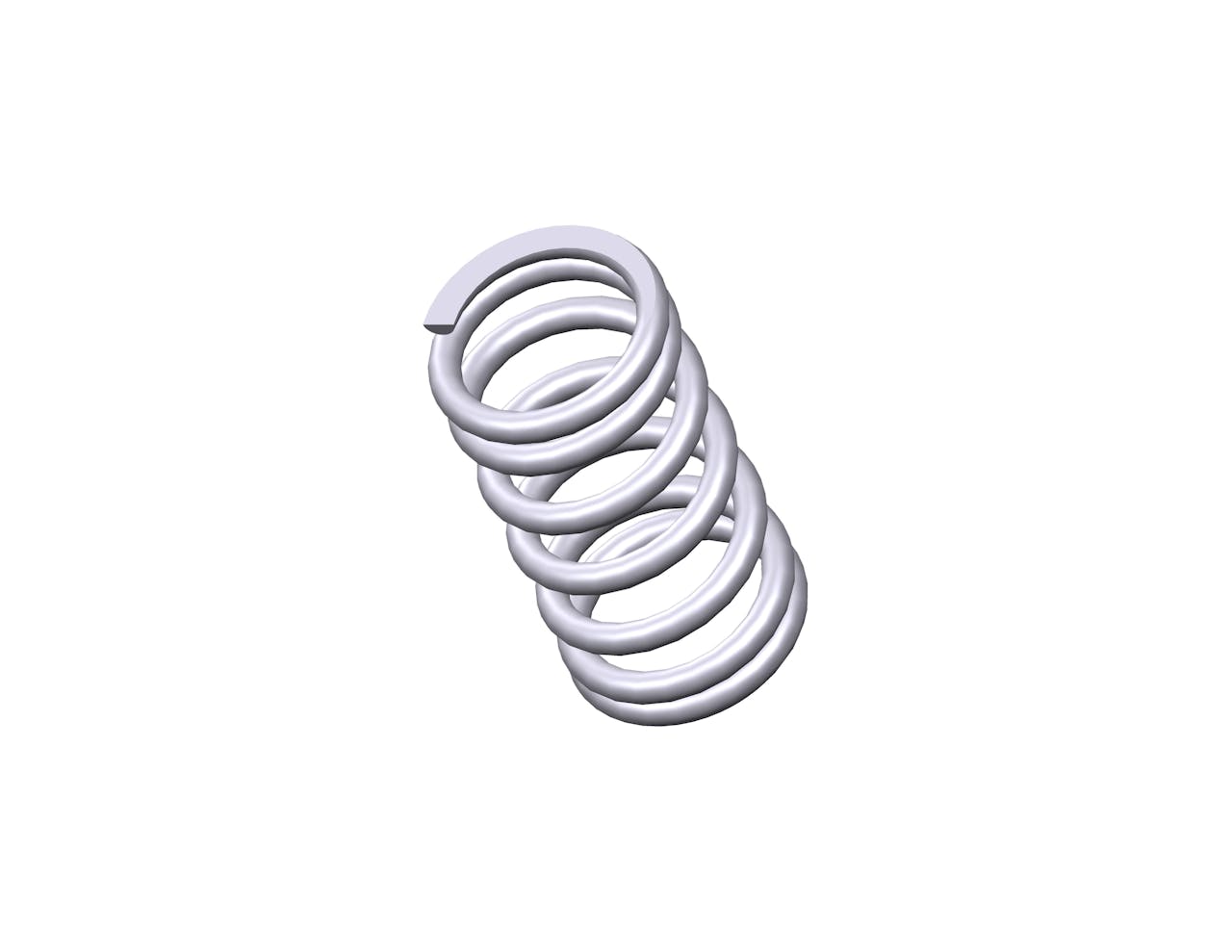

S-3207CS - 1.53" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.812", and an I.D. of 0.602".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3207
Ends Closed & Ground
Finish None
Free Length 1.53 in
Inside Diameter 0.602 in
Material 302/304 Stainless Steel
Outside Diameter 0.812 in
Part Type Standard
Rate 88 lbs/in
SKU S-3207CS
Solid Length 0.74 in
Suggested Max Deflection 0.48 in
Suggested Max Load 43 lbf
Total Coils 7
Wire Diameter 0.105 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3207
Ends Closed & Ground
Finish None
Free Length 38.86 mm
Inside Diameter 15.29 mm
Material 302/304 Stainless Steel
Outside Diameter 20.62 mm
Part Type Standard
Rate 15.41 N/mm
SKU S-3207CS
Solid Length 18.8 mm
Suggested Max Deflection 12.19 mm
Suggested Max Load 191.26 N
Total Coils 7
Wire Diameter 2.67 mm
The S-3207 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-3207CS compression spring is designed with a free length of 0.94" total of 3.7 coils, and a rate of 8.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-3207 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
