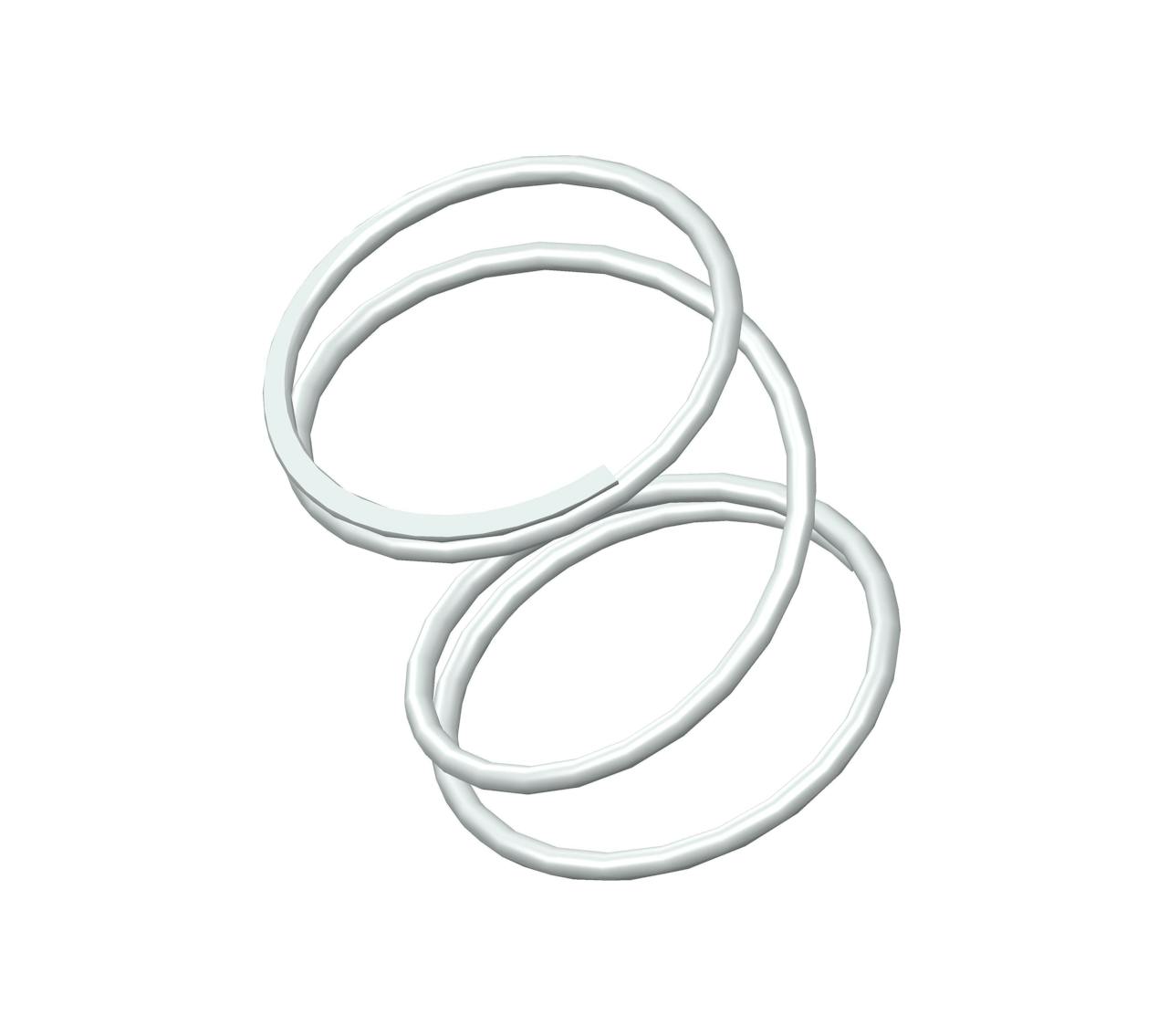

S-3206CS - 0.94" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 3.7 coils and closed & ground ends. This spring features an O.D. of 0.828", and an I.D. of 0.732".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3206 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.94 in |
| Inside Diameter | 0.732 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.828 in |
| Part Type | Standard |
| Rate | 8.1 lbs/in |
| SKU | S-3206CS |
| Solid Length | 0.174 in |
| Suggested Max Deflection | 0.574 in |
| Suggested Max Load | 4.7 lbf |
| Total Coils | 3.7 |
| Wire Diameter | 0.0475 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3206 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 23.88 mm |
| Inside Diameter | 18.59 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 21.03 mm |
| Part Type | Standard |
| Rate | 1.42 N/mm |
| SKU | S-3206CS |
| Solid Length | 4.42 mm |
| Suggested Max Deflection | 14.58 mm |
| Suggested Max Load | 20.91 N |
| Total Coils | 3.7 |
| Wire Diameter | 1.21 mm |
The compression spring S-3206CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3206 compression spring design exhibits exceptional tensile strength and resilience.
The S-3206 design is manufactured with a free length of 0.94", with an outer diameter of 0.828", an inner diameter of 0.732", and a total of 3.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.1 lbs/in.
The S-3206CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3206 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3206 design is manufactured with a free length of 0.94", with an outer diameter of 0.828", an inner diameter of 0.732", and a total of 3.7 coils, expertly designed to deliver consistent compression characteristics including a rate of 8.1 lbs/in.
The S-3206CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3206 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
