S-3203CS - 0.56" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

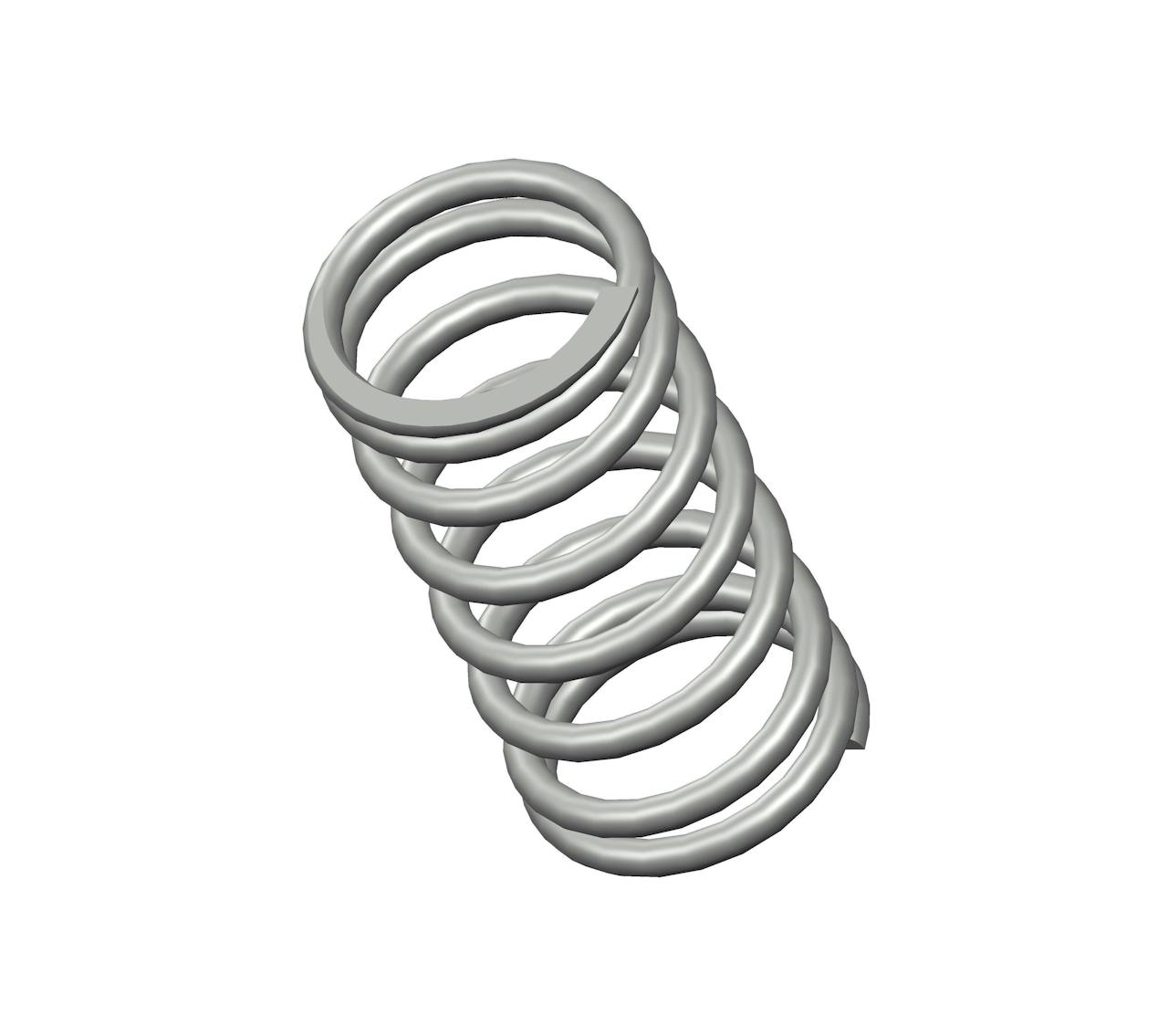

Compression spring manufactured from 302/304 stainless steel with 3.5 coils and closed & ground ends. This spring features an O.D. of 0.734", and an I.D. of 0.544".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3203 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.56 in |
| Inside Diameter | 0.544 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.734 in |
| Part Type | Standard |
| Rate | 265 lbs/in |
| SKU | S-3203CS |
| Solid Length | 0.33 in |
| Suggested Max Deflection | 0.13 in |
| Suggested Max Load | 35 lbf |
| Total Coils | 3.5 |
| Wire Diameter | 0.095 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3203 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 14.22 mm |
| Inside Diameter | 13.82 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 18.64 mm |
| Part Type | Standard |
| Rate | 46.4 N/mm |
| SKU | S-3203CS |
| Solid Length | 8.38 mm |
| Suggested Max Deflection | 3.3 mm |
| Suggested Max Load | 155.68 N |
| Total Coils | 3.5 |
| Wire Diameter | 2.41 mm |
The compression spring S-3203CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3203 compression spring design exhibits exceptional tensile strength and resilience.
The S-3203 design is manufactured with a free length of 0.56", with an outer diameter of 0.734", an inner diameter of 0.544", and a total of 3.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 265 lbs/in.
The S-3203CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3203 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
