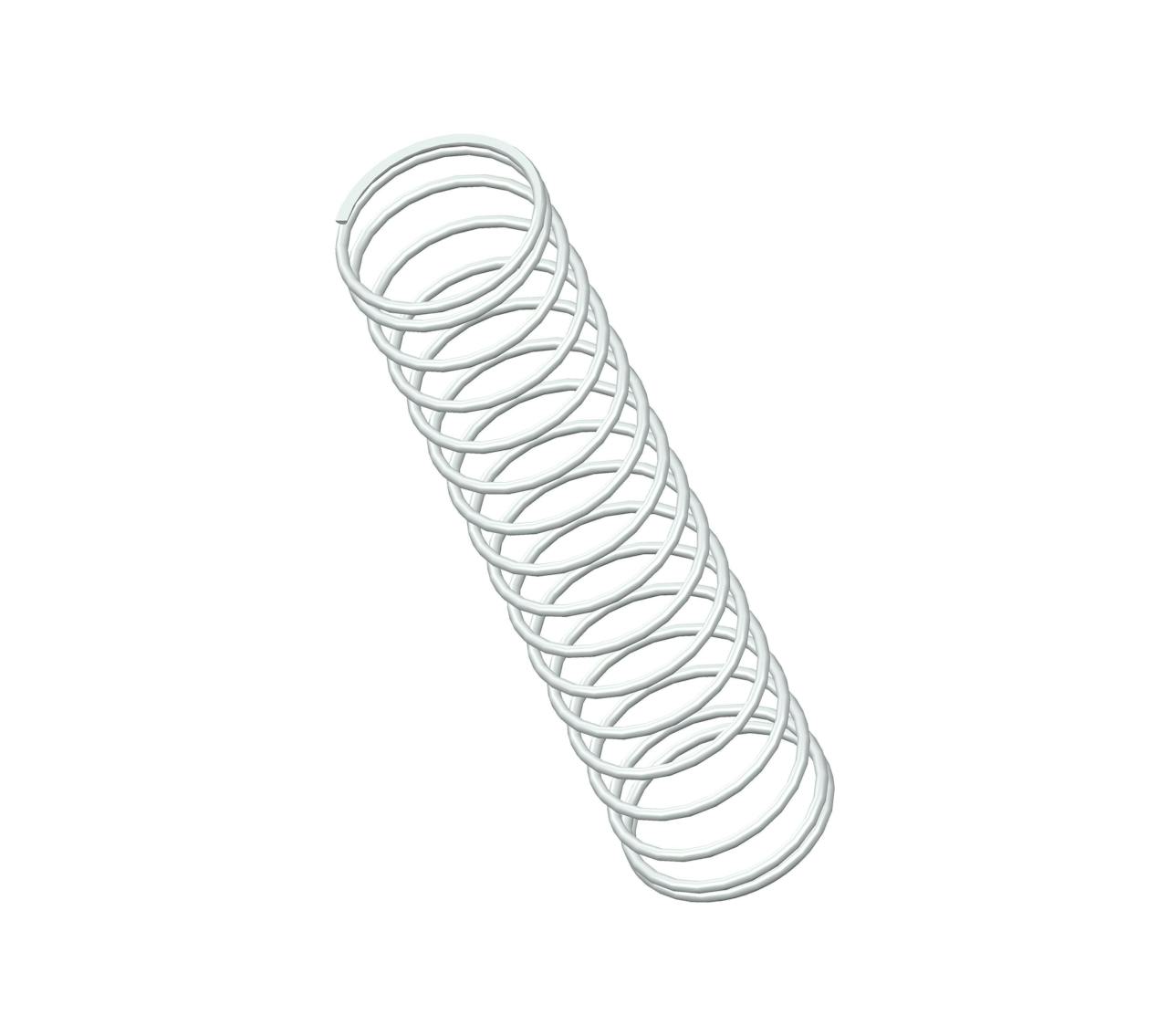

S-3193CS - 6.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 17 coils and closed & ground ends. This spring features an O.D. of 1.578", and an I.D. of 1.398".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3193 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 6.75 in |
| Inside Diameter | 1.398 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.578 in |
| Part Type | Standard |
| Rate | 1.7 lbs/in |
| SKU | S-3193CS |
| Solid Length | 1.53 in |
| Suggested Max Deflection | 5.2 in |
| Suggested Max Load | 8.8 lbf |
| Total Coils | 17 |
| Wire Diameter | 0.09 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3193 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 171.45 mm |
| Inside Diameter | 35.51 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 40.08 mm |
| Part Type | Standard |
| Rate | 0.3 N/mm |
| SKU | S-3193CS |
| Solid Length | 38.86 mm |
| Suggested Max Deflection | 132.08 mm |
| Suggested Max Load | 39.14 N |
| Total Coils | 17 |
| Wire Diameter | 2.29 mm |
The S-3193CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.09" diameter 302/304 stainless steel, the S-3193 spring design exhibits reliable strength across its 17 active coils, withstanding repeated compression cycles with a maximum load of 8.8 lbf without succumbing to fatigue.
We manufacture the S-3193 design to provide a compression spring that is 6.75" long at rest and provides a consistent rate of 1.7 lbs/in along its recommended maximum of 5.2" deflection. For best results, your application should fully accommodate the inner (1.398") and outer (1.578") diameters of this spring and be designed for its closed & ground end configuration.
