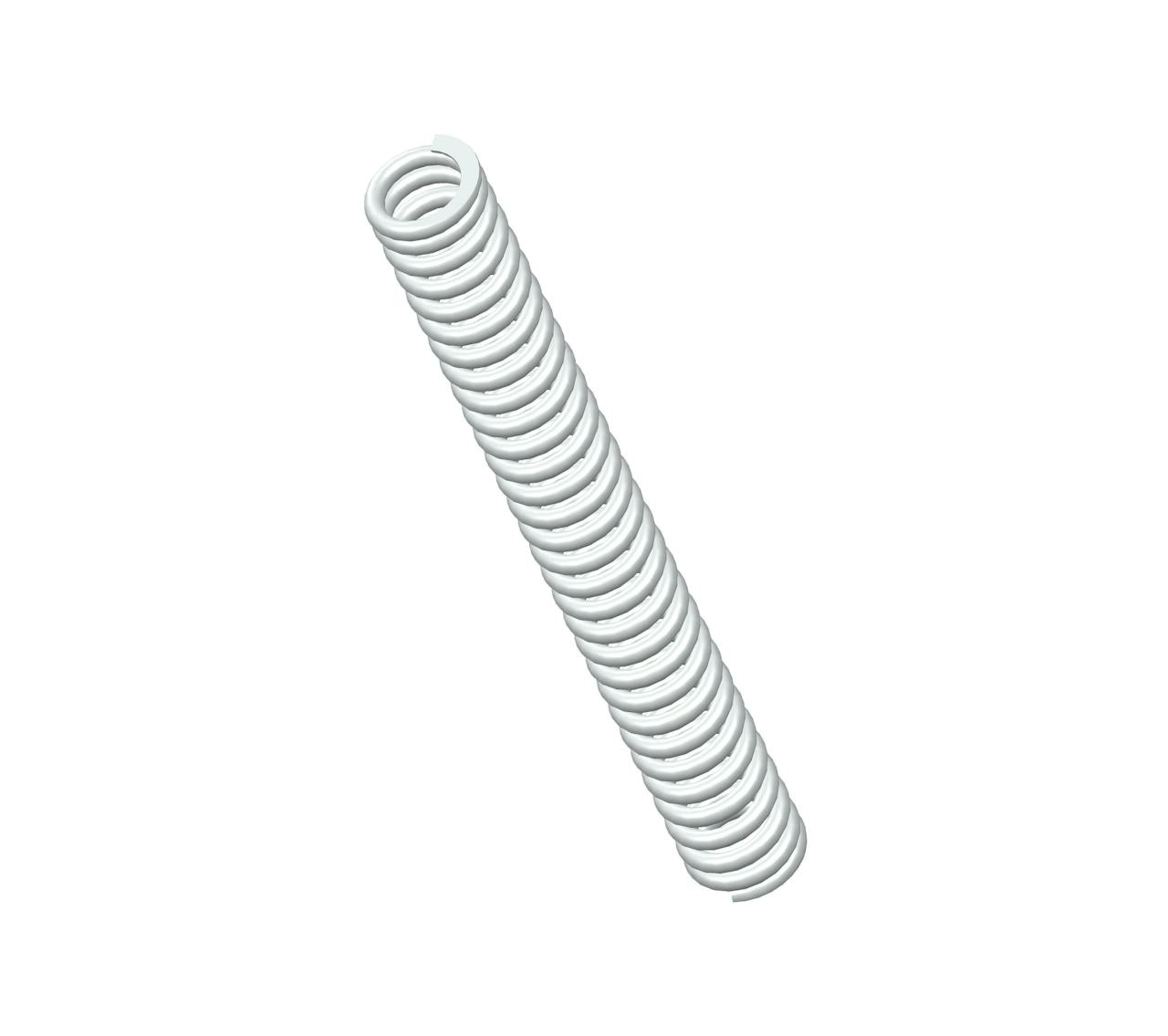

S-3183CS - 2.13" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 30.5 coils and closed & ground ends. This spring features an O.D. of 0.25", and an I.D. of 0.168".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3183
Ends Closed & Ground
Finish None
Free Length 2.13 in
Inside Diameter 0.168 in
Material 302/304 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 14 lbs/in
SKU S-3183CS
Solid Length 1.25 in
Suggested Max Deflection 0.7 in
Suggested Max Load 9.5 lbf
Total Coils 30.5
Wire Diameter 0.041 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3183
Ends Closed & Ground
Finish None
Free Length 54.1 mm
Inside Diameter 4.27 mm
Material 302/304 Stainless Steel
Outside Diameter 6.35 mm
Part Type Standard
Rate 2.45 N/mm
SKU S-3183CS
Solid Length 31.75 mm
Suggested Max Deflection 17.78 mm
Suggested Max Load 42.26 N
Total Coils 30.5
Wire Diameter 1.04 mm
The S-3183CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.041" diameter 302/304 stainless steel, the S-3183 spring design exhibits reliable strength across its 30.5 active coils, withstanding repeated compression cycles with a maximum load of 9.5 lbf without succumbing to fatigue.

We manufacture the S-3183 design to provide a compression spring that is 2.13" long at rest and provides a consistent rate of 14 lbs/in along its recommended maximum of 0.7" deflection. For best results, your application should fully accommodate the inner (0.168") and outer (0.25") diameters of this spring and be designed for its closed & ground end configuration.
