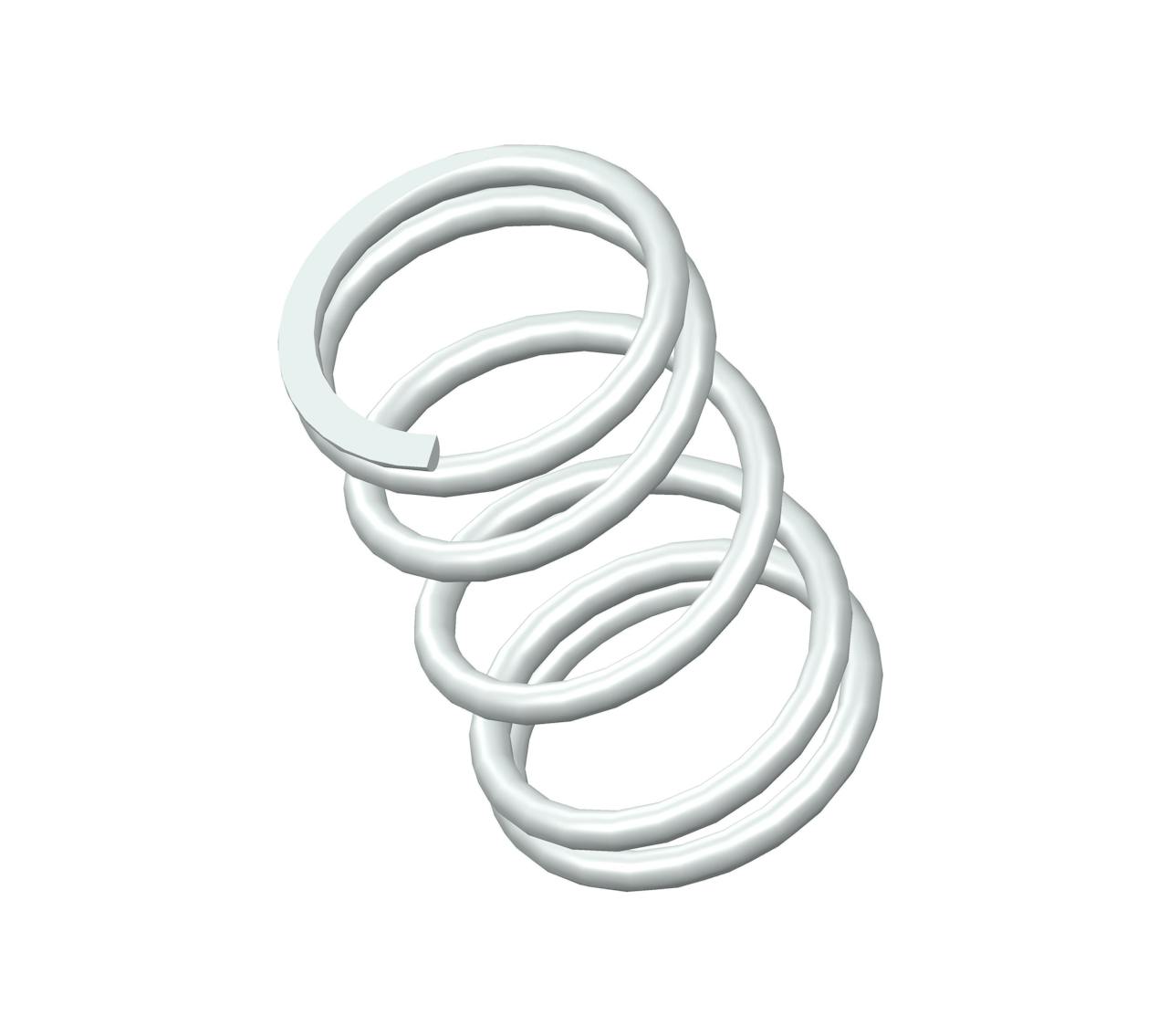

S-3181CS - 0.69" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.338".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3181 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.69 in |
| Inside Diameter | 0.338 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 18 lbs/in |
| SKU | S-3181CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.32 in |
| Suggested Max Load | 5.9 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.041 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3181 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 17.53 mm |
| Inside Diameter | 8.59 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 3.15 N/mm |
| SKU | S-3181CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 8.13 mm |
| Suggested Max Load | 26.24 N |
| Total Coils | 5.5 |
| Wire Diameter | 1.04 mm |
The compression spring S-3181CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3181 compression spring design exhibits exceptional tensile strength and resilience.
The S-3181 design is manufactured with a free length of 0.69", with an outer diameter of 0.42", an inner diameter of 0.338", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.
The S-3181CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3181 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3181 design is manufactured with a free length of 0.69", with an outer diameter of 0.42", an inner diameter of 0.338", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 18 lbs/in.
The S-3181CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3181 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
