S-3177CS - 0.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

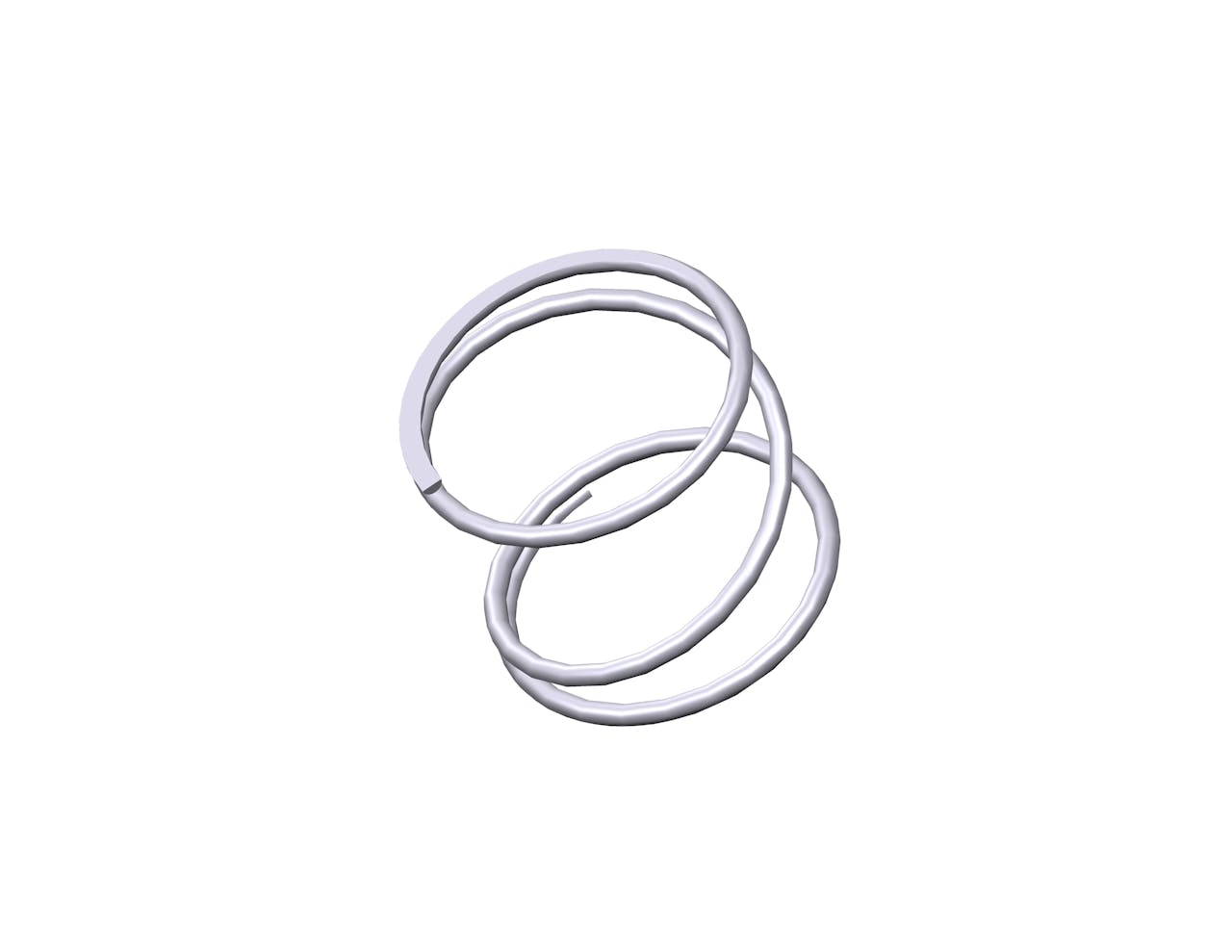

Compression spring manufactured from 302/304 stainless steel with 3.25 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.767".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3177 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.767 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.875 in |
| Part Type | Standard |
| Rate | 15 lbs/in |
| SKU | S-3177CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.4 in |
| Suggested Max Load | 6.2 lbf |
| Total Coils | 3.25 |
| Wire Diameter | 0.054 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3177 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 19.48 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 22.23 mm |
| Part Type | Standard |
| Rate | 2.63 N/mm |
| SKU | S-3177CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 10.16 mm |
| Suggested Max Load | 27.58 N |
| Total Coils | 3.25 |
| Wire Diameter | 1.37 mm |
The S-3177 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-3177CS compression spring is designed with a free length of 5" total of 10 coils, and a rate of 5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-3177 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-3177CS compression spring is designed with a free length of 5" total of 10 coils, and a rate of 5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-3177 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
