S-3169CS - 8.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

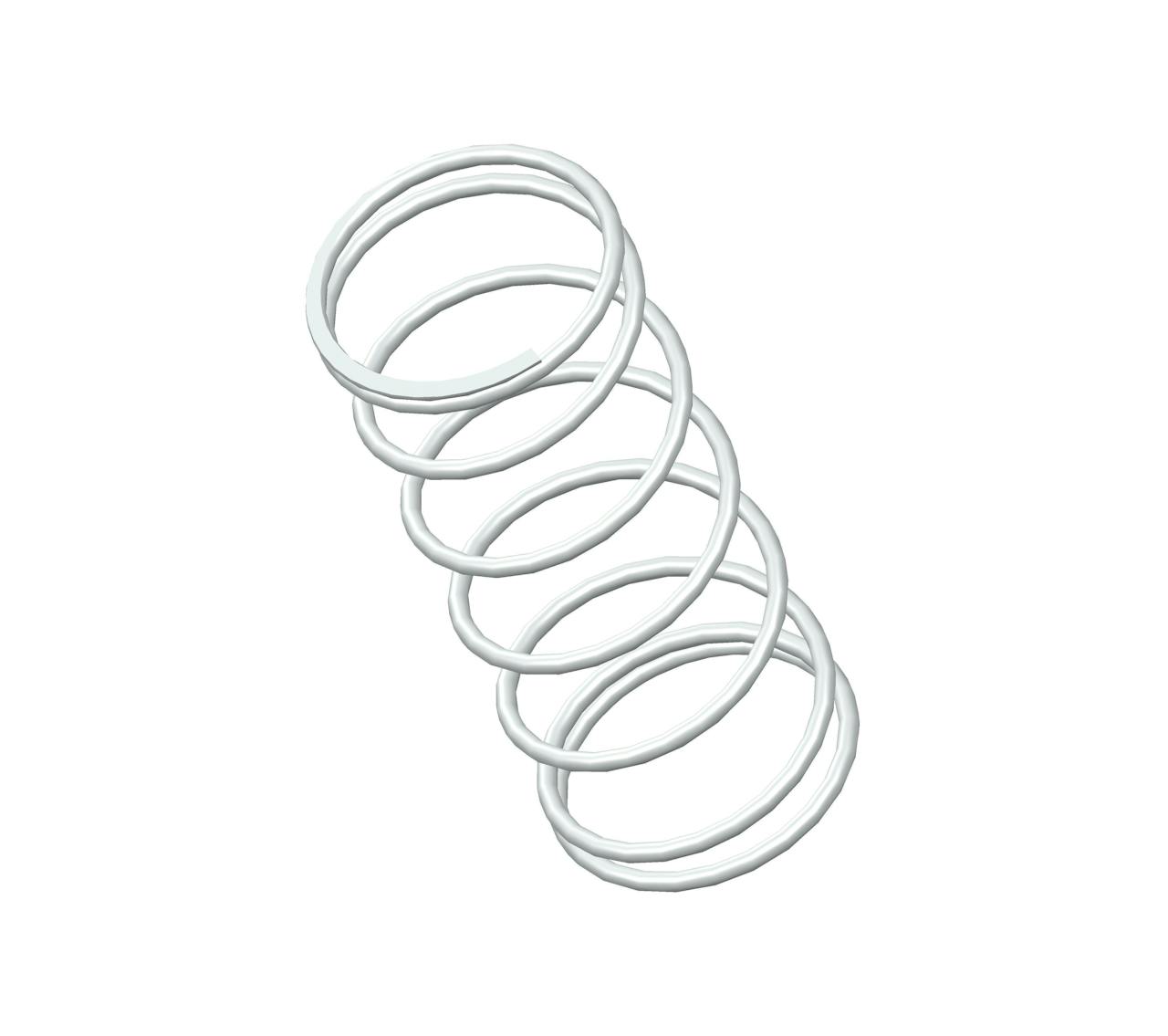

Compression spring manufactured from 302/304 stainless steel with 7.75 coils and closed ends. This spring features an O.D. of 3.5", and an I.D. of 3.064".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3169
Ends Closed
Finish None
Free Length 8.5 in
Inside Diameter 3.064 in
Material 302/304 Stainless Steel
Outside Diameter 3.5 in
Part Type Standard
Rate 14 lbs/in
SKU S-3169CS
Solid Length 1.91 in
Suggested Max Deflection 5.4 in
Suggested Max Load 75 lbf
Total Coils 7.75
Wire Diameter 0.218 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3169
Ends Closed
Finish None
Free Length 215.9 mm
Inside Diameter 77.83 mm
Material 302/304 Stainless Steel
Outside Diameter 88.9 mm
Part Type Standard
Rate 2.45 N/mm
SKU S-3169CS
Solid Length 48.51 mm
Suggested Max Deflection 137.16 mm
Suggested Max Load 333.6 N
Total Coils 7.75
Wire Diameter 5.54 mm
The S-3169 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-3169CS compression spring is designed with a free length of 5.5" total of 7 coils, and a rate of 5 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-3169 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
