S-3165CS - 2.69" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

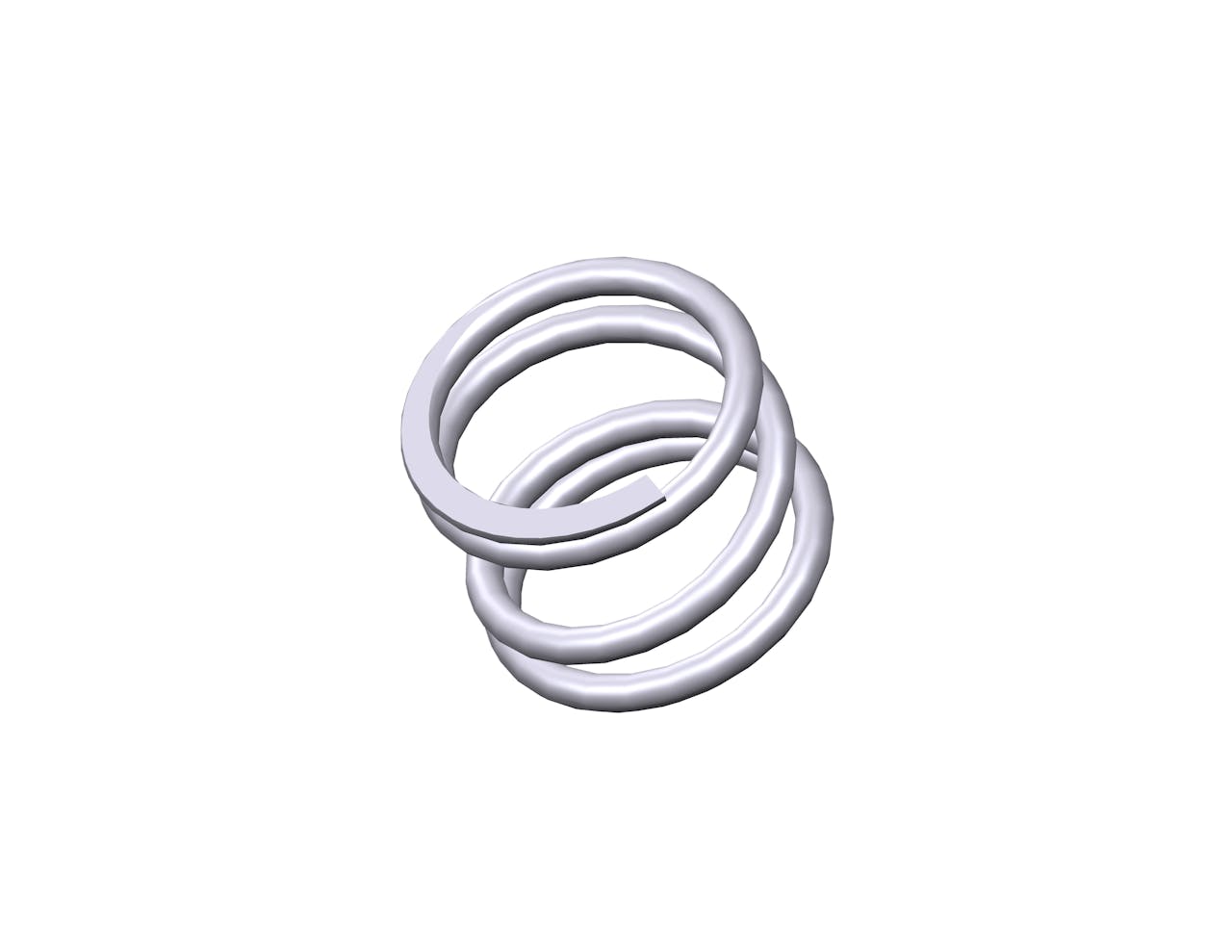

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 1.468", and an I.D. of 1.258".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3165 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.69 in |
| Inside Diameter | 1.258 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.468 in |
| Part Type | Standard |
| Rate | 12 lbs/in |
| SKU | S-3165CS |
| Solid Length | 0.74 in |
| Suggested Max Deflection | 2 in |
| Suggested Max Load | 23 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3165 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 68.33 mm |
| Inside Diameter | 31.95 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 37.29 mm |
| Part Type | Standard |
| Rate | 2.1 N/mm |
| SKU | S-3165CS |
| Solid Length | 18.8 mm |
| Suggested Max Deflection | 50.8 mm |
| Suggested Max Load | 102.3 N |
| Total Coils | 7 |
| Wire Diameter | 2.67 mm |
The compression spring S-3165CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3165 compression spring design exhibits exceptional tensile strength and resilience.
The S-3165 design is manufactured with a free length of 2.69", with an outer diameter of 1.468", an inner diameter of 1.258", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The S-3165CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3165 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3165 design is manufactured with a free length of 2.69", with an outer diameter of 1.468", an inner diameter of 1.258", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 12 lbs/in.
The S-3165CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3165 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
