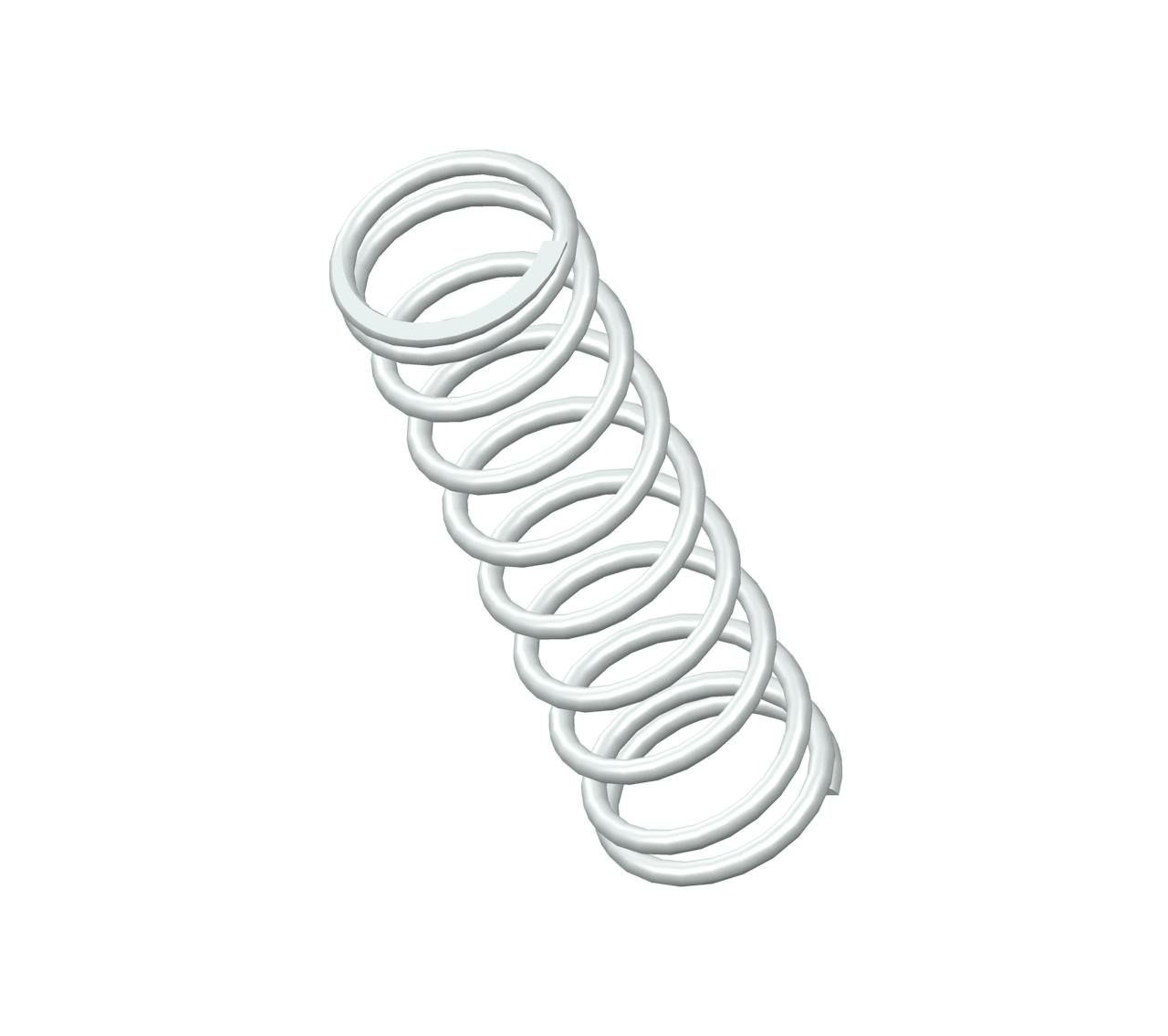

S-3162CS - 3.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed ends. This spring features an O.D. of 0.938", and an I.D. of 0.752".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3162 |
| Ends | Closed |
| Finish | None |
| Free Length | 3.25 in |
| Inside Diameter | 0.752 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.938 in |
| Part Type | Standard |
| Rate | 19 lbs/in |
| SKU | S-3162CS |
| Solid Length | 1.02 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 26 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.093 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3162 |
| Ends | Closed |
| Finish | None |
| Free Length | 82.55 mm |
| Inside Diameter | 19.1 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 23.83 mm |
| Part Type | Standard |
| Rate | 3.33 N/mm |
| SKU | S-3162CS |
| Solid Length | 25.91 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 115.65 N |
| Total Coils | 10 |
| Wire Diameter | 2.36 mm |
The compression spring S-3162CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3162 compression spring design exhibits exceptional tensile strength and resilience.
The S-3162 design is manufactured with a free length of 3.25", with an outer diameter of 0.938", an inner diameter of 0.752", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The S-3162CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3162 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
