Century Spring

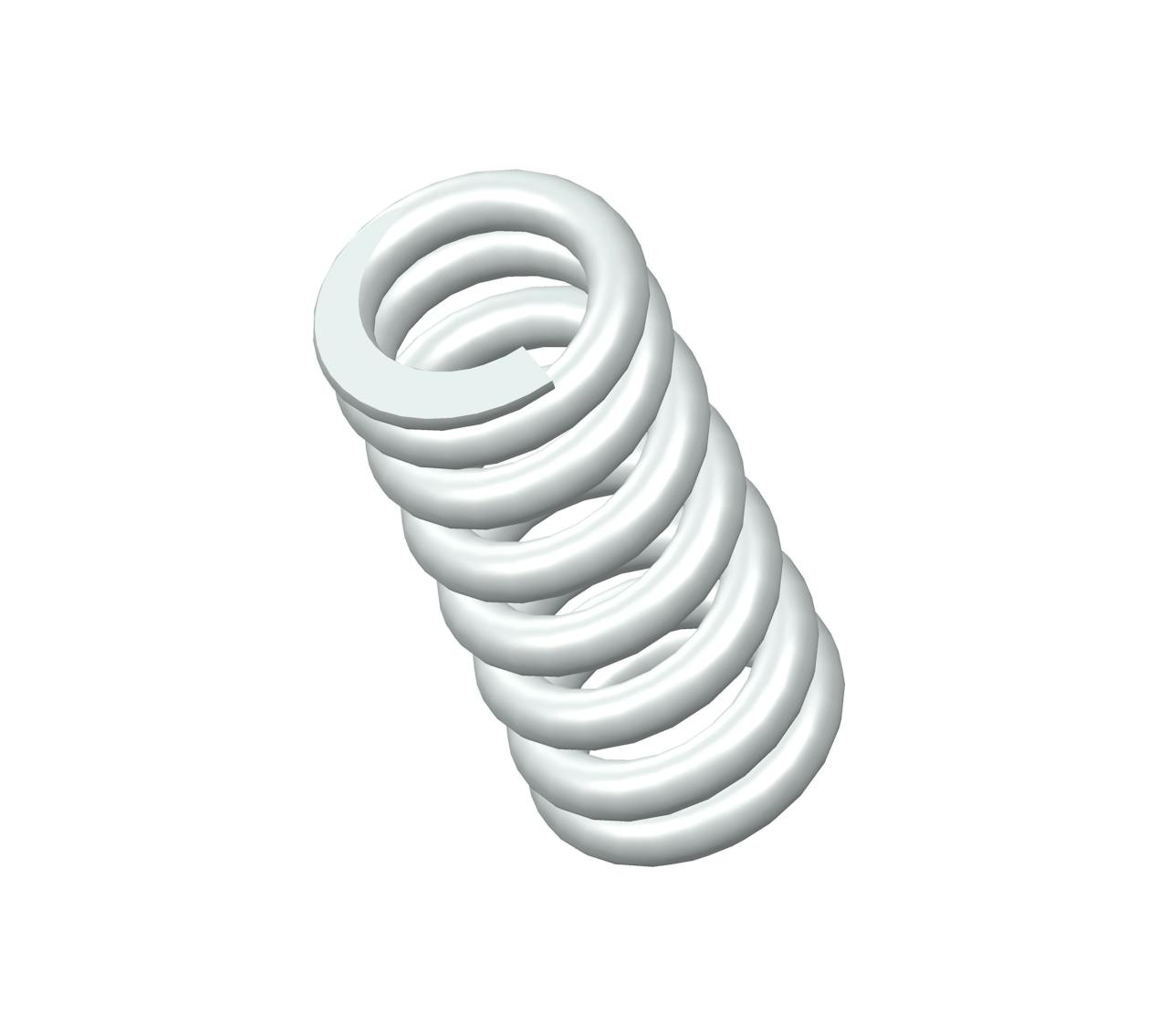

S-3127CS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 8 coils and closed & ground ends. This spring features an O.D. of 0.343", and an I.D. of 0.219".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3127
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.219 in
Material 302/304 Stainless Steel
Outside Diameter 0.343 in
Part Type Standard
Rate 145 lbs/in
SKU S-3127CS
Solid Length 0.498 in
Suggested Max Deflection 0.155 in
Suggested Max Load 22.5 lbf
Total Coils 8
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3127
Ends Closed & Ground
Finish None
Free Length 19.05 mm
Inside Diameter 5.56 mm
Material 302/304 Stainless Steel
Outside Diameter 8.71 mm
Part Type Standard
Rate 25.39 N/mm
SKU S-3127CS
Solid Length 12.65 mm
Suggested Max Deflection 3.94 mm
Suggested Max Load 100.08 N
Total Coils 8
Wire Diameter 1.59 mm
The compression spring S-3127CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3127 compression spring design exhibits exceptional tensile strength and resilience.

The S-3127 design is manufactured with a free length of 0.75", with an outer diameter of 0.343", an inner diameter of 0.219", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 145 lbs/in.

The S-3127CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-3127 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
