S-3112CS - 3.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

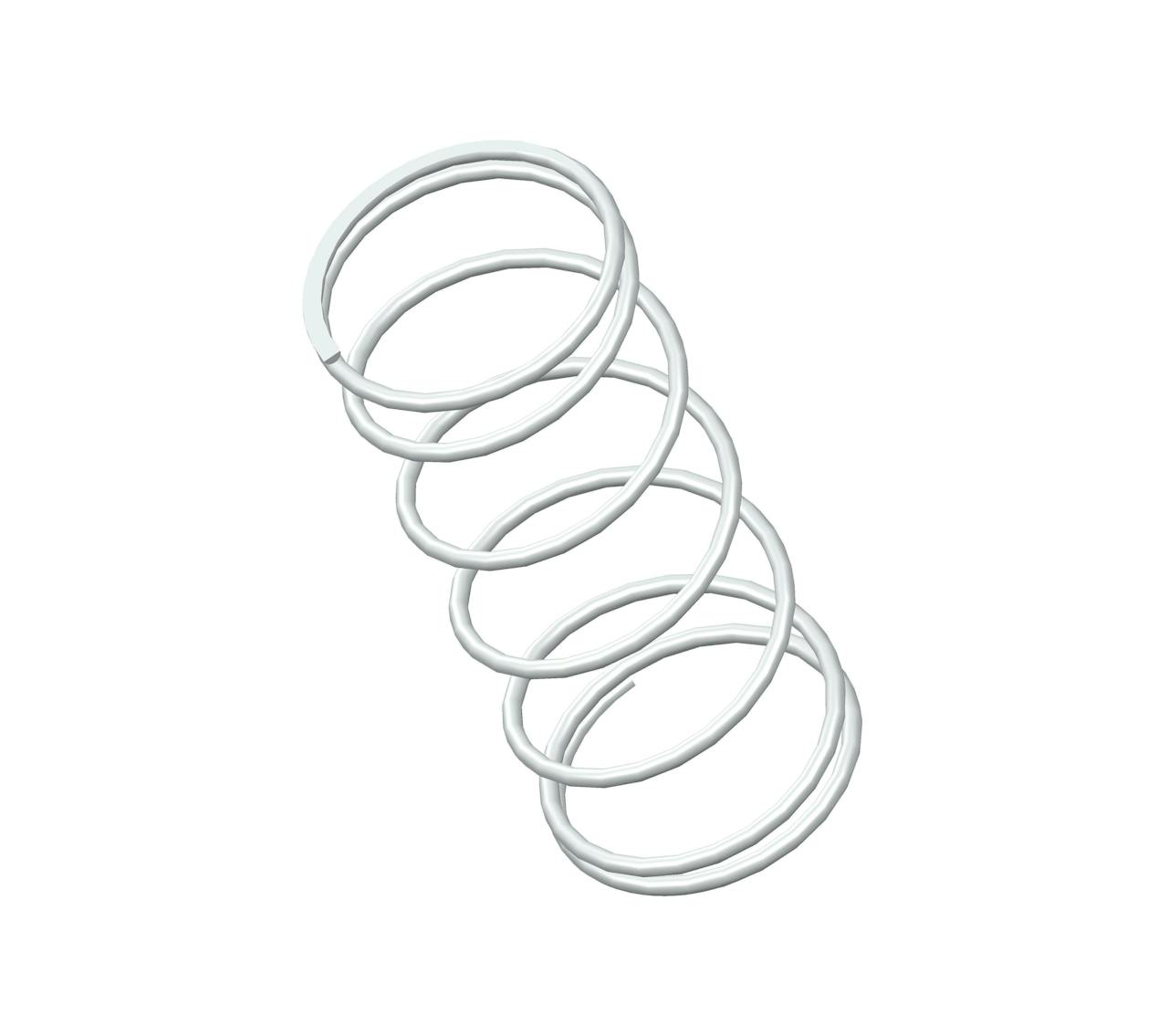

Compression spring manufactured from 302/304 stainless steel with 7.25 coils and closed ends. This spring features an O.D. of 1.359", and an I.D. of 1.199".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3112 |
| Ends | Closed |
| Finish | None |
| Free Length | 3.25 in |
| Inside Diameter | 1.199 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.359 in |
| Part Type | Standard |
| Rate | 4.7 lbs/in |
| SKU | S-3112CS |
| Solid Length | 0.66 in |
| Suggested Max Deflection | 2.6 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 7.25 |
| Wire Diameter | 0.08 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3112 |
| Ends | Closed |
| Finish | None |
| Free Length | 82.55 mm |
| Inside Diameter | 30.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 34.52 mm |
| Part Type | Standard |
| Rate | 0.82 N/mm |
| SKU | S-3112CS |
| Solid Length | 16.76 mm |
| Suggested Max Deflection | 66.04 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 7.25 |
| Wire Diameter | 2.03 mm |
The compression spring S-3112CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3112 compression spring design exhibits exceptional tensile strength and resilience.
The S-3112 design is manufactured with a free length of 3.25", with an outer diameter of 1.359", an inner diameter of 1.199", and a total of 7.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.7 lbs/in.
The S-3112CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3112 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3112 design is manufactured with a free length of 3.25", with an outer diameter of 1.359", an inner diameter of 1.199", and a total of 7.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.7 lbs/in.
The S-3112CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3112 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
