Century Spring

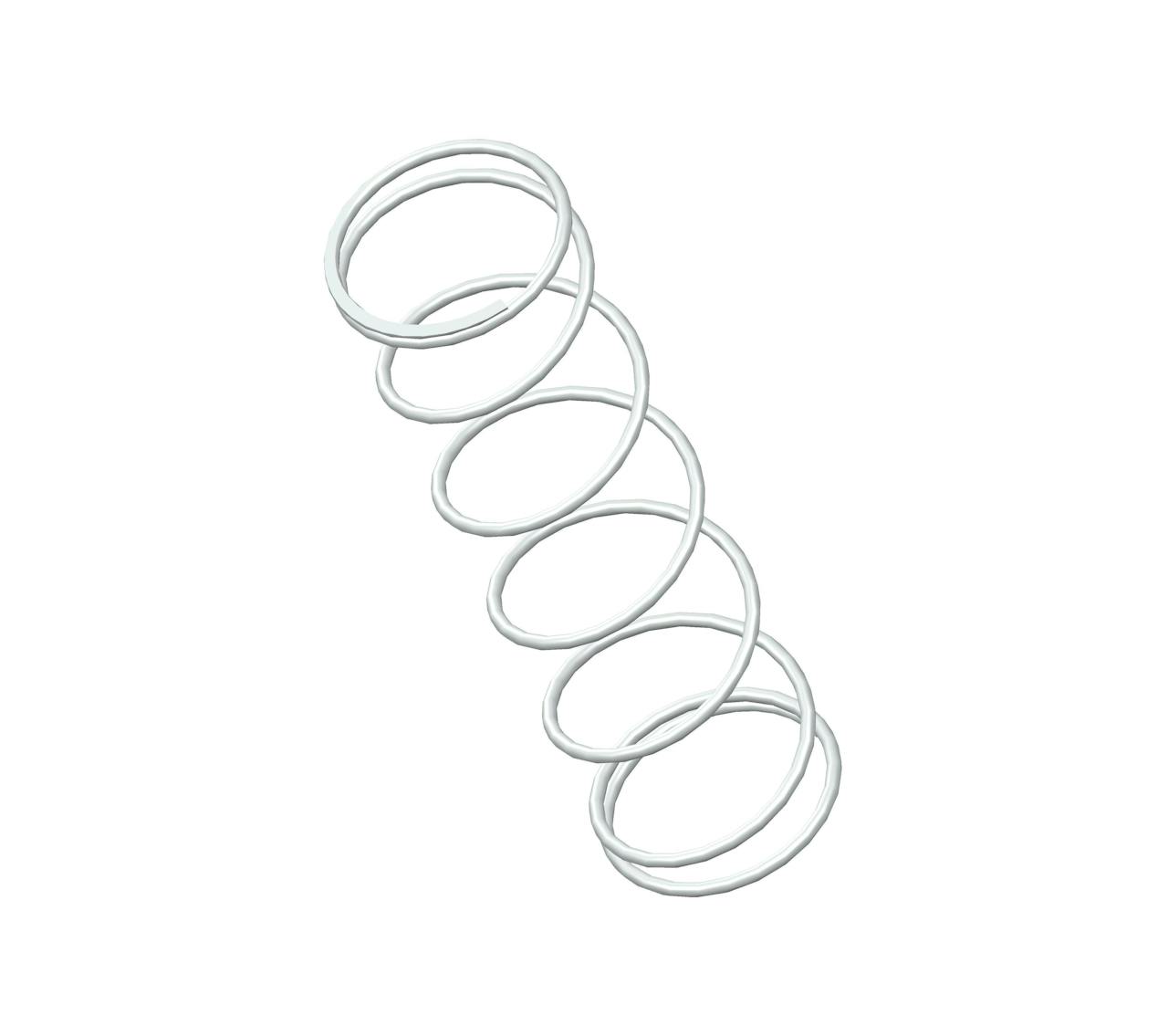

S-3110CS - 5.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 7.75 coils and closed & ground ends. This spring features an O.D. of 1.562", and an I.D. of 1.38".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3110
Ends Closed & Ground
Finish None
Free Length 5.5 in
Inside Diameter 1.38 in
Material 302/304 Stainless Steel
Outside Diameter 1.562 in
Part Type Standard
Rate 4.7 lbs/in
SKU S-3110CS
Solid Length 0.71 in
Suggested Max Deflection 3.2 in
Suggested Max Load 15 lbf
Total Coils 7.75
Wire Diameter 0.091 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3110
Ends Closed & Ground
Finish None
Free Length 139.7 mm
Inside Diameter 35.05 mm
Material 302/304 Stainless Steel
Outside Diameter 39.67 mm
Part Type Standard
Rate 0.82 N/mm
SKU S-3110CS
Solid Length 18.03 mm
Suggested Max Deflection 81.28 mm
Suggested Max Load 66.72 N
Total Coils 7.75
Wire Diameter 2.31 mm
The S-3110 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-3110CS compression spring is designed with a free length of 1" total of 5 coils, and a rate of 28 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-3110 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
