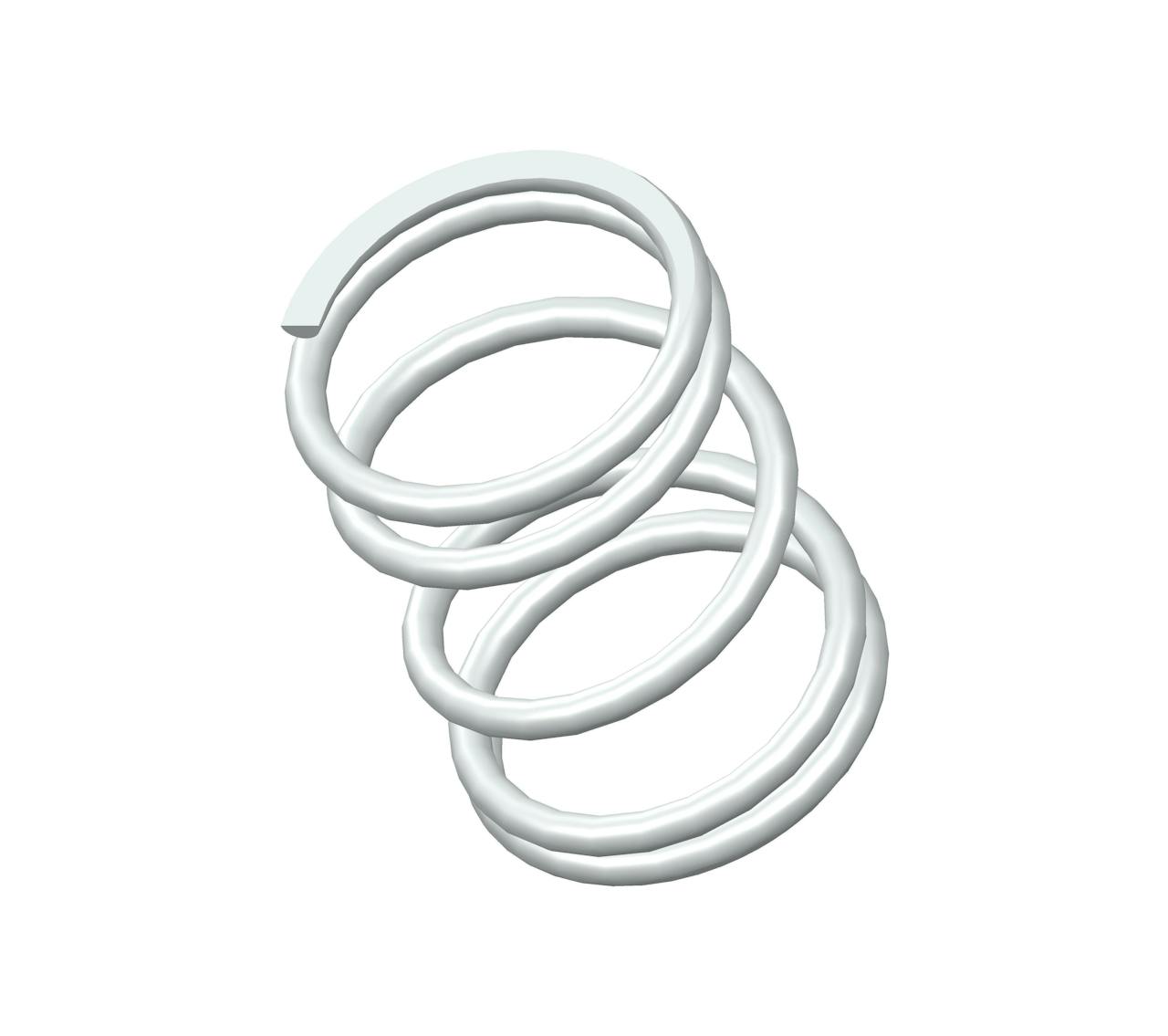

S-310CS - 1" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.734", and an I.D. of 0.6".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-310 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.6 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.734 in |
| Part Type | Standard |
| Rate | 28 lbs/in |
| SKU | S-310CS |
| Solid Length | 0.34 in |
| Suggested Max Deflection | 0.49 in |
| Suggested Max Load | 14 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.067 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-310 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 15.24 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 18.64 mm |
| Part Type | Standard |
| Rate | 4.9 N/mm |
| SKU | S-310CS |
| Solid Length | 8.64 mm |
| Suggested Max Deflection | 12.45 mm |
| Suggested Max Load | 62.27 N |
| Total Coils | 5 |
| Wire Diameter | 1.7 mm |
The compression spring S-310CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-310 compression spring design exhibits exceptional tensile strength and resilience.
The S-310 design is manufactured with a free length of 1", with an outer diameter of 0.734", an inner diameter of 0.6", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The S-310CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-310 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-310 design is manufactured with a free length of 1", with an outer diameter of 0.734", an inner diameter of 0.6", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 28 lbs/in.
The S-310CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-310 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
