S-3104CS - 0.88" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

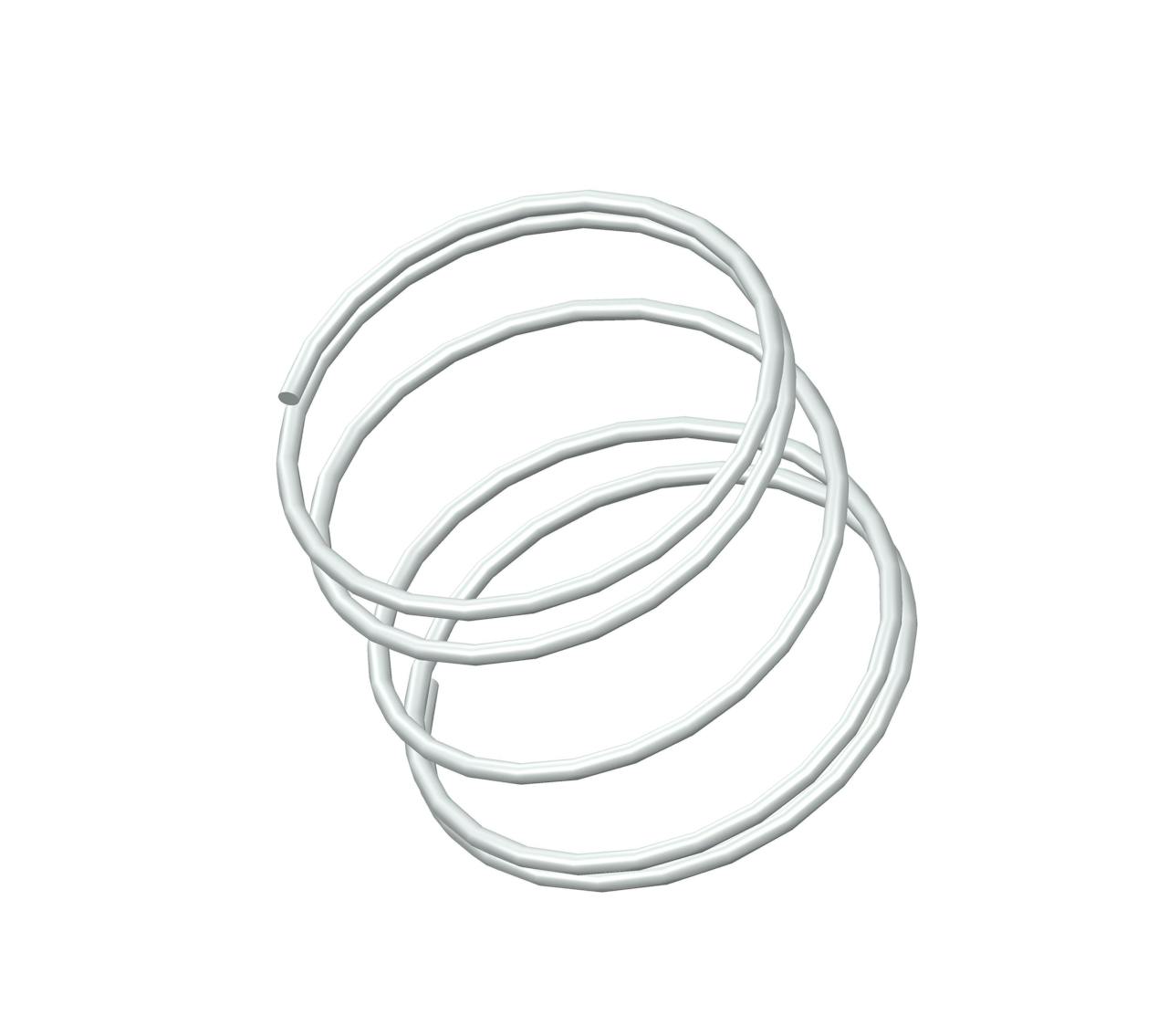

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.984", and an I.D. of 0.904".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3104
Ends Closed
Finish None
Free Length 0.88 in
Inside Diameter 0.904 in
Material 302/304 Stainless Steel
Outside Diameter 0.984 in
Part Type Standard
Rate 1.3 lbs/in
SKU S-3104CS
Solid Length 0.24 in
Suggested Max Deflection 0.64 in
Suggested Max Load 0.81 lbf
Total Coils 5
Wire Diameter 0.04 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3104
Ends Closed
Finish None
Free Length 22.35 mm
Inside Diameter 22.96 mm
Material 302/304 Stainless Steel
Outside Diameter 24.99 mm
Part Type Standard
Rate 0.23 N/mm
SKU S-3104CS
Solid Length 6.1 mm
Suggested Max Deflection 16.26 mm
Suggested Max Load 3.6 N
Total Coils 5
Wire Diameter 1.02 mm
The compression spring S-3104CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3104 compression spring design exhibits exceptional tensile strength and resilience.

The S-3104 design is manufactured with a free length of 0.88", with an outer diameter of 0.984", an inner diameter of 0.904", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.3 lbs/in.

The S-3104CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-3104 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
