S-3091CS - 0.88" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

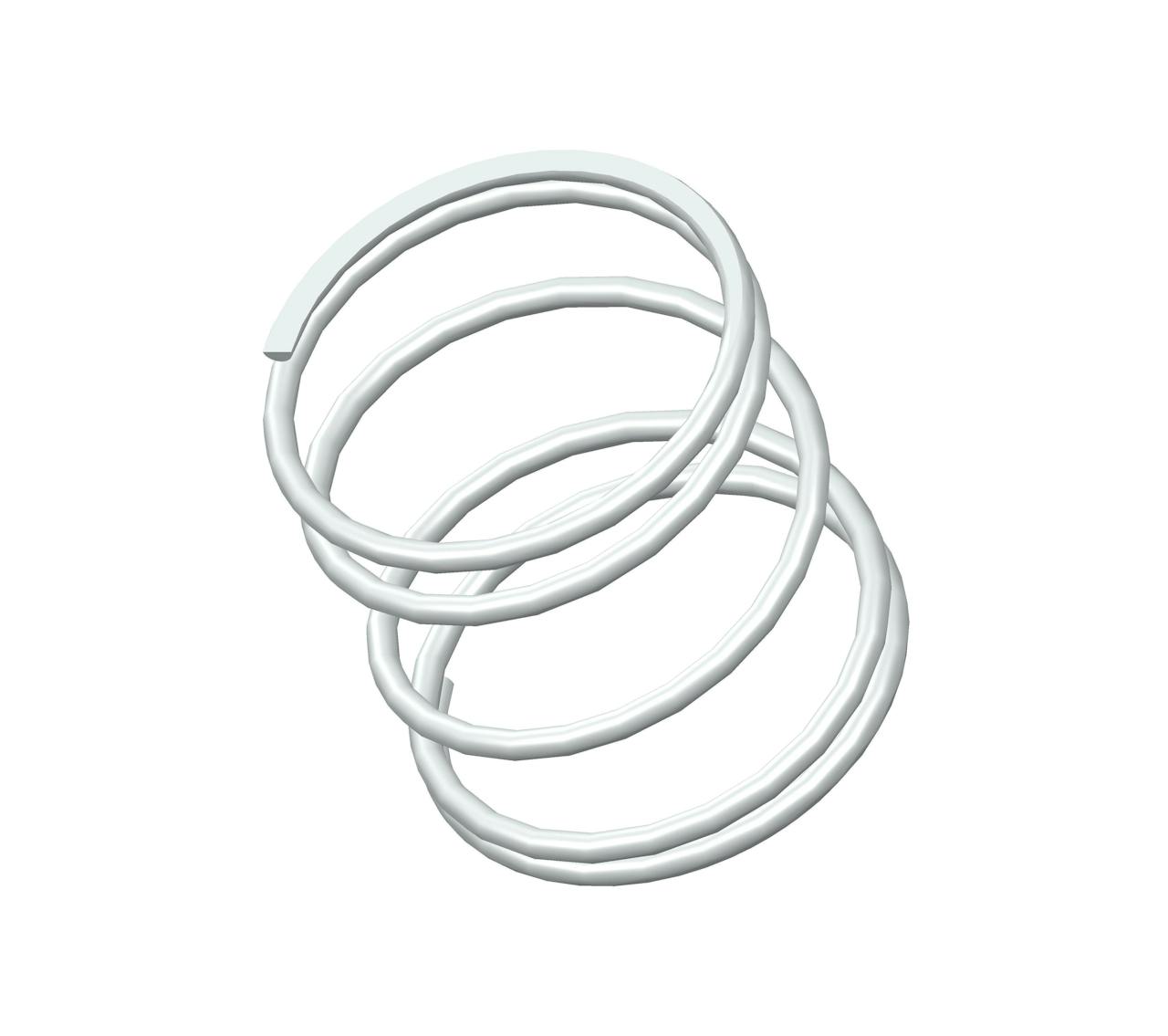

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.859", and an I.D. of 0.757".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3091 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.88 in |
| Inside Diameter | 0.757 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.859 in |
| Part Type | Standard |
| Rate | 5.3 lbs/in |
| SKU | S-3091CS |
| Solid Length | 0.31 in |
| Suggested Max Deflection | 0.57 in |
| Suggested Max Load | 3 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3091 |
| Ends | Closed |
| Finish | None |
| Free Length | 22.35 mm |
| Inside Diameter | 19.23 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 21.82 mm |
| Part Type | Standard |
| Rate | 0.93 N/mm |
| SKU | S-3091CS |
| Solid Length | 7.87 mm |
| Suggested Max Deflection | 14.48 mm |
| Suggested Max Load | 13.34 N |
| Total Coils | 5 |
| Wire Diameter | 1.3 mm |
The compression spring S-3091CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3091 compression spring design exhibits exceptional tensile strength and resilience.
The S-3091 design is manufactured with a free length of 0.88", with an outer diameter of 0.859", an inner diameter of 0.757", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.3 lbs/in.
The S-3091CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3091 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3091 design is manufactured with a free length of 0.88", with an outer diameter of 0.859", an inner diameter of 0.757", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.3 lbs/in.
The S-3091CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3091 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
