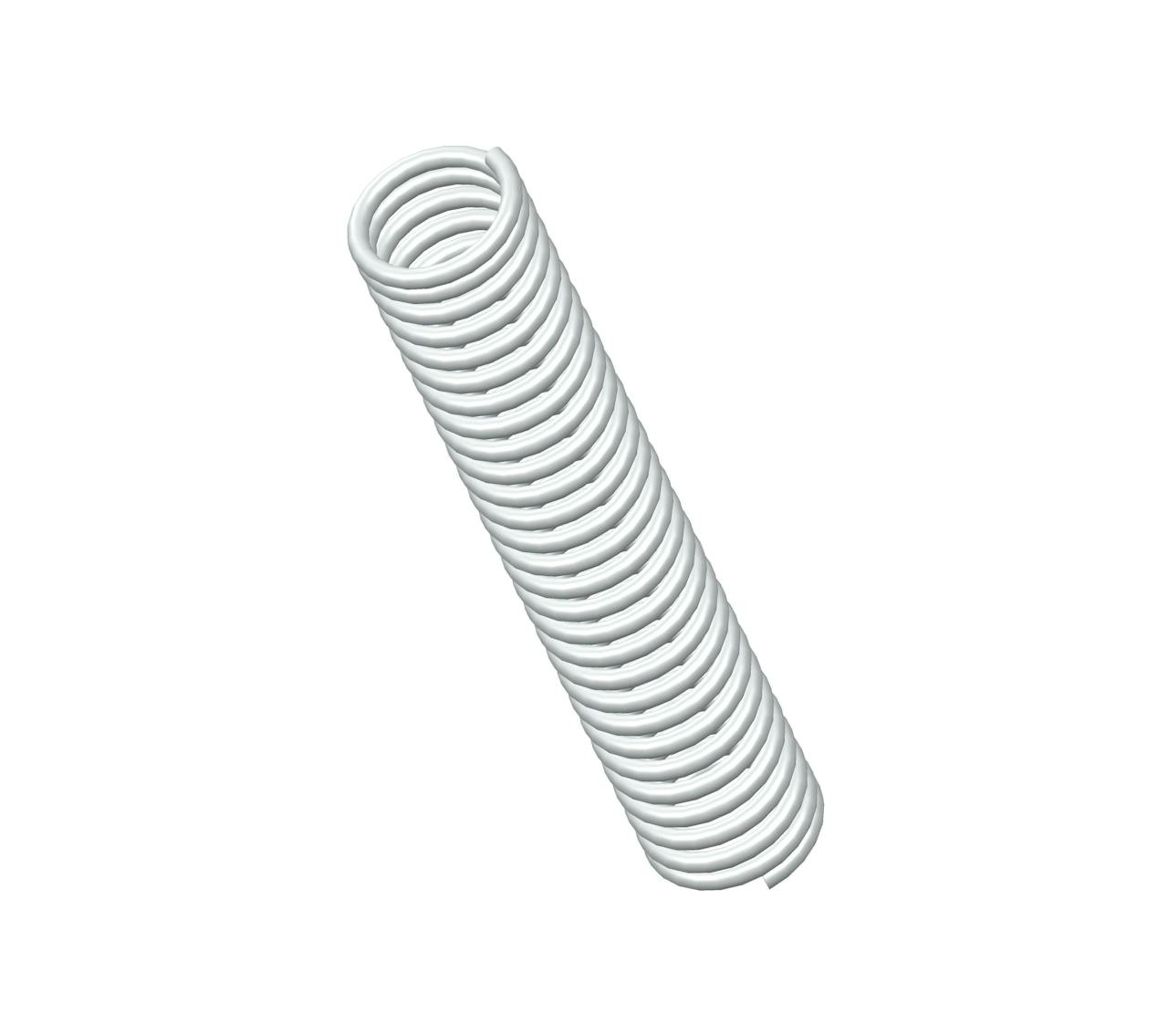

S-3089CS - 2.88" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 29 coils and closed ends. This spring features an O.D. of 0.531", and an I.D. of 0.407".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3089 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.88 in |
| Inside Diameter | 0.407 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.531 in |
| Part Type | Standard |
| Rate | 6.8 lbs/in |
| SKU | S-3089CS |
| Solid Length | 1.892 in |
| Suggested Max Deflection | 0.988 in |
| Suggested Max Load | 6.7 lbf |
| Total Coils | 29 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3089 |
| Ends | Closed |
| Finish | None |
| Free Length | 73.15 mm |
| Inside Diameter | 10.34 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.49 mm |
| Part Type | Standard |
| Rate | 1.19 N/mm |
| SKU | S-3089CS |
| Solid Length | 48.06 mm |
| Suggested Max Deflection | 25.1 mm |
| Suggested Max Load | 29.8 N |
| Total Coils | 29 |
| Wire Diameter | 1.59 mm |
The compression spring S-3089CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3089 compression spring design exhibits exceptional tensile strength and resilience.
The S-3089 design is manufactured with a free length of 2.88", with an outer diameter of 0.531", an inner diameter of 0.407", and a total of 29 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.8 lbs/in.
The S-3089CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3089 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3089 design is manufactured with a free length of 2.88", with an outer diameter of 0.531", an inner diameter of 0.407", and a total of 29 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.8 lbs/in.
The S-3089CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3089 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
