S-3061CS - 3.13" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

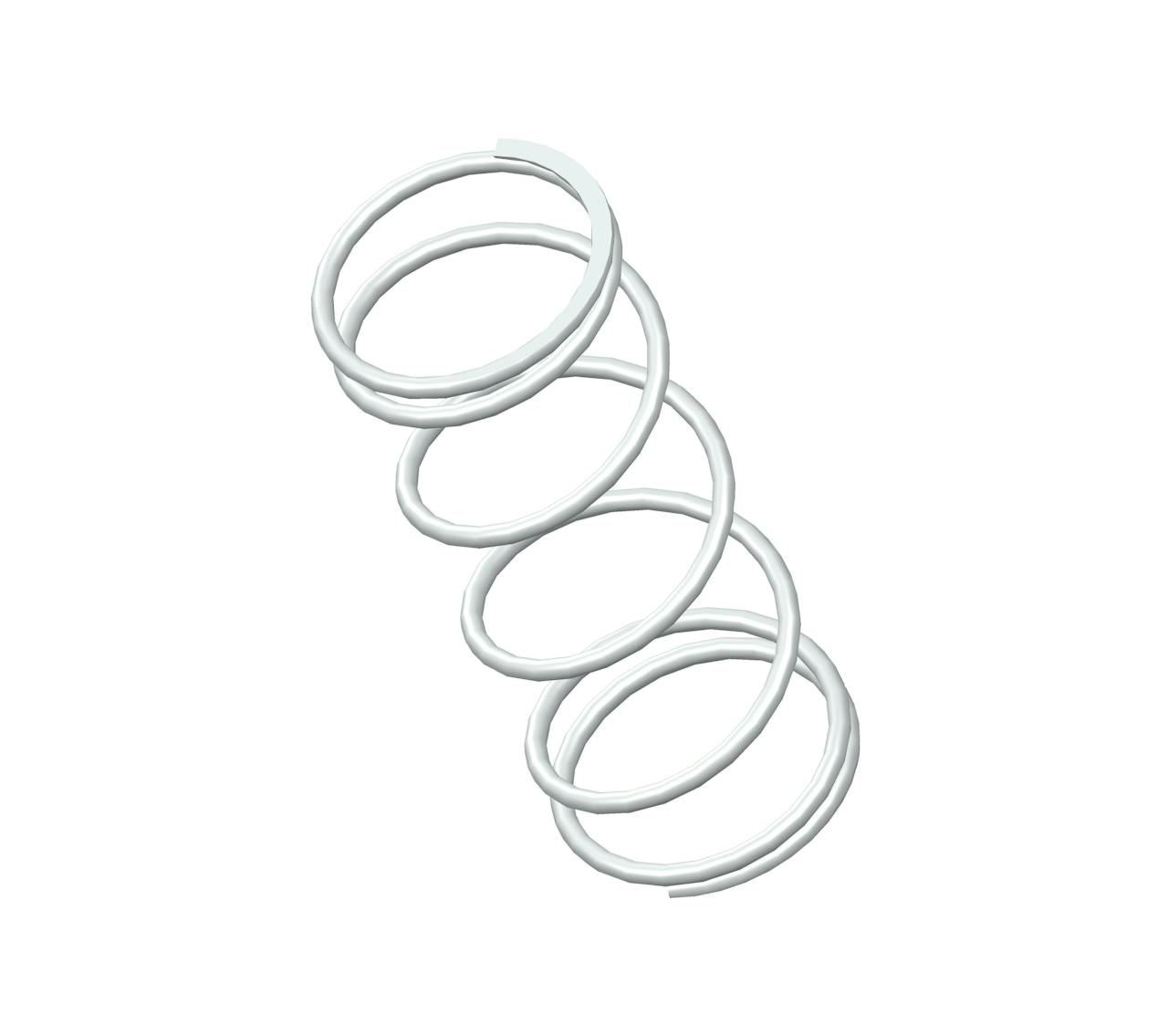

Compression spring manufactured from 302/304 stainless steel with 6.5 coils and closed ends. This spring features an O.D. of 1.234", and an I.D. of 1.062".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3061 |
| Ends | Closed |
| Finish | None |
| Free Length | 3.13 in |
| Inside Diameter | 1.062 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.234 in |
| Part Type | Standard |
| Rate | 10 lbs/in |
| SKU | S-3061CS |
| Solid Length | 0.65 in |
| Suggested Max Deflection | 1.7 in |
| Suggested Max Load | 17 lbf |
| Total Coils | 6.5 |
| Wire Diameter | 0.086 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3061 |
| Ends | Closed |
| Finish | None |
| Free Length | 79.5 mm |
| Inside Diameter | 26.97 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 31.34 mm |
| Part Type | Standard |
| Rate | 1.75 N/mm |
| SKU | S-3061CS |
| Solid Length | 16.51 mm |
| Suggested Max Deflection | 43.18 mm |
| Suggested Max Load | 75.62 N |
| Total Coils | 6.5 |
| Wire Diameter | 2.18 mm |
The compression spring S-3061CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3061 compression spring design exhibits exceptional tensile strength and resilience.
The S-3061 design is manufactured with a free length of 3.13", with an outer diameter of 1.234", an inner diameter of 1.062", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 10 lbs/in.
The S-3061CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3061 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
