S-303CS - 3.59" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

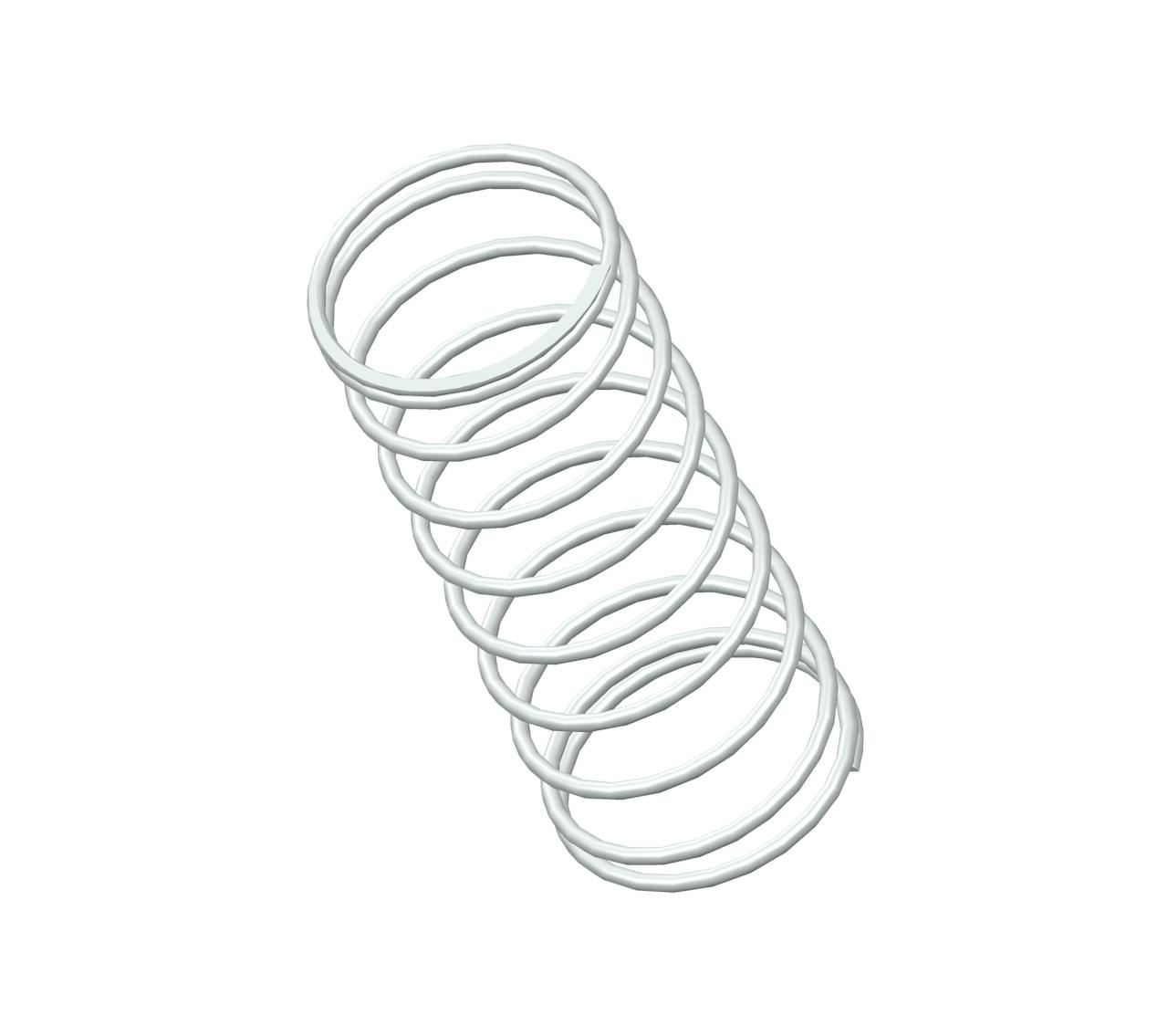

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 1.437", and an I.D. of 1.277".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-303 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.59 in |
| Inside Diameter | 1.277 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.437 in |
| Part Type | Standard |
| Rate | 2.6 lbs/in |
| SKU | S-303CS |
| Solid Length | 0.8 in |
| Suggested Max Deflection | 2.8 in |
| Suggested Max Load | 7.3 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.08 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-303 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 91.19 mm |
| Inside Diameter | 32.44 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 36.5 mm |
| Part Type | Standard |
| Rate | 0.46 N/mm |
| SKU | S-303CS |
| Solid Length | 20.32 mm |
| Suggested Max Deflection | 71.12 mm |
| Suggested Max Load | 32.47 N |
| Total Coils | 10 |
| Wire Diameter | 2.03 mm |
The compression spring S-303CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-303 compression spring design exhibits exceptional tensile strength and resilience.
The S-303 design is manufactured with a free length of 3.59", with an outer diameter of 1.437", an inner diameter of 1.277", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.6 lbs/in.
The S-303CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-303 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-303 design is manufactured with a free length of 3.59", with an outer diameter of 1.437", an inner diameter of 1.277", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.6 lbs/in.
The S-303CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-303 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
