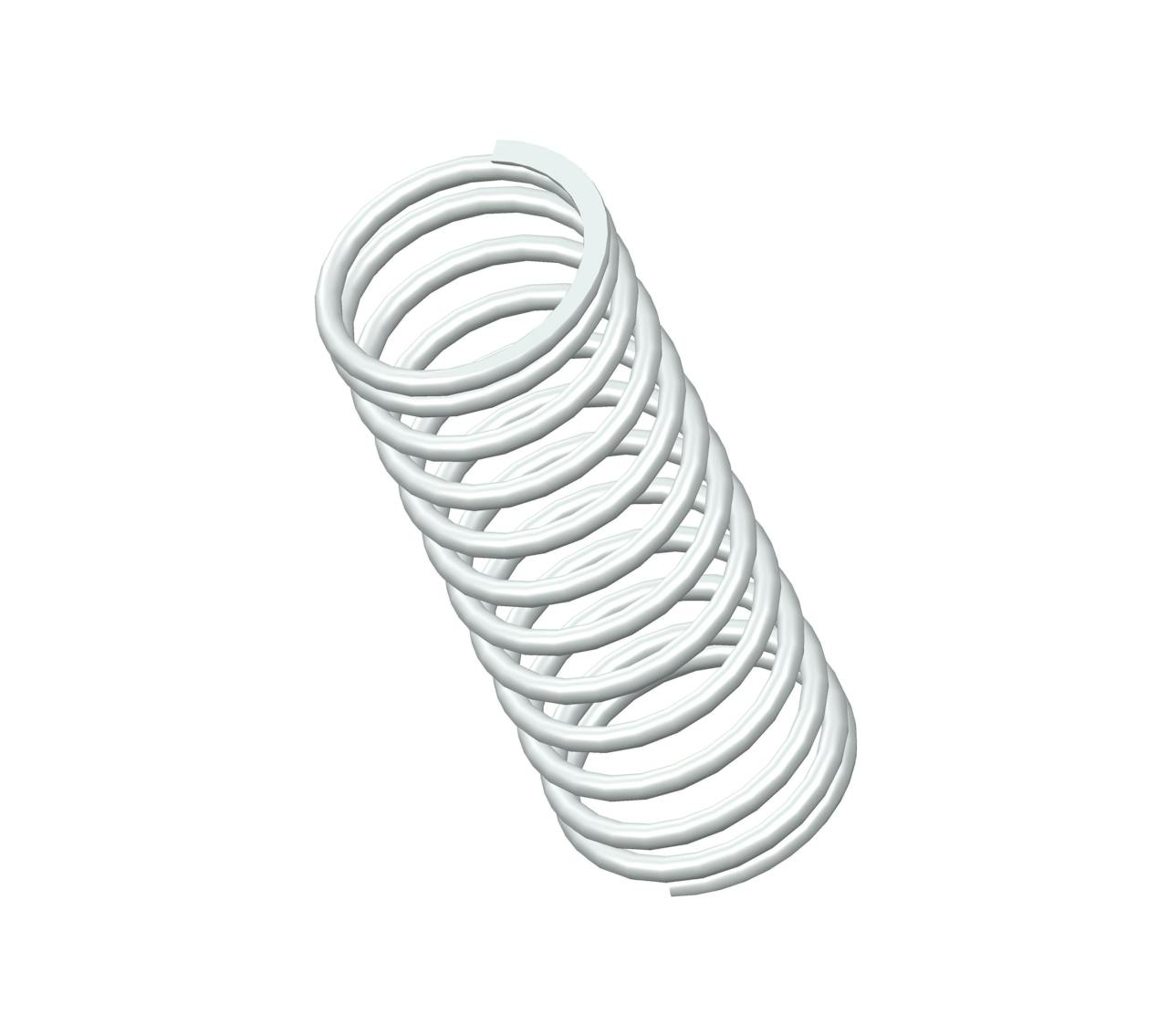

S-3023CS - 5.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 12.5 coils and closed & ground ends. This spring features an O.D. of 2.109", and an I.D. of 1.749".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3023 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 5.5 in |
| Inside Diameter | 1.749 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 2.109 in |
| Part Type | Standard |
| Rate | 17 lbs/in |
| SKU | S-3023CS |
| Solid Length | 2.25 in |
| Suggested Max Deflection | 3.3 in |
| Suggested Max Load | 57 lbf |
| Total Coils | 12.5 |
| Wire Diameter | 0.18 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3023 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 139.7 mm |
| Inside Diameter | 44.42 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 53.57 mm |
| Part Type | Standard |
| Rate | 2.98 N/mm |
| SKU | S-3023CS |
| Solid Length | 57.15 mm |
| Suggested Max Deflection | 83.82 mm |
| Suggested Max Load | 253.54 N |
| Total Coils | 12.5 |
| Wire Diameter | 4.57 mm |
The compression spring S-3023CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3023 compression spring design exhibits exceptional tensile strength and resilience.
The S-3023 design is manufactured with a free length of 5.5", with an outer diameter of 2.109", an inner diameter of 1.749", and a total of 12.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The S-3023CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3023 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
