S-3017CS - 3" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

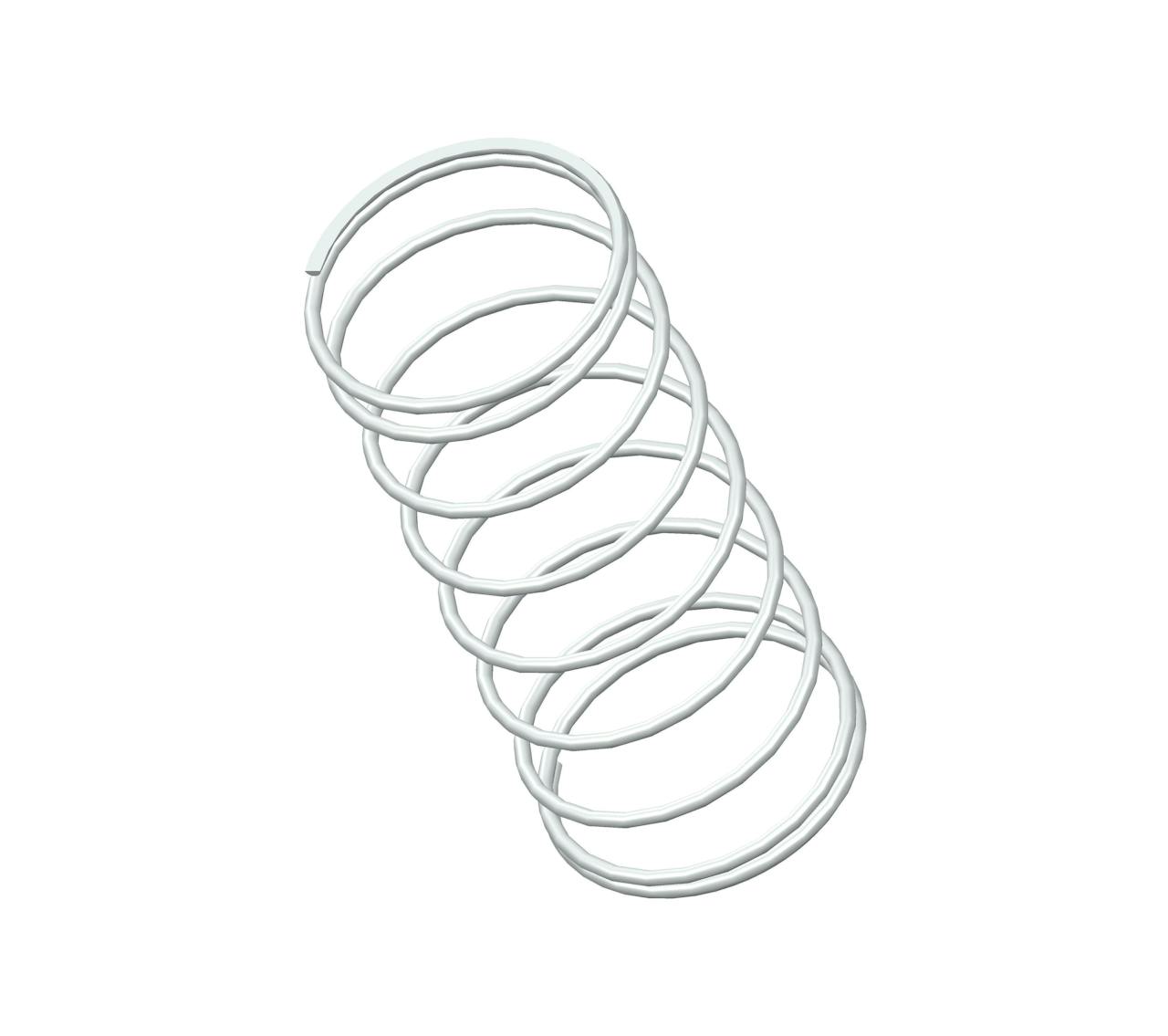

Compression spring manufactured from 302/304 stainless steel with 9.3 coils and closed ends. This spring features an O.D. of 1.296", and an I.D. of 1.172".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3017 |
| Ends | Closed |
| Finish | None |
| Free Length | 3 in |
| Inside Diameter | 1.172 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.296 in |
| Part Type | Standard |
| Rate | 1.4 lbs/in |
| SKU | S-3017CS |
| Solid Length | 0.641 in |
| Suggested Max Deflection | 2.359 in |
| Suggested Max Load | 3.3 lbf |
| Total Coils | 9.3 |
| Wire Diameter | 0.0625 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-3017 |
| Ends | Closed |
| Finish | None |
| Free Length | 76.2 mm |
| Inside Diameter | 29.77 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 32.92 mm |
| Part Type | Standard |
| Rate | 0.25 N/mm |
| SKU | S-3017CS |
| Solid Length | 16.28 mm |
| Suggested Max Deflection | 59.92 mm |
| Suggested Max Load | 14.68 N |
| Total Coils | 9.3 |
| Wire Diameter | 1.59 mm |
The compression spring S-3017CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-3017 compression spring design exhibits exceptional tensile strength and resilience.
The S-3017 design is manufactured with a free length of 3", with an outer diameter of 1.296", an inner diameter of 1.172", and a total of 9.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.4 lbs/in.
The S-3017CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3017 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-3017 design is manufactured with a free length of 3", with an outer diameter of 1.296", an inner diameter of 1.172", and a total of 9.3 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.4 lbs/in.
The S-3017CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-3017 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
