S-3016CS - 9.38" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

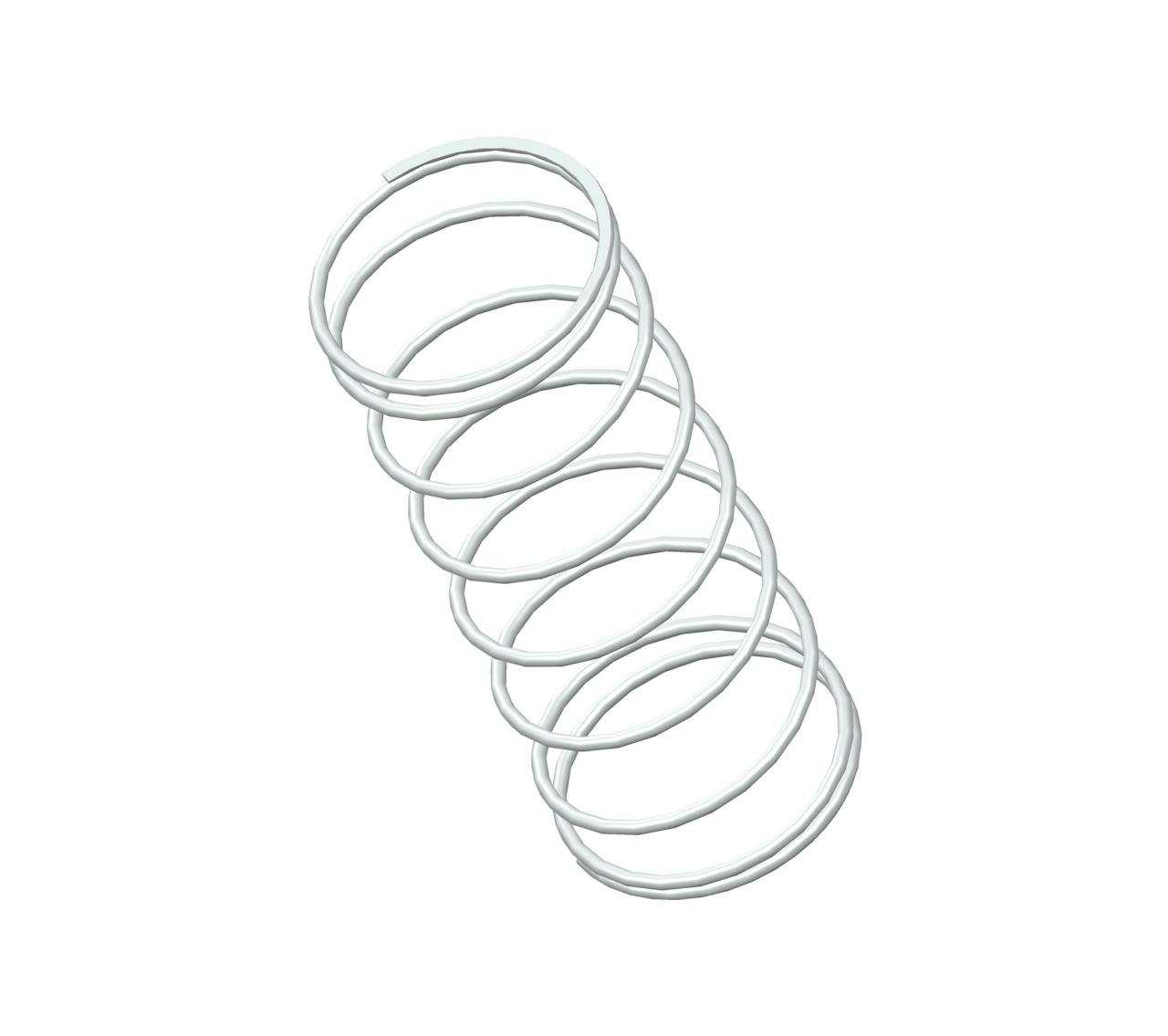

Compression spring manufactured from 302/304 stainless steel with 8.75 coils and closed & ground ends. This spring features an O.D. of 3.687", and an I.D. of 3.333".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-3016
Ends Closed & Ground
Finish None
Free Length 9.38 in
Inside Diameter 3.333 in
Material 302/304 Stainless Steel
Outside Diameter 3.687 in
Part Type Standard
Rate 4.2 lbs/in
SKU S-3016CS
Solid Length 1.55 in
Suggested Max Deflection 7.8 in
Suggested Max Load 33 lbf
Total Coils 8.75
Wire Diameter 0.177 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-3016
Ends Closed & Ground
Finish None
Free Length 238.25 mm
Inside Diameter 84.66 mm
Material 302/304 Stainless Steel
Outside Diameter 93.65 mm
Part Type Standard
Rate 0.74 N/mm
SKU S-3016CS
Solid Length 39.37 mm
Suggested Max Deflection 198.12 mm
Suggested Max Load 146.78 N
Total Coils 8.75
Wire Diameter 4.5 mm
The S-3016CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.177" diameter 302/304 stainless steel, the S-3016 spring design exhibits reliable strength across its 8.75 active coils, withstanding repeated compression cycles with a maximum load of 33 lbf without succumbing to fatigue.

We manufacture the S-3016 design to provide a compression spring that is 9.38" long at rest and provides a consistent rate of 4.2 lbs/in along its recommended maximum of 7.8" deflection. For best results, your application should fully accommodate the inner (3.333") and outer (3.687") diameters of this spring and be designed for its closed & ground end configuration.
