Century Spring

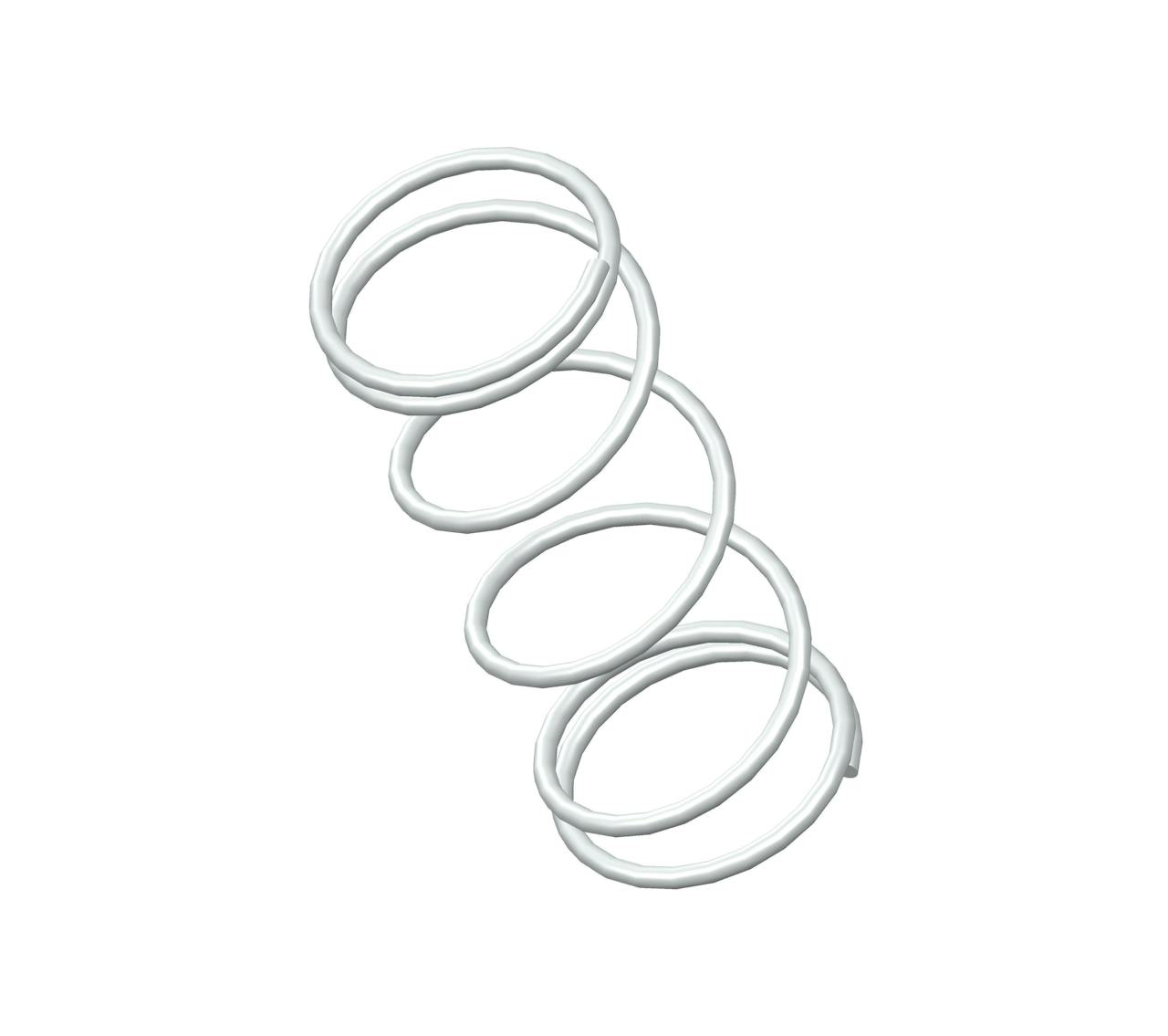

S-294CS - 1.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed ends. This spring features an O.D. of 0.484", and an I.D. of 0.416".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-294
Ends Closed
Finish None
Free Length 1.25 in
Inside Diameter 0.416 in
Material 302/304 Stainless Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 4.6 lbs/in
SKU S-294CS
Solid Length 0.24 in
Suggested Max Deflection 0.67 in
Suggested Max Load 3.1 lbf
Total Coils 6
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-294
Ends Closed
Finish None
Free Length 31.75 mm
Inside Diameter 10.57 mm
Material 302/304 Stainless Steel
Outside Diameter 12.29 mm
Part Type Standard
Rate 0.81 N/mm
SKU S-294CS
Solid Length 6.1 mm
Suggested Max Deflection 17.02 mm
Suggested Max Load 13.79 N
Total Coils 6
Wire Diameter 0.86 mm
The S-294 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-294CS compression spring is designed with a free length of 2.38" total of 9 coils, and a rate of 30 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-294 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
