S-263CS - 1.19" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

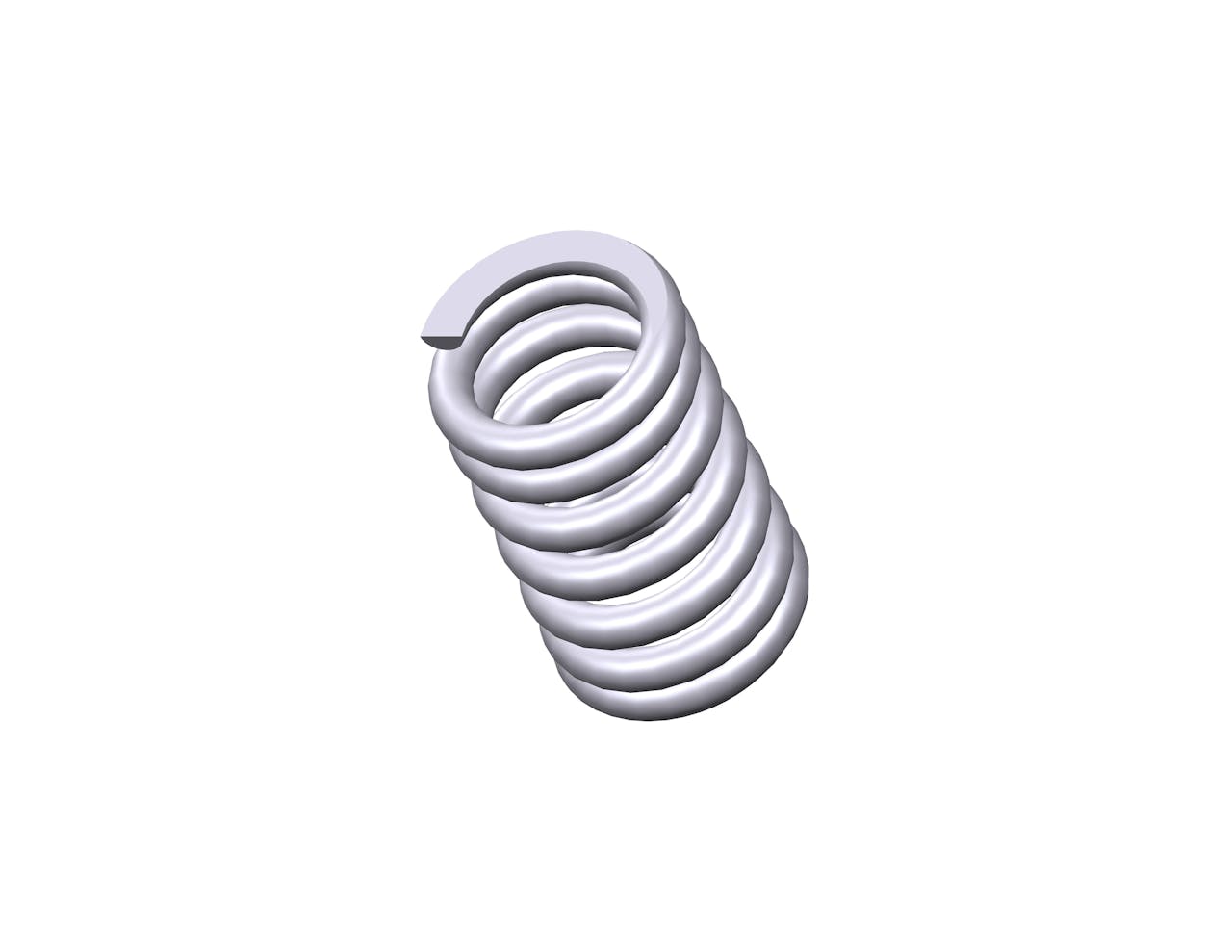

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.734", and an I.D. of 0.494".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-263 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.19 in |
| Inside Diameter | 0.494 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.734 in |
| Part Type | Standard |
| Rate | 228 lbs/in |
| SKU | S-263CS |
| Solid Length | 0.84 in |
| Suggested Max Deflection | 0.29 in |
| Suggested Max Load | 65 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.12 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-263 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 30.23 mm |
| Inside Diameter | 12.55 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 18.64 mm |
| Part Type | Standard |
| Rate | 39.92 N/mm |
| SKU | S-263CS |
| Solid Length | 21.34 mm |
| Suggested Max Deflection | 7.37 mm |
| Suggested Max Load | 289.12 N |
| Total Coils | 7 |
| Wire Diameter | 3.05 mm |
The compression spring S-263CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-263 compression spring design exhibits exceptional tensile strength and resilience.
The S-263 design is manufactured with a free length of 1.19", with an outer diameter of 0.734", an inner diameter of 0.494", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 228 lbs/in.
The S-263CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-263 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-263 design is manufactured with a free length of 1.19", with an outer diameter of 0.734", an inner diameter of 0.494", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 228 lbs/in.
The S-263CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-263 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
