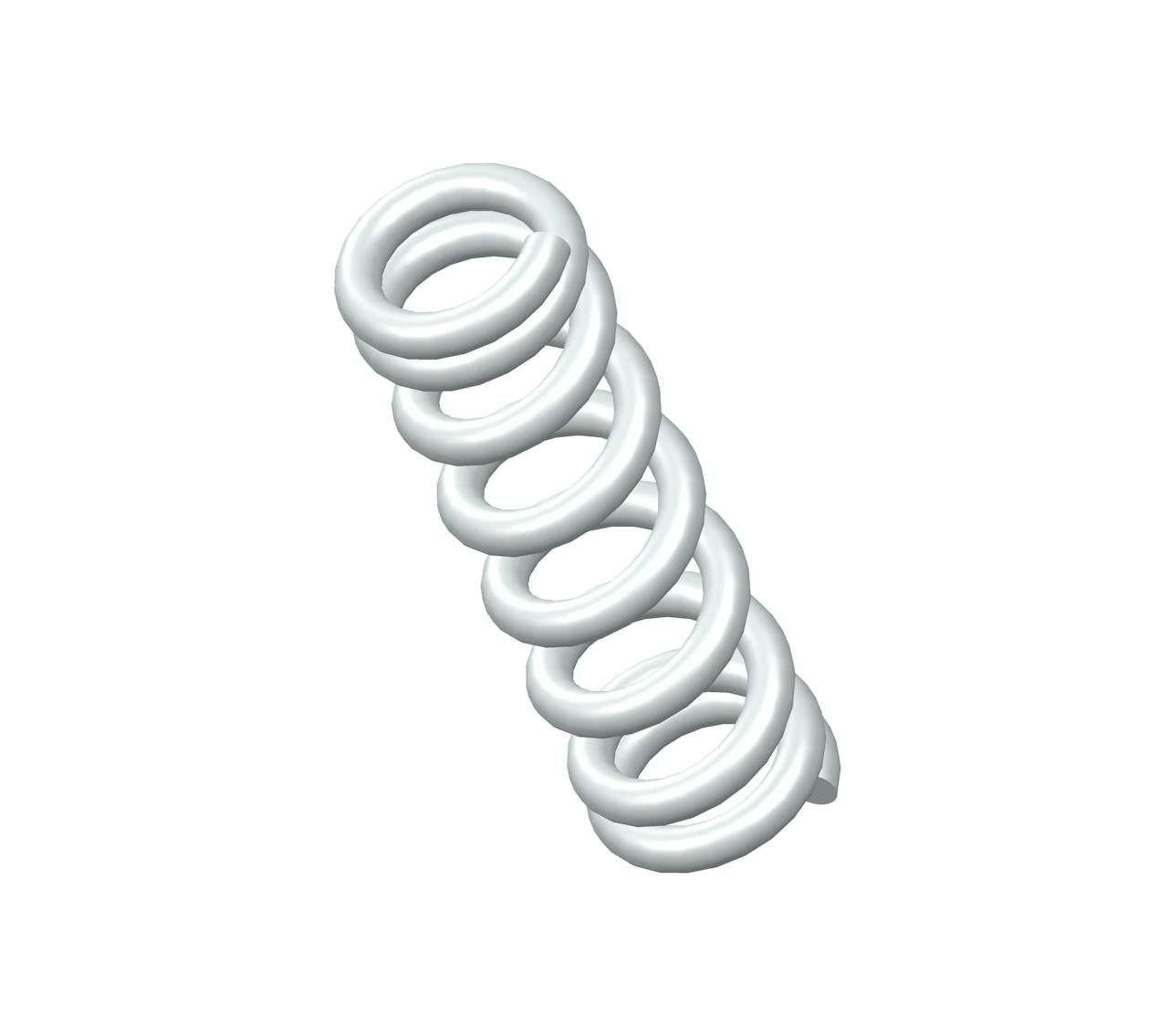

S-236CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 8 coils and closed ends. This spring features an O.D. of 0.14", and an I.D. of 0.088".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-236 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.088 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.14 in |
| Part Type | Standard |
| Rate | 64 lbs/in |
| SKU | S-236CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.07 in |
| Suggested Max Load | 4.4 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-236 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 2.24 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 3.56 mm |
| Part Type | Standard |
| Rate | 11.21 N/mm |
| SKU | S-236CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 1.78 mm |
| Suggested Max Load | 19.57 N |
| Total Coils | 8 |
| Wire Diameter | 0.66 mm |
The compression spring S-236CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-236 compression spring design exhibits exceptional tensile strength and resilience.
The S-236 design is manufactured with a free length of 0.5", with an outer diameter of 0.14", an inner diameter of 0.088", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 64 lbs/in.
The S-236CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-236 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-236 design is manufactured with a free length of 0.5", with an outer diameter of 0.14", an inner diameter of 0.088", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 64 lbs/in.
The S-236CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-236 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
