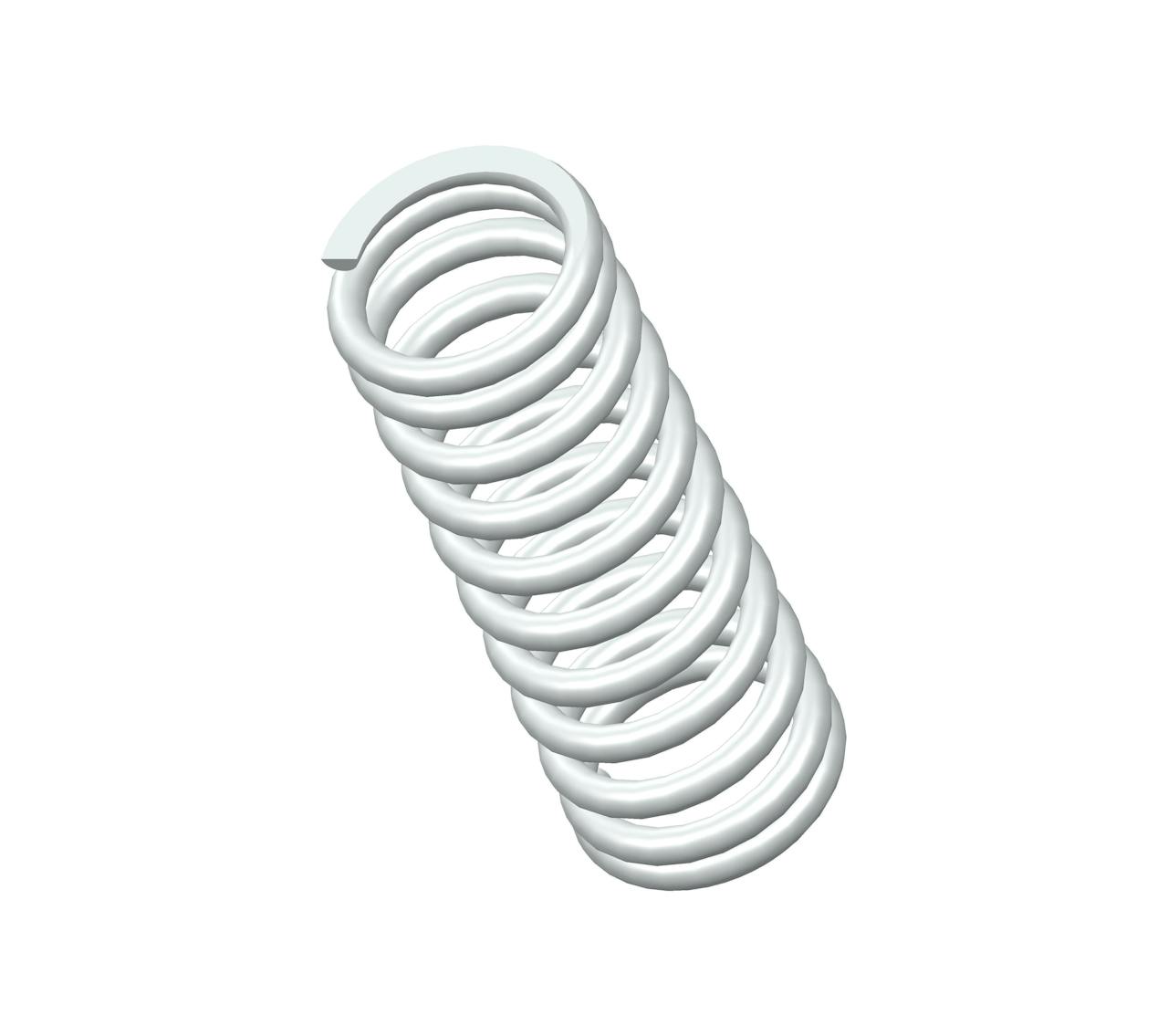

S-211CS - 0.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 11 coils and closed & ground ends. This spring features an O.D. of 0.266", and an I.D. of 0.196".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-211 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.75 in |
| Inside Diameter | 0.196 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.266 in |
| Part Type | Standard |
| Rate | 17 lbs/in |
| SKU | S-211CS |
| Solid Length | 0.39 in |
| Suggested Max Deflection | 0.33 in |
| Suggested Max Load | 5.7 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-211 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 19.05 mm |
| Inside Diameter | 4.98 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 6.76 mm |
| Part Type | Standard |
| Rate | 2.98 N/mm |
| SKU | S-211CS |
| Solid Length | 9.91 mm |
| Suggested Max Deflection | 8.38 mm |
| Suggested Max Load | 25.35 N |
| Total Coils | 11 |
| Wire Diameter | 0.89 mm |
The compression spring S-211CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-211 compression spring design exhibits exceptional tensile strength and resilience.
The S-211 design is manufactured with a free length of 0.75", with an outer diameter of 0.266", an inner diameter of 0.196", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The S-211CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-211 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-211 design is manufactured with a free length of 0.75", with an outer diameter of 0.266", an inner diameter of 0.196", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 17 lbs/in.
The S-211CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-211 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
