S-1700CS - 0.82" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

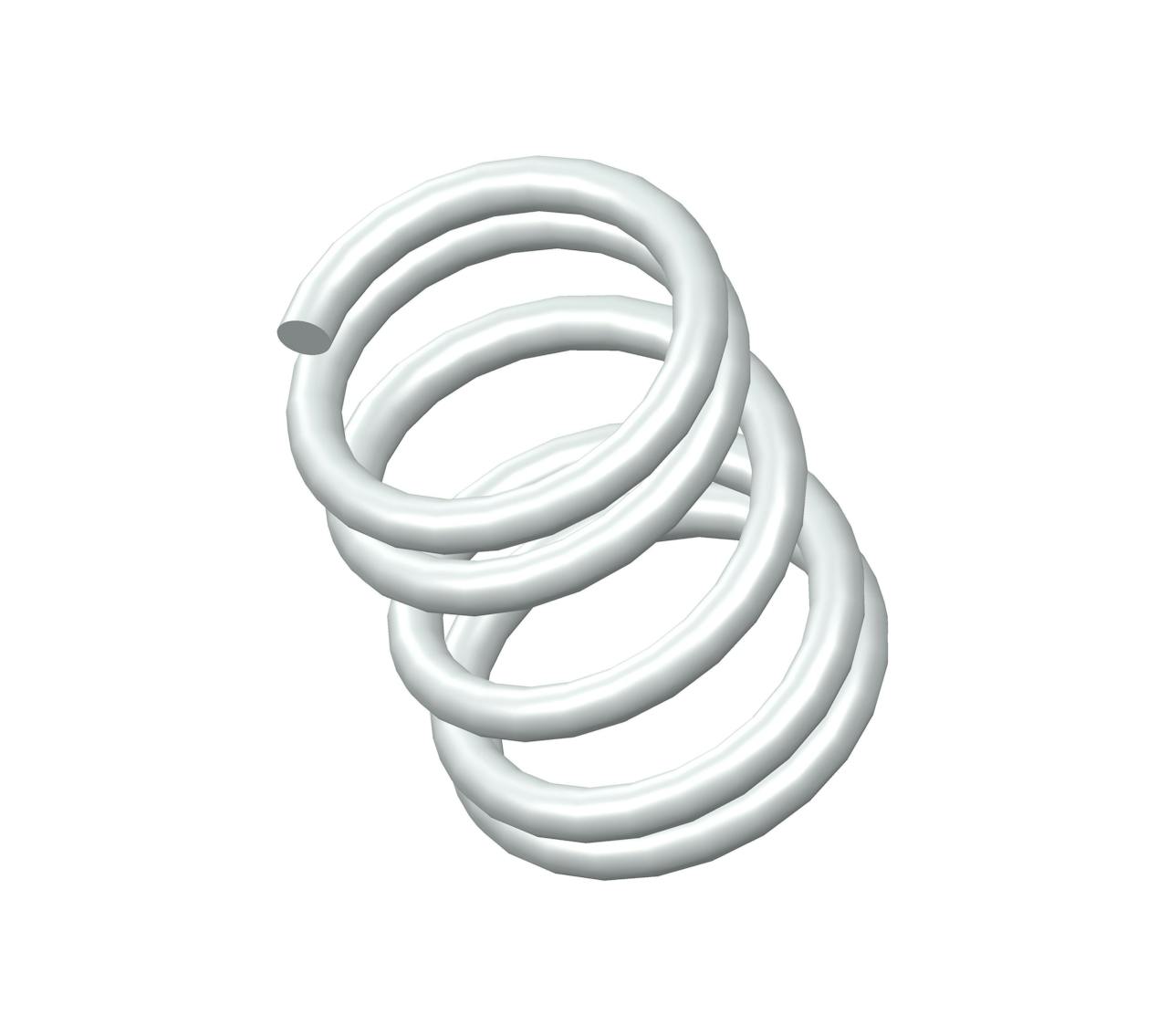

Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 0.609", and an I.D. of 0.465".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1700 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.82 in |
| Inside Diameter | 0.465 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.609 in |
| Part Type | Standard |
| Rate | 72 lbs/in |
| SKU | S-1700CS |
| Solid Length | 0.43 in |
| Suggested Max Deflection | 0.27 in |
| Suggested Max Load | 19 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1700 |
| Ends | Closed |
| Finish | None |
| Free Length | 20.83 mm |
| Inside Diameter | 11.81 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 15.47 mm |
| Part Type | Standard |
| Rate | 12.61 N/mm |
| SKU | S-1700CS |
| Solid Length | 10.92 mm |
| Suggested Max Deflection | 6.86 mm |
| Suggested Max Load | 84.51 N |
| Total Coils | 5 |
| Wire Diameter | 1.83 mm |
The S-1700 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1700CS compression spring is designed with a free length of 0.75" total of 11 coils, and a rate of 2.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1700 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1700CS compression spring is designed with a free length of 0.75" total of 11 coils, and a rate of 2.4 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1700 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
