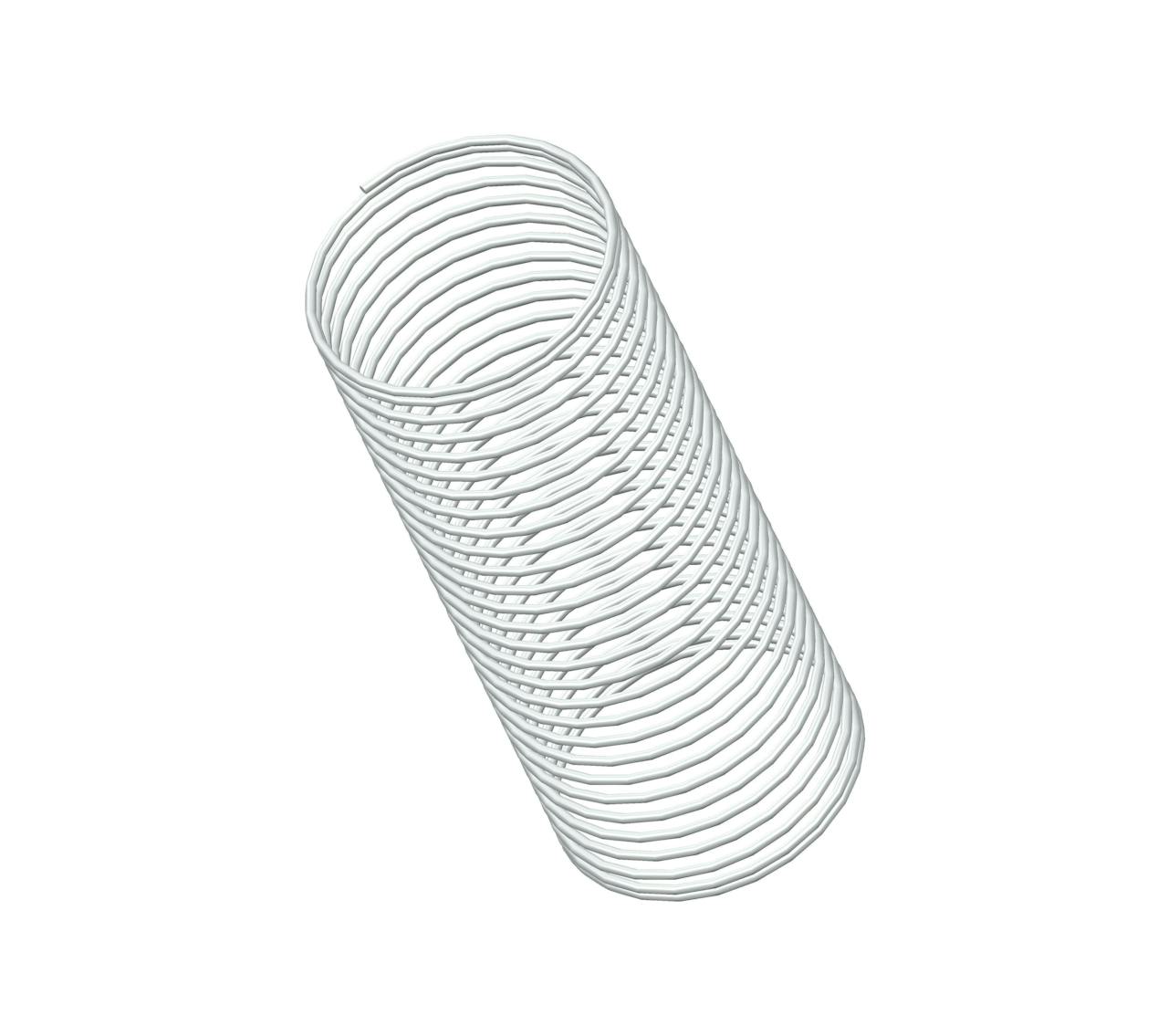

S-1691CS - 1.41" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 28.8 coils and closed ends. This spring features an O.D. of 0.562", and an I.D. of 0.526".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1691 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.41 in |
| Inside Diameter | 0.526 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.562 in |
| Part Type | Standard |
| Rate | 0.03 lbs/in |
| SKU | S-1691CS |
| Solid Length | 0.54 in |
| Suggested Max Deflection | 0.87 in |
| Suggested Max Load | 0.03 lbf |
| Total Coils | 28.8 |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1691 |
| Ends | Closed |
| Finish | None |
| Free Length | 35.81 mm |
| Inside Diameter | 13.36 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 14.27 mm |
| Part Type | Standard |
| Rate | 0.01 N/mm |
| SKU | S-1691CS |
| Solid Length | 13.72 mm |
| Suggested Max Deflection | 22.1 mm |
| Suggested Max Load | 0.13 N |
| Total Coils | 28.8 |
| Wire Diameter | 0.46 mm |
The compression spring S-1691CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1691 compression spring design exhibits exceptional tensile strength and resilience.
The S-1691 design is manufactured with a free length of 1.41", with an outer diameter of 0.562", an inner diameter of 0.526", and a total of 28.8 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.03 lbs/in.
The S-1691CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1691 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
