Century Spring

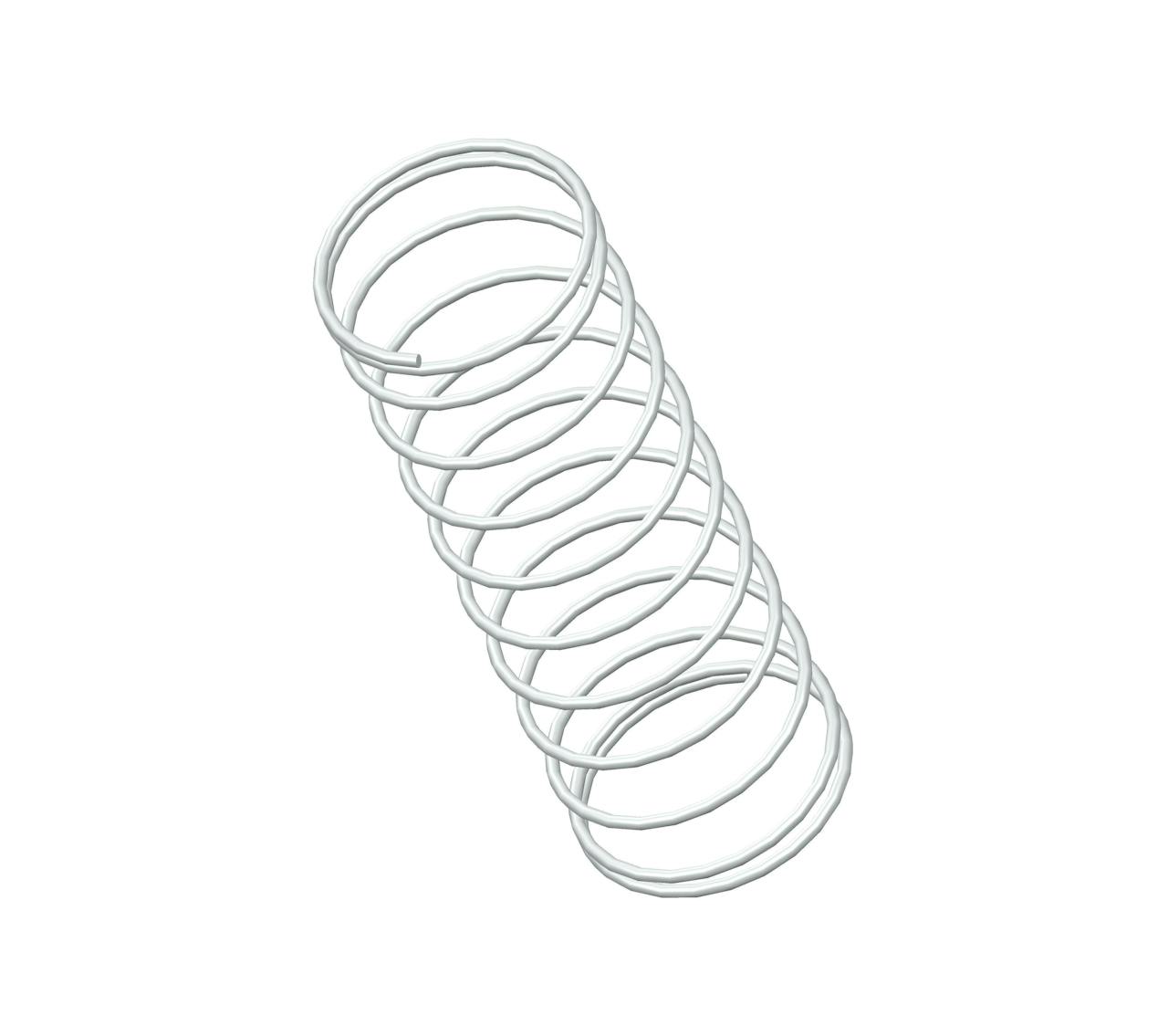

S-1682CS - 1.2" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11.5 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.368".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1682
Ends Closed
Finish None
Free Length 1.2 in
Inside Diameter 0.368 in
Material 302/304 Stainless Steel
Outside Diameter 0.406 in
Part Type Standard
Rate 0.3 lbs/in
SKU S-1682CS
Solid Length 0.24 in
Suggested Max Deflection 0.97 in
Suggested Max Load 0.29 lbf
Total Coils 11.5
Wire Diameter 0.019 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1682
Ends Closed
Finish None
Free Length 30.48 mm
Inside Diameter 9.35 mm
Material 302/304 Stainless Steel
Outside Diameter 10.31 mm
Part Type Standard
Rate 0.05 N/mm
SKU S-1682CS
Solid Length 6.1 mm
Suggested Max Deflection 24.64 mm
Suggested Max Load 1.29 N
Total Coils 11.5
Wire Diameter 0.48 mm
The S-1682CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.019" diameter 302/304 stainless steel, the S-1682 spring design exhibits reliable strength across its 11.5 active coils, withstanding repeated compression cycles with a maximum load of 0.29 lbf without succumbing to fatigue.

We manufacture the S-1682 design to provide a compression spring that is 1.2" long at rest and provides a consistent rate of 0.3 lbs/in along its recommended maximum of 0.97" deflection. For best results, your application should fully accommodate the inner (0.368") and outer (0.406") diameters of this spring and be designed for its closed end configuration.
