Century Spring

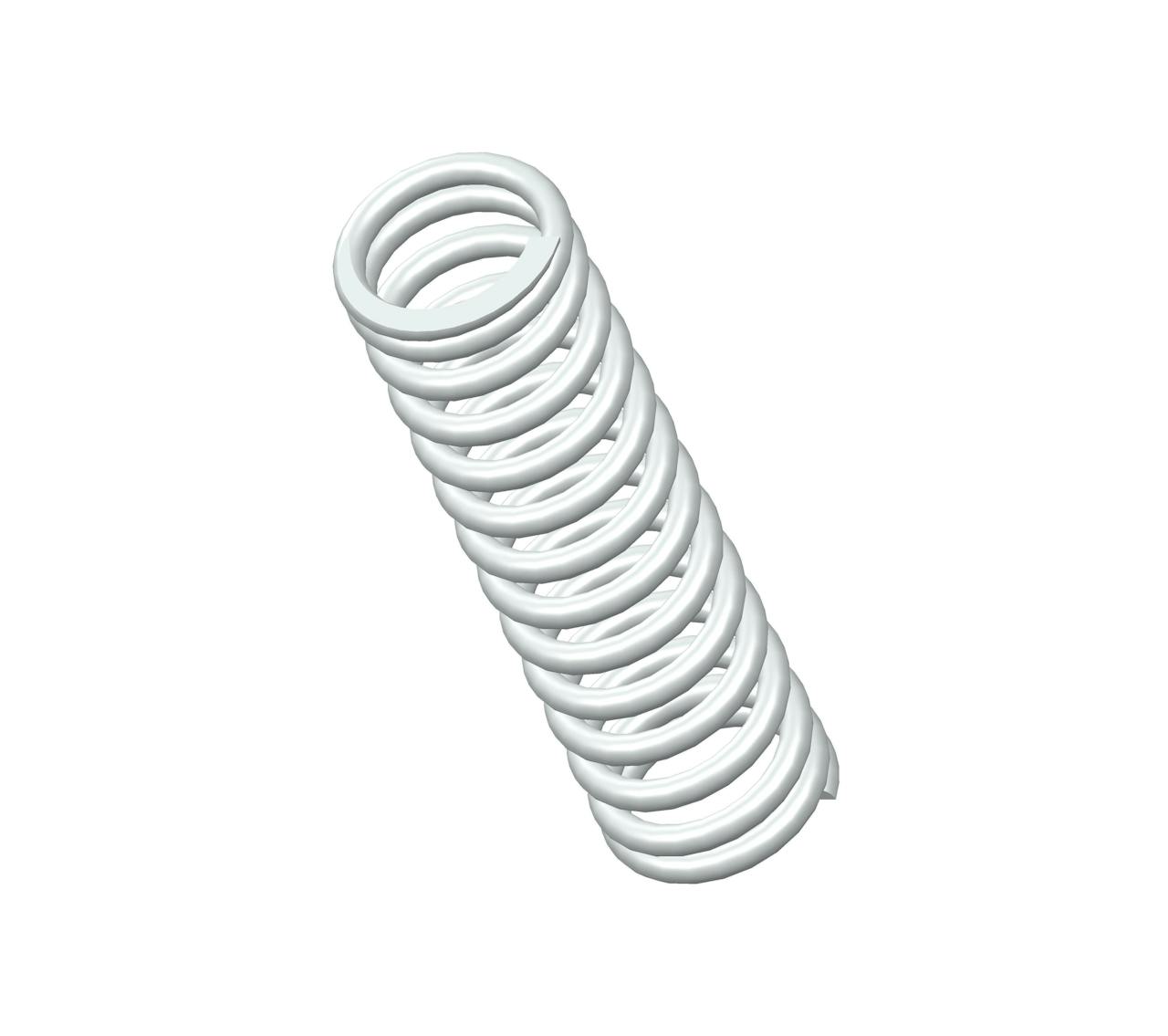

S-1675CS - 4.13" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 13.5 coils and closed & ground ends. This spring features an O.D. of 1.125", and an I.D. of 0.827".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1675
Ends Closed & Ground
Finish None
Free Length 4.13 in
Inside Diameter 0.827 in
Material 302/304 Stainless Steel
Outside Diameter 1.125 in
Part Type Standard
Rate 56 lbs/in
SKU S-1675CS
Solid Length 1.996 in
Suggested Max Deflection 1.377 in
Suggested Max Load 77 lbf
Total Coils 13.5
Wire Diameter 0.148 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1675
Ends Closed & Ground
Finish None
Free Length 104.9 mm
Inside Diameter 21.01 mm
Material 302/304 Stainless Steel
Outside Diameter 28.58 mm
Part Type Standard
Rate 9.81 N/mm
SKU S-1675CS
Solid Length 50.7 mm
Suggested Max Deflection 34.98 mm
Suggested Max Load 342.5 N
Total Coils 13.5
Wire Diameter 3.76 mm
The S-1675 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The S-1675CS compression spring is designed with a free length of 2.5" total of 5.5 coils, and a rate of 0.55 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The S-1675 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
