S-1671CS - 2.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

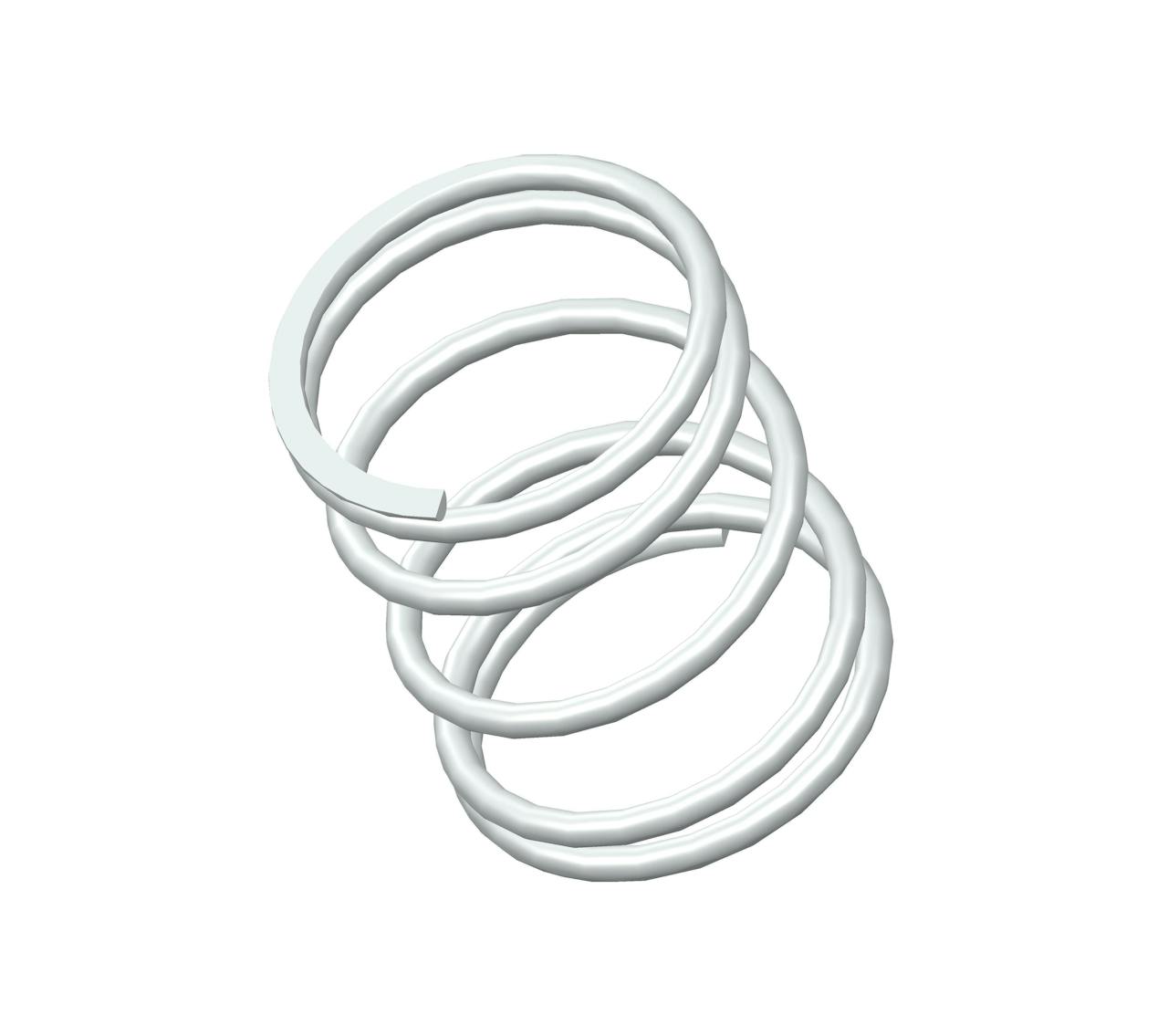

Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 1.781", and an I.D. of 1.511".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1671 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.25 in |
| Inside Diameter | 1.511 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.781 in |
| Part Type | Standard |
| Rate | 27 lbs/in |
| SKU | S-1671CS |
| Solid Length | 0.74 in |
| Suggested Max Deflection | 1.4 in |
| Suggested Max Load | 39 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.135 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1671 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 57.15 mm |
| Inside Diameter | 38.38 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 45.24 mm |
| Part Type | Standard |
| Rate | 4.73 N/mm |
| SKU | S-1671CS |
| Solid Length | 18.8 mm |
| Suggested Max Deflection | 35.56 mm |
| Suggested Max Load | 173.47 N |
| Total Coils | 5.5 |
| Wire Diameter | 3.43 mm |
The compression spring S-1671CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1671 compression spring design exhibits exceptional tensile strength and resilience.
The S-1671 design is manufactured with a free length of 2.25", with an outer diameter of 1.781", an inner diameter of 1.511", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The S-1671CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1671 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1671 design is manufactured with a free length of 2.25", with an outer diameter of 1.781", an inner diameter of 1.511", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 27 lbs/in.
The S-1671CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1671 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
