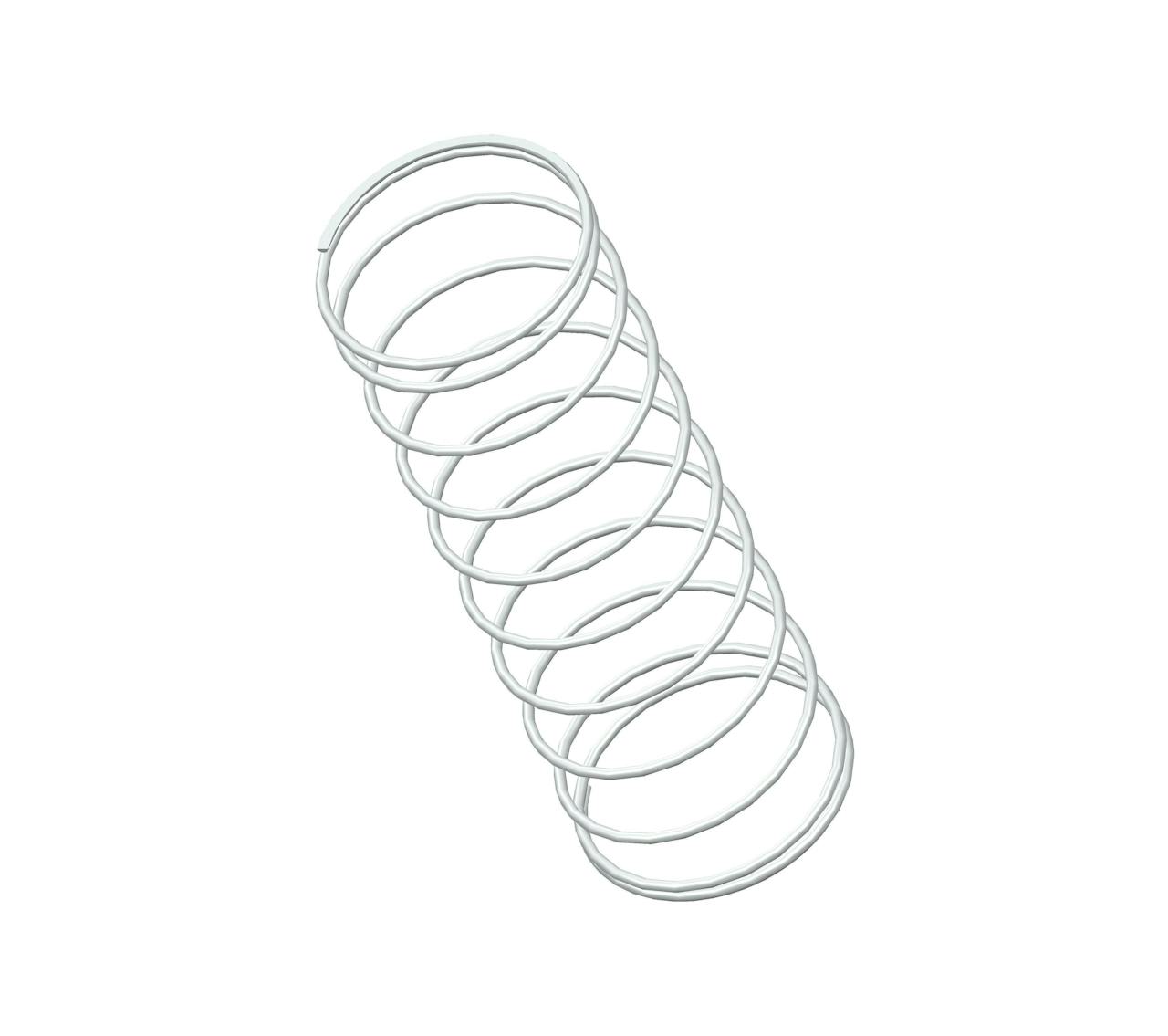

S-165CS - 3.5" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 11 coils and closed & ground ends. This spring features an O.D. of 1.188", and an I.D. of 1.094".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-165 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.5 in |
| Inside Diameter | 1.094 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.188 in |
| Part Type | Standard |
| Rate | 0.46 lbs/in |
| SKU | S-165CS |
| Solid Length | 0.52 in |
| Suggested Max Deflection | 3 in |
| Suggested Max Load | 1.4 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-165 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 88.9 mm |
| Inside Diameter | 27.79 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 30.18 mm |
| Part Type | Standard |
| Rate | 0.08 N/mm |
| SKU | S-165CS |
| Solid Length | 13.21 mm |
| Suggested Max Deflection | 76.2 mm |
| Suggested Max Load | 6.23 N |
| Total Coils | 11 |
| Wire Diameter | 1.19 mm |
The S-165 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-165CS compression spring is designed with a free length of 10.4" total of 10.1 coils, and a rate of 3.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-165 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-165CS compression spring is designed with a free length of 10.4" total of 10.1 coils, and a rate of 3.1 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-165 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
