Century Spring

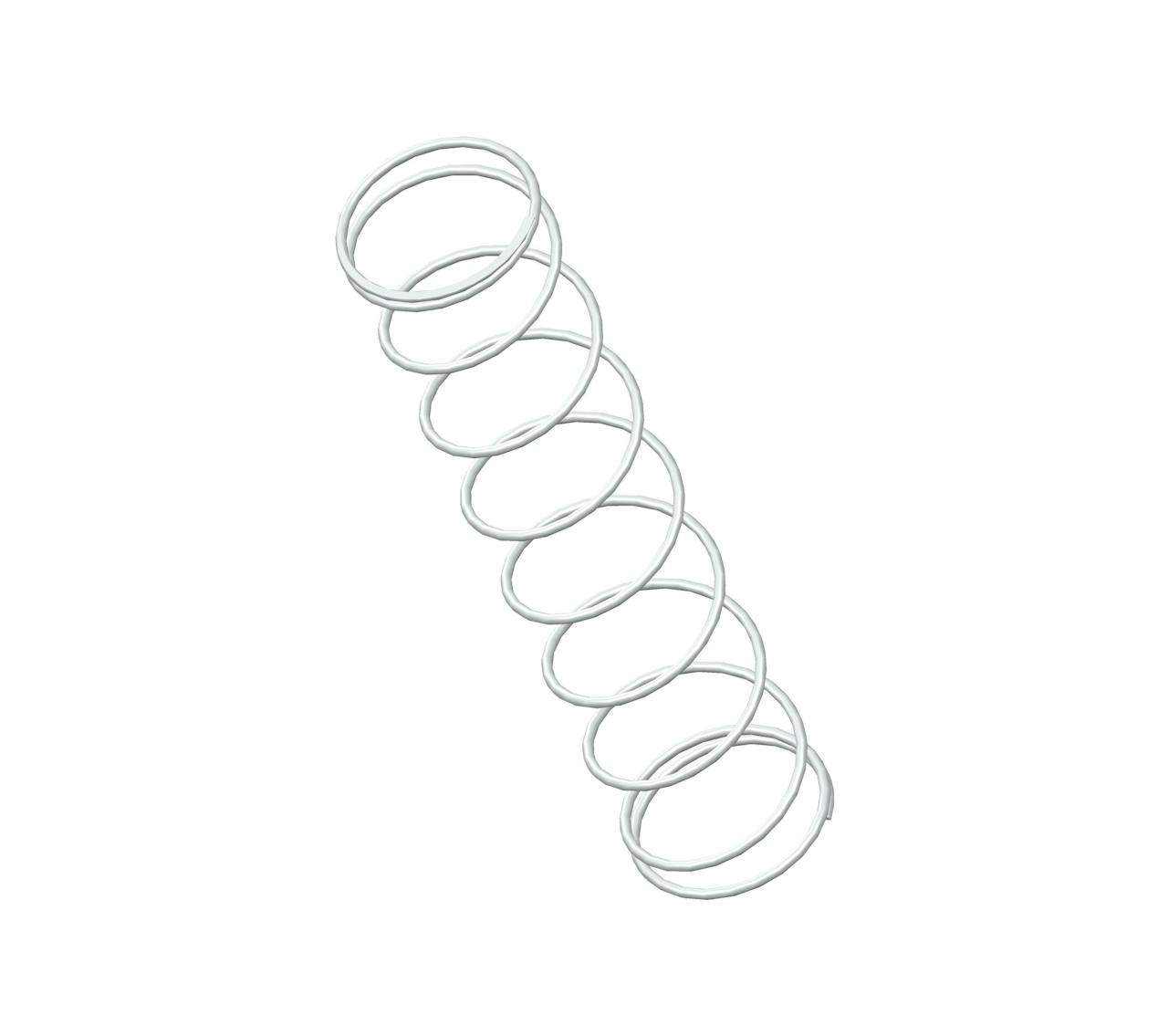

S-1659CS - 10.4" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10.1 coils and closed & ground ends. This spring features an O.D. of 2.296", and an I.D. of 2.058".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1659
Ends Closed & Ground
Finish None
Free Length 10.4 in
Inside Diameter 2.058 in
Material 302/304 Stainless Steel
Outside Diameter 2.296 in
Part Type Standard
Rate 3.1 lbs/in
SKU S-1659CS
Solid Length 1.214 in
Suggested Max Deflection 7.181 in
Suggested Max Load 22 lbf
Total Coils 10.1
Wire Diameter 0.12 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1659
Ends Closed & Ground
Finish None
Free Length 264.16 mm
Inside Diameter 52.27 mm
Material 302/304 Stainless Steel
Outside Diameter 58.32 mm
Part Type Standard
Rate 0.54 N/mm
SKU S-1659CS
Solid Length 30.84 mm
Suggested Max Deflection 182.4 mm
Suggested Max Load 97.86 N
Total Coils 10.1
Wire Diameter 3.05 mm
The compression spring S-1659CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1659 compression spring design exhibits exceptional tensile strength and resilience.

The S-1659 design is manufactured with a free length of 10.4", with an outer diameter of 2.296", an inner diameter of 2.058", and a total of 10.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.1 lbs/in.

The S-1659CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-1659 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
