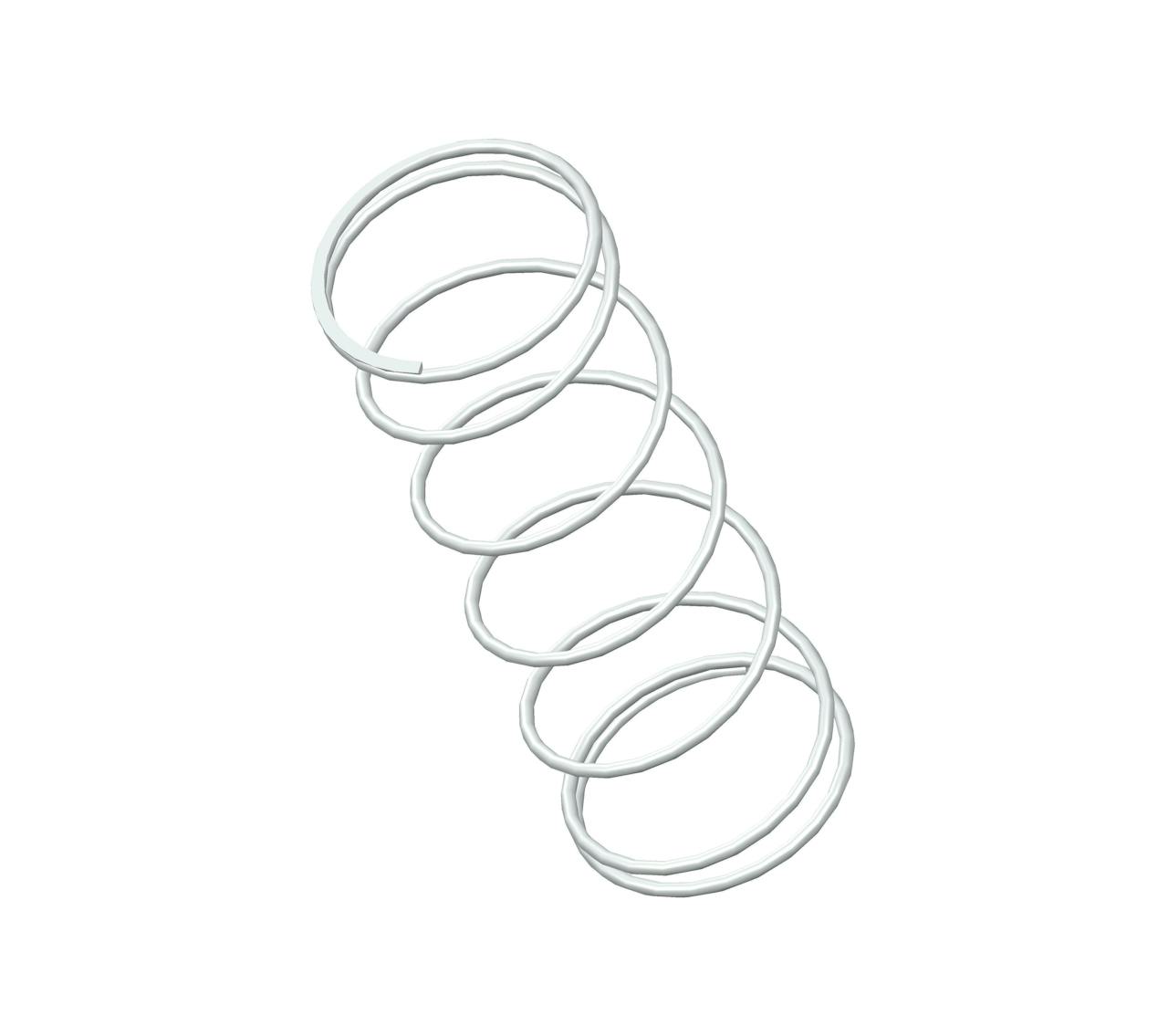

S-1645CS - 5.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed & ground ends. This spring features an O.D. of 1.968", and an I.D. of 1.774".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1645 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 5.5 in |
| Inside Diameter | 1.774 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.968 in |
| Part Type | Standard |
| Rate | 3.1 lbs/in |
| SKU | S-1645CS |
| Solid Length | 0.73 in |
| Suggested Max Deflection | 4.6 in |
| Suggested Max Load | 14 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.097 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1645 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 139.7 mm |
| Inside Diameter | 45.06 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 49.99 mm |
| Part Type | Standard |
| Rate | 0.54 N/mm |
| SKU | S-1645CS |
| Solid Length | 18.54 mm |
| Suggested Max Deflection | 116.84 mm |
| Suggested Max Load | 62.27 N |
| Total Coils | 7.5 |
| Wire Diameter | 2.46 mm |
The S-1645 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1645CS compression spring is designed with a free length of 2.06" total of 6.25 coils, and a rate of 28 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1645 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1645CS compression spring is designed with a free length of 2.06" total of 6.25 coils, and a rate of 28 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1645 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
