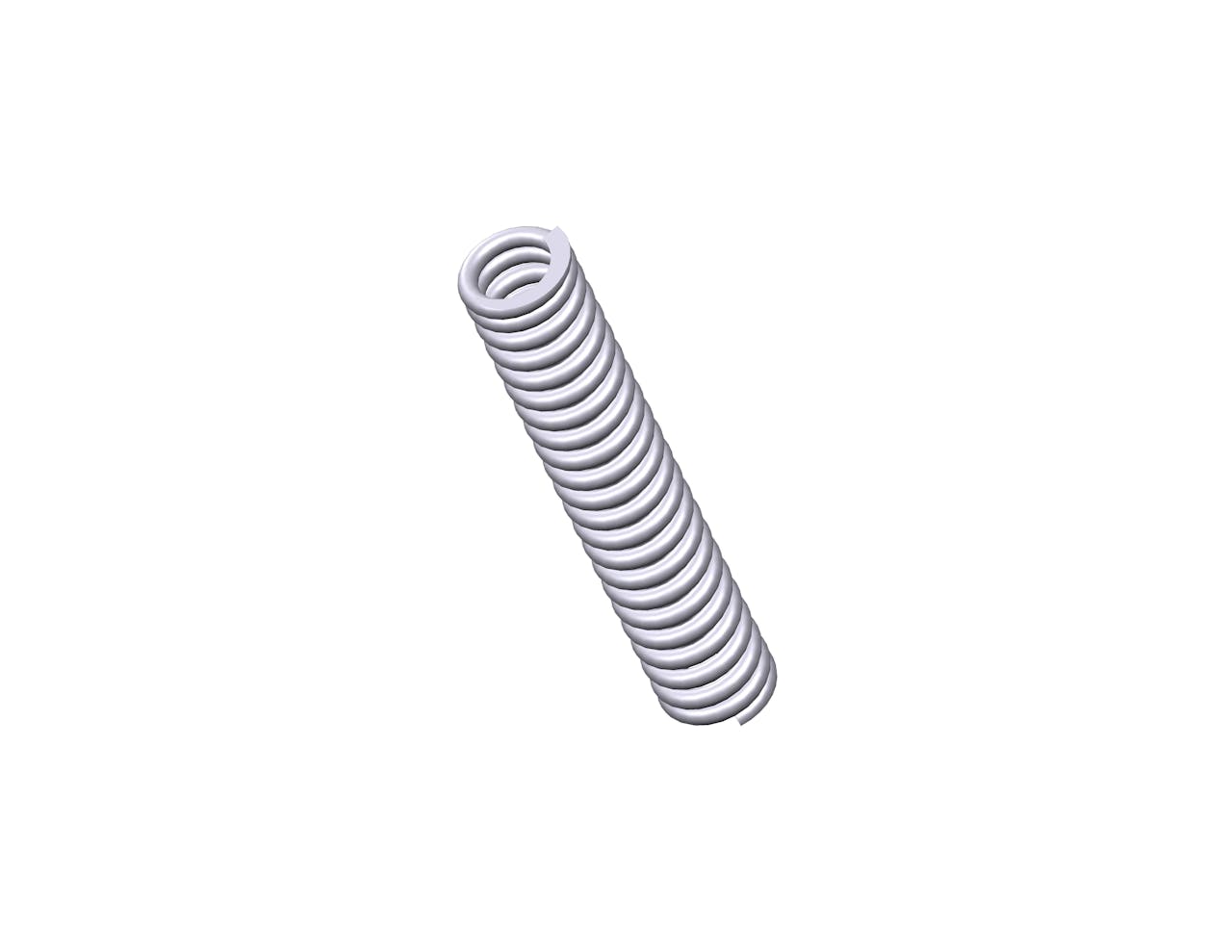

S-1642CS - 9.19" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 22.3 coils and closed & ground ends. This spring features an O.D. of 1.656", and an I.D. of 1.092".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1642 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 9.19 in |
| Inside Diameter | 1.092 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.656 in |
| Part Type | Standard |
| Rate | 154 lbs/in |
| SKU | S-1642CS |
| Solid Length | 6.27 in |
| Suggested Max Deflection | 1.9 in |
| Suggested Max Load | 286 lbf |
| Total Coils | 22.3 |
| Wire Diameter | 0.282 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1642 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 233.43 mm |
| Inside Diameter | 27.74 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 42.06 mm |
| Part Type | Standard |
| Rate | 26.97 N/mm |
| SKU | S-1642CS |
| Solid Length | 159.26 mm |
| Suggested Max Deflection | 48.26 mm |
| Suggested Max Load | 1272.13 N |
| Total Coils | 22.3 |
| Wire Diameter | 7.16 mm |
The S-1642 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1642CS compression spring is designed with a free length of 4.09" total of 6.75 coils, and a rate of 41 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1642 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1642CS compression spring is designed with a free length of 4.09" total of 6.75 coils, and a rate of 41 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1642 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
