S-1615CS - 4" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

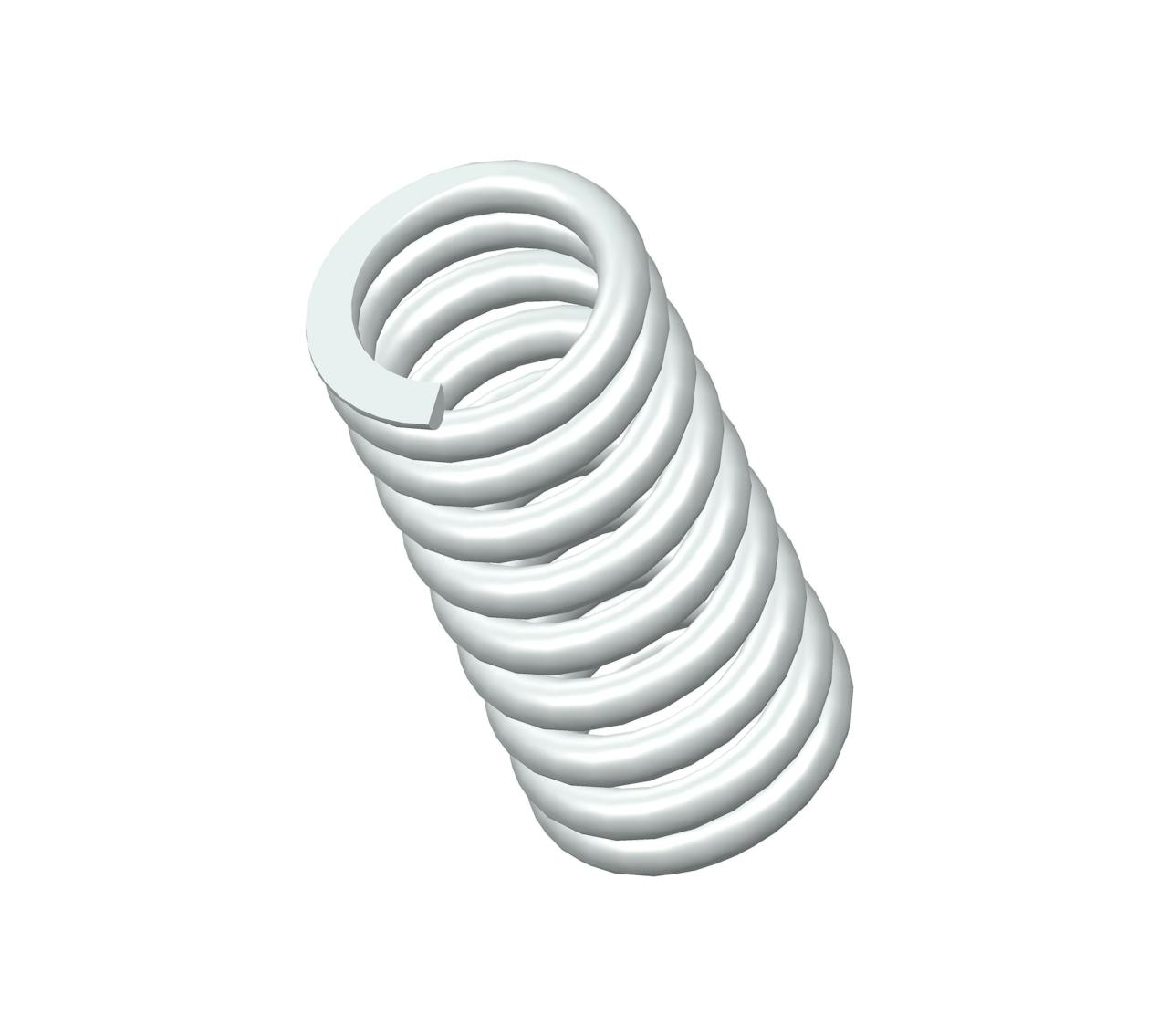

Compression spring manufactured from 302/304 stainless steel with 9.2 coils and closed & ground ends. This spring features an O.D. of 1.89", and an I.D. of 1.324".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1615
Ends Closed & Ground
Finish None
Free Length 4 in
Inside Diameter 1.324 in
Material 302/304 Stainless Steel
Outside Diameter 1.89 in
Part Type Standard
Rate 263 lbs/in
SKU S-1615CS
Solid Length 2.603 in
Suggested Max Deflection 0.967 in
Suggested Max Load 254 lbf
Total Coils 9.2
Wire Diameter 0.282 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1615
Ends Closed & Ground
Finish None
Free Length 101.6 mm
Inside Diameter 33.63 mm
Material 302/304 Stainless Steel
Outside Diameter 48.01 mm
Part Type Standard
Rate 46.05 N/mm
SKU S-1615CS
Solid Length 66.12 mm
Suggested Max Deflection 24.56 mm
Suggested Max Load 1129.79 N
Total Coils 9.2
Wire Diameter 7.16 mm
The S-1615CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.282" diameter 302/304 stainless steel, the S-1615 spring design exhibits reliable strength across its 9.2 active coils, withstanding repeated compression cycles with a maximum load of 254 lbf without succumbing to fatigue.

We manufacture the S-1615 design to provide a compression spring that is 4" long at rest and provides a consistent rate of 263 lbs/in along its recommended maximum of 0.967" deflection. For best results, your application should fully accommodate the inner (1.324") and outer (1.89") diameters of this spring and be designed for its closed & ground end configuration.
